Stainless Steel Pipe Fittings

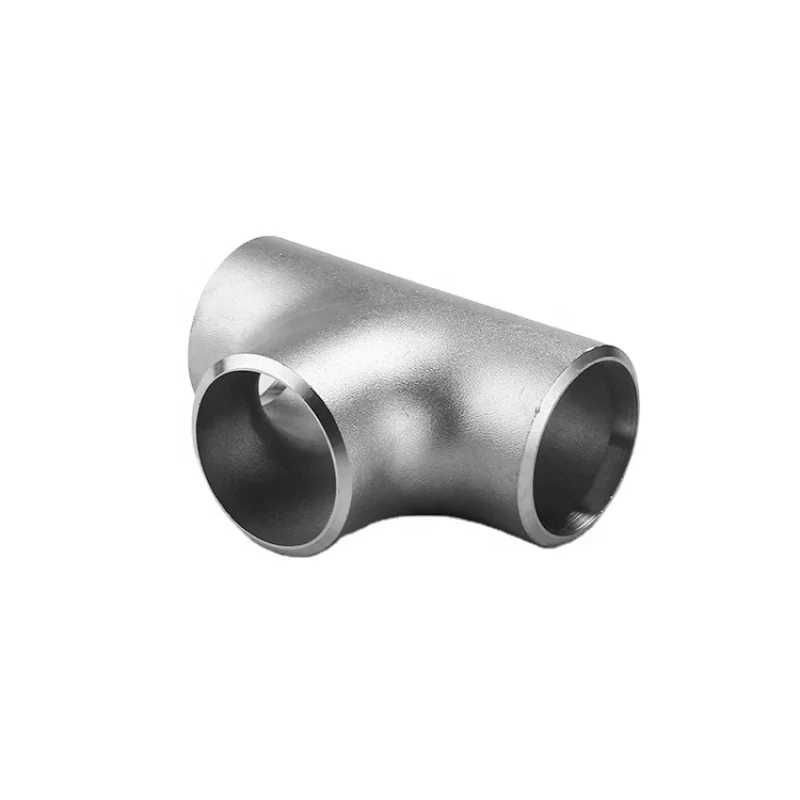

Stainless Steel Butt Welding Reducing tee
Application:
A reducing tee is a buttweld fitting used to branch pipeline.If the branch pipe size is smaller than main pipe,then a reduding .Generally the branch bore size is 2/3 smaller than main pipe bore size,if the size reduction is larger than 2/3,then it is better to add a weldolet or other reinforced branch connection,to keep smooth flow .The reducing cross has almost the same property as equal tee,but can branch pipeline to 4 way.Same as other butt welding fittings,butt welding tee is also seamless up to 24 inches, welded for tee sizes above 24 inches.Buttweld reducing tees are manufactured according to ASME B16.9 (carbon and alloy) and MSS SP 43 (stainless steel and nickel alloy).
Specification:
ASME B16.9: Reducing Tees

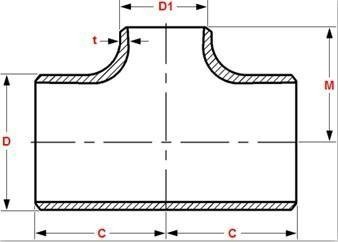

Dimensions of Reducing Tees and Reducing Crosses - ASME B16.9
| NPS | OD at Bevel | Center to End | ||
| Run | Outlet | Run, C | Outlet, M | |
| 1/2 x 3/8 | 21.3 | 17.3 | 25 | 25 |
| 1/2 x 1/4 | 13.7 | 25 | ||
| 3/4 x 1/2 | 26.7 | 21.3 | 29 | 29 |
| 3/4 x 3/8 | 17.3 | 29 | ||
| 1 x 3/4 | 33.4 | 26.7 | 38 | 38 |
| 1 x 1/2 | 21.3 | 38 | ||
| 1-1/4 x 1 | 42.2 | 33.4 | 48 | 48 |
| 1-1/4 x 3/4 | 26.7 | 48 | ||
| 1-1/4 x 1/2 | 21.3 | 48 | ||
| 1-1/2 x 1-1/4 | 48.3 | 42.2 | 57 | 57 |
| 1-1/2 x 1 | 33.4 | 57 | ||
| 1-1/2 x 3/4 | 26.7 | 57 | ||
| 1-1/2 x 1/2 | 21.3 | 57 | ||
| 2 x 1-1/2 | 60.3 | 48.3 | 64 | 60 |
| 2 x 1-1/4 | 42.2 | 57 | ||
| 2 x 1 | 33.4 | 51 | ||
| 2 x 3/4 | 26.7 | 44 | ||
| 2-1/2 x 2 | 73 | 60.3 | 76 | 70 |
| 2-1/2 x 1-1/2 | 48.3 | 67 | ||
| 2-1/2 x1-1/4 | 42.2 | 64 | ||
| 2-1/2 x 1 | 33.4 | 57 | ||
| 3 x 2-1/2 | 88.9 | 73 | 86 | 83 |
| 3 x 2 | 60.3 | 76 | ||
| 3 x 1-1/2 | 48.3 | 73 | ||
| 3 x 1-1/4 | 42.2 | 70 | ||
| 3-1/2 x 3 | 101.6 | 88.9 | 95 | 92 |
| 3-1/2 x 2-1/2 | 73 | 89 | ||
| 3-1/2 x 2 | 60.3 | 83 | ||
| 3-1/2 x 1-1/2 | 48.3 | 79 | ||
| 4 x 3-1/2 | 114.3 | 101.6 | 105 | 102 |
| 4 x 3 | 88.9 | 98 | ||
| 4 x 2-1/2 | 73 | 95 | ||
| 4 x 2 | 60.3 | 89 | ||
| 4 x 1-1/2 | 48.3 | 86 | ||
| 5 x 4 | 141.3 | 114.3 | 124 | 117 |
| 5 x 3-1/2 | 101.6 | 114 | ||
| 5 x 3 | 88.9 | 111 | ||
| 5 x 2-1/2 | 73 | 108 | ||
| 5 x 2 | 60.3 | 105 | ||
| 6 x 5 | 168.3 | 141.3 | 143 | 137 |
| 6 x 4 | 114.3 | 130 | ||
| 6 x 3-1/2 | 101.6 | 127 | ||
| 6 x 3 | 88.9 | 124 | ||
| 6 x 2-1/2 | 73 | 121 | ||
| 8 x 6 | 219.1 | 168.3 | 178 | 168 |
| 8 x 5 | 141.3 | 162 | ||
| 8 x 4 | 114.3 | 156 | ||
| 8 x 3-1/2 | 101.6 | 152 | ||
| 10 x 8 | 273 | 219.1 | 216 | 203 |
| 10 x 6 | 168.3 | 194 | ||
| 10 x 5 | 141.3 | 191 | ||
| 10 x 4 | 114.3 | 184 | ||
| 12 x 10 | 323.8 | 273 | 254 | 241 |
| 12 x 8 | 219.1 | 229 | ||
| 12 x 12 x 6 | 168.3 | 219 | ||
| 12 x 5 | 141.3 | 216 | ||
| 14 x 12 | 355.6 | 323.8 | 279 | 270 |
| 14 x 10 | 273 | 257 | ||
| 14 x 8 | 219.1 | 248 | ||
| 14 x 6 | 168.3 | 238 | ||
| 16 x 14 | 406.4 | 355.6 | 305 | 305 |
| 16 x 12 | 323.8 | 295 | ||
| 16 x 10 | 273 | 283 | ||
| 16 x 8 | 219.1 | 273 | ||
| 16 x 6 | 168.3 | 264 | ||
| 18 x 16 | 457 | 406.4 | 343 | 330 |
| 18 x 14 | 355.6 | 330 | ||
| 18 x 12 | 323.8 | 321 | ||
| 18 x 10 | 273 | 308 | ||
| 18 x 8 | 219.1 | 298 | ||
| 20 x 18 | 508 | 457 | 381 | 368 |
| 20 x 16 | 406.4 | 356 | ||
| 20 x 14 | 355.6 | 356 | ||
| 20 x 12 | 323.8 | 346 | ||
| 20 x 10 | 273 | 333 | ||
| 20 x 8 | 219.1 | 324 | ||
| 22 x 20 | 559 | 508 | 419 | 406 |
| 22 x 18 | 457 | 394 | ||
| 22 x 16 | 406.4 | 381 | ||
| 22 x 14 | 355.6 | 381 | ||
| 22 x 12 | 323.8 | 371 | ||
| 22 x 10 | 272 | 359 | ||
| 24 x 22 | 610 | 559 | 432 | 432 |
| 24 x 20 | 508 | 432 | ||
| 24 x 18 | 457 | 419 | ||
| 24 x 16 | 406.4 | 406 | ||
| 24 x 14 | 355.6 | 406 | ||
| 24 x 12 | 323.8 | 397 | ||
| 24 x 10 | 273 | 384 | ||
| 26 x 24 | 660 | 610 | 495 | 483 |
| 26 x 22 | 559 | 470 | ||
| 26 x 20 | 508 | 457 | ||
| 26 x18 | 457 | 444 | ||
| 26 x 16 | 406.4 | 432 | ||
| 26 x 14 | 355.6 | 432 | ||
| 26 x 12 | 323.8 | 422 | ||
| 28 x 26 | 711 | 660 | 521 | 521 |
| 28 x 24 | 610 | 508 | ||
| 28 x 22 | 559 | 495 | ||
| 28 x 20 | 508 | 483 | ||
| 28 x 18 | 457 | 470 | ||
| 28 x 16 | 406.4 | 457 | ||
| 28 x 14 | 355.6 | 457 | ||
| 28 x 12 | 323.8 | 448 | ||
| 30 x 28 | 762 | 711 | 559 | 546 |
| 30 x 26 | 660 | 546 | ||
| 30 x 24 | 610 | 533 | ||
| 30 x 22 | 559 | 521 | ||
| 30 x 20 | 508 | 508 | ||
| 30 x 18 | 457 | 495 | ||
| 30 x 16 | 406.4 | 483 | ||
| 30 x 14 | 355.6 | 483 | ||
| 30 x 12 | 323.8 | 473 | ||
| 30 x 10 | 273 | 460 | ||
| 32 x 30 | 813 | 762 | 597 | 584 |
| 32 x 28 | 711 | 572 | ||
| 32 x 26 | 660 | 572 | ||
| 32 x 24 | 610 | 559 | ||
| 32 x 22 | 559 | 546 | ||
| 32 x 20 | 508 | 533 | ||
| 32 x 18 | 457 | 521 | ||
| 32 x 16 | 406.4 | 508 | ||
| 32 x 14 | 355.6 | 508 | ||
| 34 x 32 | 864 | 813 | 635 | 622 |
| 34 x 30 | 762 | 610 | ||
| 34 x 28 | 711 | 597 | ||
| 34 x 26 | 660 | 597 | ||
| 34 x 24 | 610 | 584 | ||
| 34 x 22 | 559 | 572 | ||
| 34 x 20 | 508 | 559 | ||
| 34 x 18 | 457 | 546 | ||
| 34 x 16 | 406.4 | 533 | ||
| 36 x 34 | 914 | 864 | 673 | 660 |
| 36 x 32 | 813 | 648 | ||
| 36 x 30 | 762 | 635 | ||
| 36 x 28 | 711 | 622 | ||
| 36 x 26 | 660 | 622 | ||
| 36 x 24 | 610 | 610 | ||
| 36 x 22 | 559 | 597 | ||
| 36 x 20 | 508 | 584 | ||
| 36 x 18 | 457 | 572 | ||
| 36 x 16 | 406.4 | 559 | ||
| 38 x 36 | 965 | 914 | 711 | 711 |
| 38 x 34 | 864 | 698 | ||
| 38 x 32 | 813 | 686 | ||
| 38 x 30 | 762 | 673 | ||
| 38 x 28 | 711 | 648 | ||
| 38 x 26 | 660 | 648 | ||
| 38 x 24 | 610 | 635 | ||
| 38 x 22 | 559 | 622 | ||
| 38 x 20 | 508 | 610 | ||
| 38 x 18 | 457 | 597 | ||
| 40 x 38 | 1016 | 965 | 749 | 749 |
| 40 x 36 | 914 | 737 | ||
| 40 x 34 | 864 | 724 | ||
| 40 x 32 | 813 | 711 | ||
| 40 x 30 | 762 | 698 | ||
| 40 x 28 | 711 | 673 | ||
| 40 x 26 | 660 | 673 | ||
| 40 x 24 | 610 | 660 | ||
| 40 x 22 | 559 | 648 | ||
| 40 x 20 | 508 | 635 | ||
| 40 x 18 | 457 | 622 | ||
| 42 x 40 | 1067 | 1016 | 762 | 711 |
| 42 x 38 | 968 | 711 | ||
| 42 x 36 | 914 | 711 | ||
| 42 x 34 | 864 | 711 | ||
| 42 x 32 | 813 | 711 | ||
| 42 x 30 | 762 | 711 | ||
| 42 x 28 | 711 | 698 | ||
| 42 x 26 | 60 | 698 | ||
| 42 x 24 | 610 | 660 | ||
| 42 x 22 | 559 | 660 | ||
| 42 x 20 | 508 | 660 | ||
| 42 x 18 | 457 | 648 | ||
| 42 x 16 | 406.4 | 635 | ||
| 44 x 42 | 1118 | 1067 | 813 | 762 |
| 44 x 40 | 1016 | 749 | ||
| 44 x 38 | 965 | 737 | ||
| 44 x 36 | 914 | 724 | ||
| 44 x 34 | 864 | 724 | ||
| 44 x 32 | 813 | 711 | ||
| 44 x 30 | 762 | 711 | ||
| 44 x 28 | 711 | 698 | ||
| 44 x 26 | 660 | 698 | ||
| 44 x 24 | 610 | 698 | ||
| 44 x 22 | 559 | 686 | ||
| 44 x 20 | 508 | 686 | ||
| 46 x 44 | 1168 | 1118 | 851 | 800 |
| 46 x 42 | 1067 | 787 | ||
| 46 x 40 | 1016 | 775 | ||
| 46 x 38 | 965 | 762 | ||
| 46 x 36 | 914 | 762 | ||
| 46 x 34 | 864 | 749 | ||
| 46 x 32 | 813 | 949 | ||
| 46 x 30 | 762 | 737 | ||
| 46 x 28 | 711 | 737 | ||
| 46 x 26 | 660 | 737 | ||
| 46 x 24 | 610 | 724 | ||
| 46 x 22 | 559 | 724 | ||
| 48 x 46 | 1219 | 1168 | 889 | 838 |
| 48 x 44 | 1118 | 838 | ||
| 48 x 42 | 1067 | 813 | ||
| 48 x 40 | 1016 | 813 | ||
| 48 x 38 | 965 | 813 | ||
| 48 x 36 | 914 | 787 | ||
| 48 x 34 | 864 | 787 | ||
| 48 x 32 | 813 | 787 | ||
| 48 x 30 | 762 | 762 | ||
| 48 x 28 | 711 | 762 | ||
| 48 x 26 | 660 | 762 | ||
| 48 x 24 | 610 | 737 | ||
| 48 x 22 | 559 | 737 | ||
Product Details
Size: 1/2"-80"/DN15-DN2000
Technical: Forged and pushing
Material: Carbon Steel, Stainless Steel, Alloy Steel
Carbon Steel:ASTM, A234WPB, A234WPC, A420WPL6, Q235,10#, A3, Q235A, 20G, 16Mn, DIN St37, St45.8, St52.4, St.35.8, St.35.8.
Stainless Steel:1Cr18Ni9Ti 0Cr18Ni9 00Cr19Ni10 0Cr17Ni12Mo2Ti,00Cr17Ni14Mo2 304 304L 316 316L
Alloy Steel:16Mn Cr5Mo 12Cr1MoV 10CrMo910 15CrMo 12Cr2Mo1,A335P22 St45.8, ASTM A860 WPHY X42 X52 X60 X70
Standard: ASME/ANSI B16.9, B16.11, B16.28, JIS B2311, B2312, B2312, B2316 ASTM A403 MSS SP-43, SP-83, SP-97
Model: 45°/ 90°/180 LR/SR Elbow, Reducers, Tee, Bends, Cap, Cross.
Type: Seam Or Seamless
End: beveled end
Surface: Black Paint/Rust-proof Oil/Hot Dipped Galvanized
Wall Thickness: SCH10/10S, SCH20/20S, STD, SCH40/40S, XS, SCH80,SCH100, SCH120, SCH140, SCH160, XXS etc.(for ANSI),SGP(for JIS)
Elbow Angles: 30/45/60/90/180°
Connection: Welding
Shape:Equal, Reducing
Certificate: ISO -9001:2000, API, CCS
Application:Petrochemical & Gas industry, Power industry, Valve industry, Water works, Shipbuilding industry, Construction etc
Packing: Plywood Pallets/ Wooden Case Or As Per your Specification
MOQ: to be negotiated.
Sample: Available
Service: Customized OEM
Pakage: wooden case & pallet
Payment term: T/T or L/C
Delivery:7-30days according to order quantity.
