Lifting Anchor System
Lifting Clutch
Application:
The capacity loads are axial with breakage factor of safety equal to 5 for all the tupe of lifting eyes(1.3 tonne till 32 tonne). Lifting cluth in 6 different load groups 1.3-32 ton to suit the load carrying range of all type of lifting anchors of the spherical-head anchor system.
Specification:
| Precast Concrete Hardware-Lifting Clutch | |||||||||
|---|---|---|---|---|---|---|---|---|---|

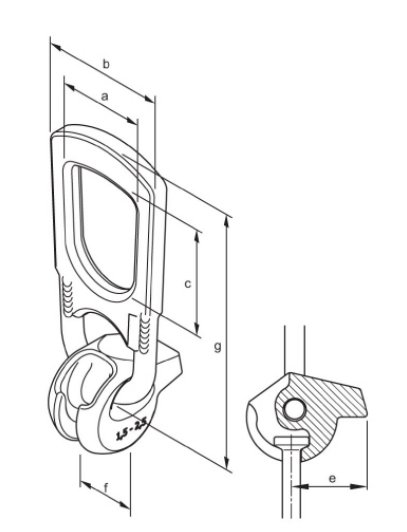

| Picture | Type:TH galvanised | Axial Capacities Load KG | Dimensions MM | Weight KG / PC | |||||
 | a | b | c | e | f | g | |||
| TH - 1.3 | 1300 | 47.5 | 75 | 71 | 45 | 33 | 165 | 1.0 | |
| TH - 1.5 -2.5 | 2500 | 64 | 98 | 85 | 55 | 42 | 205 | 1.6 | |
| TH - 3.0 - 5.0 | 5000 | 70 | 118 | 88 | 66 | 57 | 240 | 3.3 | |
| TH - 6.0 - 10.0 | 10000 | 95 | 160 | 121 | 117.5 | 73 | 348.5 | 9.6 | |
| TH - 15-20 | 20000 | 118 | 186 | 150 | 155 | 110 | 441 | 24.5 | |
Product Details

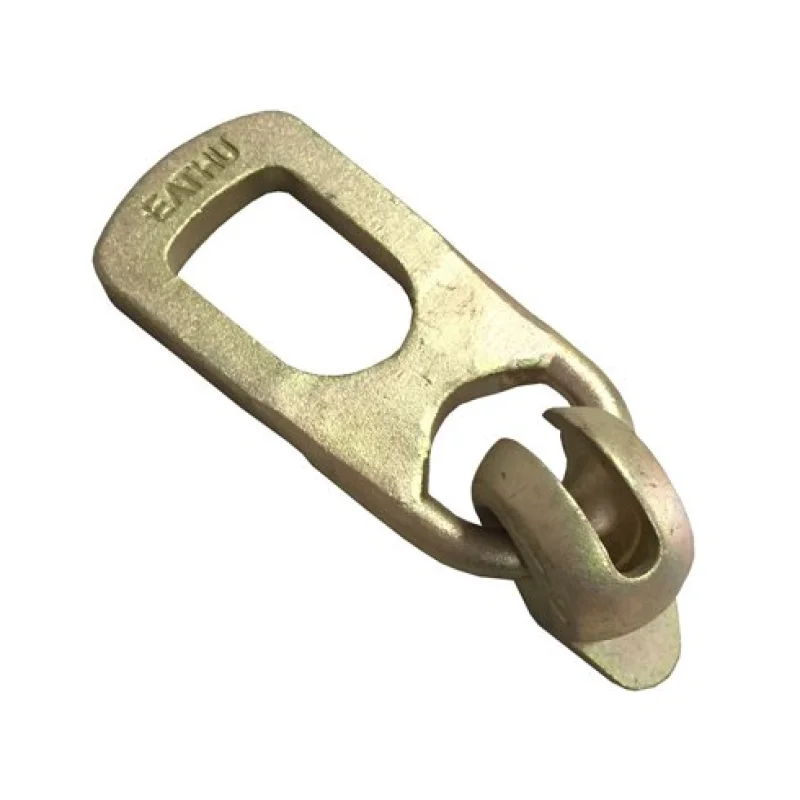

Standard lifting clutch which can be used with the full range of Pin Anchors.
The capacity loads are axial with breakage factor of safety equal to 5 for all the tupe of lifting eyes(1.3 tonne till 32 tonne). Lifting cluth in 6 different load groups 1.3-32 ton to suit the load carrying range of all type of lifting anchors of the spherical-head anchor system.
Surface of lifting cluth is usually with zinc (electro) plating.
Lifting Rigging
Lifting rigging and lifting anchor are produced in our own workshop,perfect welding by our specially designed welding device,100% traceable.individual product has its own quality certificate.every piece is proof load tested and marked with serial No.
The lifting cluth is a quick and reliable lifitng device to work with spherical head anchors ,our clutches are all proof load tested in workshop
