Thread Socket System
Flat Plate Lifting Sockets
Application:
Flat plate lifting sockets are designed to aid transportation of large, shallow precast concrete units.
The flat lifiting socket is ideal for large, thin precast concrete components, such as shells, on which it's hard to place normal lifting sockets. Because of the thickness of the component, additional reinforcemrnt must be used to transmit the concrete.
Specification:
| Precast Concrete Hardware-Flat Plate Lifting Sockets | |||||
|---|---|---|---|---|---|

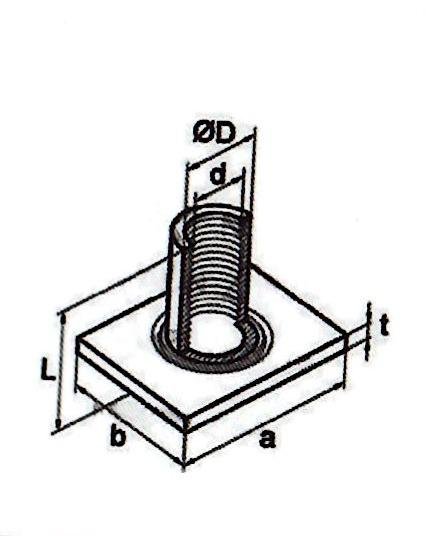

| Picture | Product Code | Safe Working Load (kg) | Thread | Length | |
 | M | RD | (MM) | ||
| HSBFP-12 | 500 | M 12 | RD 12 | 30 | |
| HSBFP-16 | 1200 | M 16 | RD 16 | 35 | |
| HSBFP-20 | 2000 | M 20 | RD 20 | 47 | |
| HSBFP-24 | 2500 | M 24 | RD 24 | 54 | |
| HSBFP-30 | 4000 | M 30 | RD 30 | 72 | |
| HSBFP-36 | 6300 | M 36 | RD 36 | 84 | |
| HSBFP-42 | 8000 | M 42 | RD 42 | 98 | |
| HSBFP-52 | 12500 | M 52 | RD 52 | 117 | |

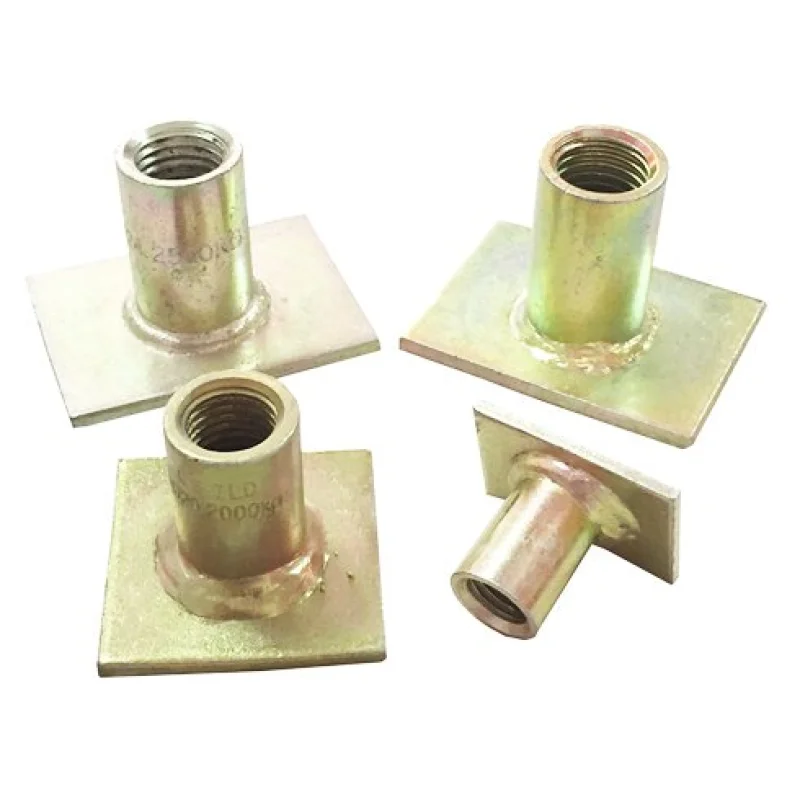

Product Details
The flat lifiting socket is ideal for large, thin precast concrete components, such as shells, on which it's hard to place normal lifting sockets. Because of the thickness of the component, additional reinforcemrnt must be used to transmit the concrete.
1) Flat plate lifting sockets are designed to aid transportation of large, shallow precast concrete units.
2) Always use with reinforcement, with zinc (electro) plating surface.
3) Material is also available in stainless steel.
