Thread Socket System

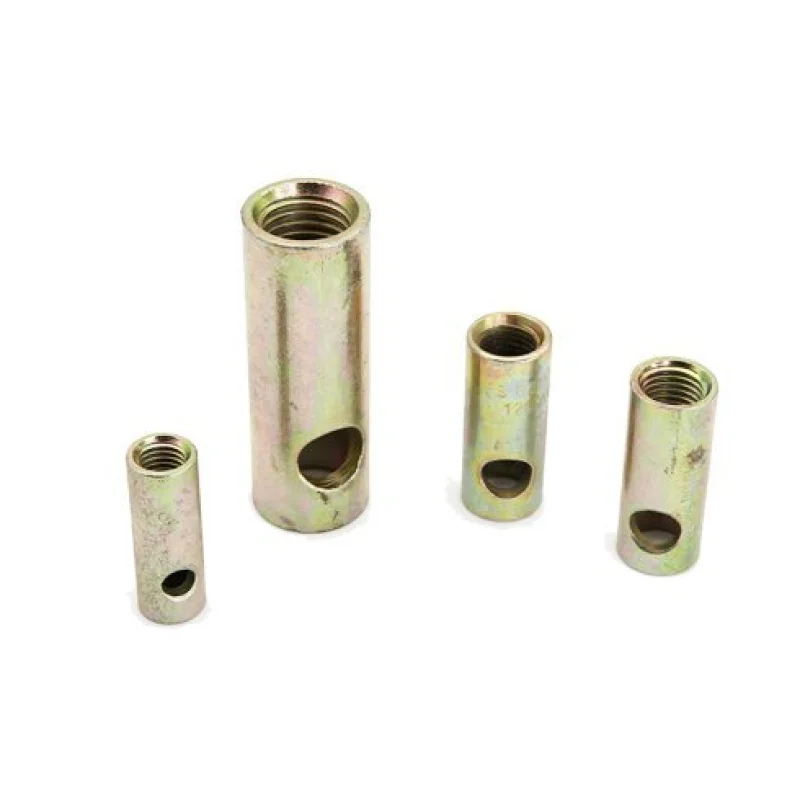

Solid Rod Fixing Sockets (Crosshole)
Application:
Machined from solid rod and offering a heavy wall construction this socket offers higher fixing capacities than its equivalent thread diameter standard fixing socket.
Specification:
| Precast Concrete Hardware-Solid Rod Fixing Sockets (Crosshole) | |||
|---|---|---|---|
| Product Code | Thread Dia. | Length | Safe Working Load （kg） |
| M | (MM) | ||
| HSSRCP-1060 | 10 | 60 | 600 |
| HSSRCP-1250 | 12 | 50 | 900 |
| HSSRCP-1275 | 12 | 75 | 900 |
| HSSRCP-1675 | 16 | 75 | 1700 |
| HSSRCP-2075 | 20 | 75 | 2300 |
| HSSRCP-24100 | 24 | 100 | 3000 |
Product Details
1) Machined from solid rod and offering a heavy wall construction this socket offers higher fixing capacities than its equivalent thread diameter standard fixing socket.
2) Always use with reinforcement, with zinc (electro) plating surface.
3) Material also available in stainless steel.
