Lifting Anchor System

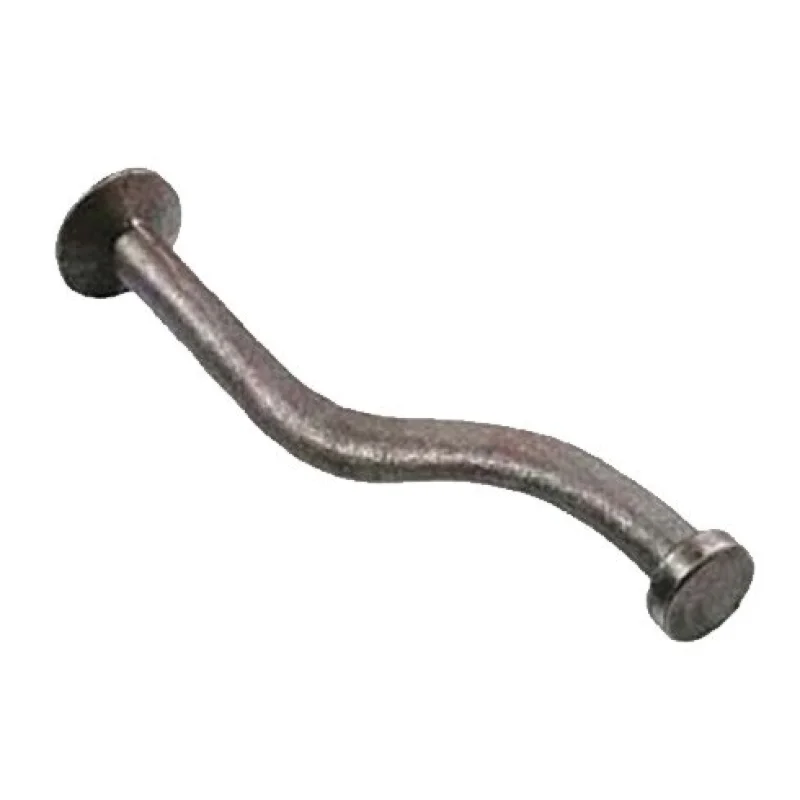

Curved Pin Anchor
Application:
The curved pin anchors system is a heavy duty system and is an alternative to the spread anchor system. The standard anchor comes in a variety of lengths in each weight category.
Specification:
| Precast Concrete Hardware-Curved Pin Anchor | ||||
|---|---|---|---|---|
| Product Code | Safe Working Load （mm） | Length | Pin Head | Pin Base |
| (mm) | (mm) | (mm) | ||
| CP-013227 | 1300 | 227 | 19 | 25 |
| CP-025268 | 2500 | 268 | 26 | 35 |
| CP-050446 | 5000 | 440 | 36 | 50 |
| CP-075664 | 7500 | 664 | 46 | 60 |
| CP-100667 | 10000 | 664 | 46 | 70 |
| CP-150825 | 15000 | 825 | 70 | 80 |
| CP-200986 | 20000 | 986 | 70 | 98 |
| CP-3201150 | 32000 | 1150 | 88 | 135 |
Product Details
-The curved pin anchors system is a heavy duty system and is an alternative to the spread anchor system. The standard anchor comes in a variety of lengths in each weight category.
- The capacity loads are axial with breakage factor of safety equal to 3.
- Surface of curved pin anchors are available of black and hot-dip galvanized.
