Thread Socket System
HSB Lifting Socket
Application:
HSB lifting socket has round end and cross drilled hole, and designed to aid the transportation of precast concrete units.
LIfitng sockets are widely used in the application of precast concrete construction, such as lifting beams, wall and floor slabs etc. It needs a reinforcement bar to transfer the load into the concrete. through the cross hole.
Specification:
| Precast Concrete Hardware-HSB Lifting Socket | ||||||||
|---|---|---|---|---|---|---|---|---|

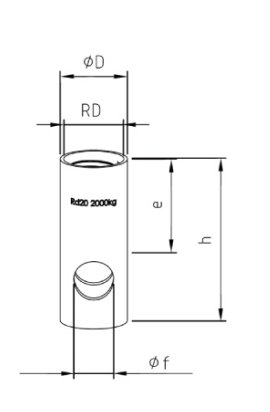

| Piceture | Product Code | Safe Working Load (kg) | Thread | Height H | Dia. D | Dimensions | ||
 | M | DR | （MM） | (MM) | e(MM) | f(MM) | ||
| HSB - M12 | 500 | 12 | 12 | 40 | 16.5 | 22 | 8 | |
| HSB - M16 | 1200 | 16 | 16 | 54 | 22 | 27 | 13 | |
| HSB - M20 | 2000 | 20 | 20 | 69 | 28 | 35 | 15 | |
| HSB - M24 | 2500 | 24 | 24 | 78 | 31 | 43 | 18 | |
| HSB - M30 | 4000 | 30 | 30 | 103 | 41 | 56 | 22 | |
| HSB - M36 | 6300 | 36 | 36 | 125 | - | - | - | |
| HSB - M42 | 8000 | 42 | 42 | 145 | - | - | - | |
| HSB - M52 | 12500 | 52 | 52 | 195 | - | - | - | |
Product Details

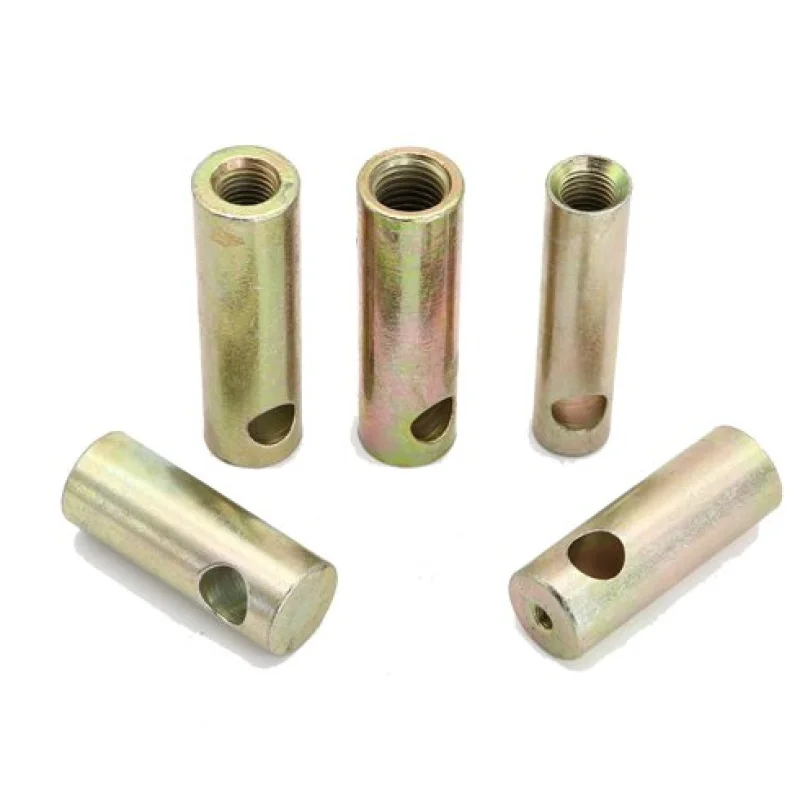

- HSB lifting socket has round end and cross drilled hole.
- HSB lifting socket is designed to aid the transportation of precast concrete units.
- Always use with reinforcement, with zinc (electro) plating surface.
- Material also available in stainless steel.
Concrete Orient Lifting Socket with Cross Hole
LIfitng sockets are widely used in the application of precast concrete construction, such as lifting beams, wall and floor slabs etc. It needs a reinforcement bar to transfer the load into the concrete. through the cross hole.
