Lifting Anchor System
Rubber Recess Former
Application:

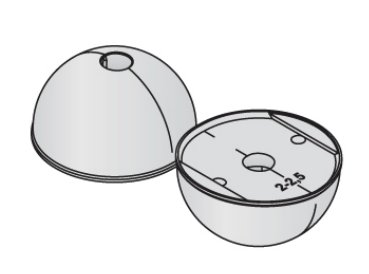

To fix the spherical head anchors to the formwork a EATHU recess former must be used. This ensures simple and secure locating of the anchor and leaves the anchor ready for the correct universal heading lifting link.
Specification:
| Precast Concrete Hardware-Rubber Recess Former | |||||
|---|---|---|---|---|---|

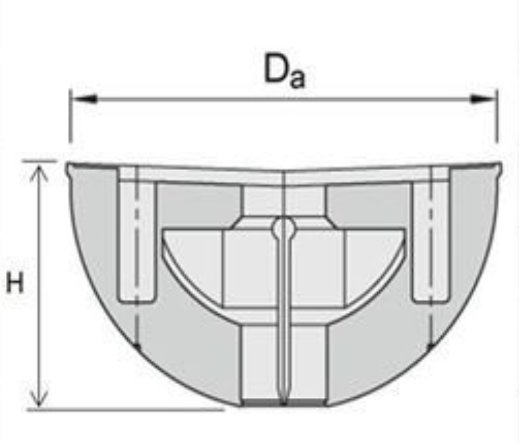

| Picture | Product Code | Load Group (kg) | Height (mm) | Width Dia. (mm) | Hole Dia(mm) |
 | TR-013 | 1300 | 32 | 66 | 10 |
| TR-025 | 2500 | 39 | 80 | 14 | |
| TR-050 | 5000 | 48 | 100 | 20 | |
| TR-075100 | 7500-10000 | 61 | 128 | 28 | |
| TR-150200 | 15000-20000 | 80 | 170 | 40 | |
| TR-320450 | 32000-45000 | 107 | 236 | 50 | |

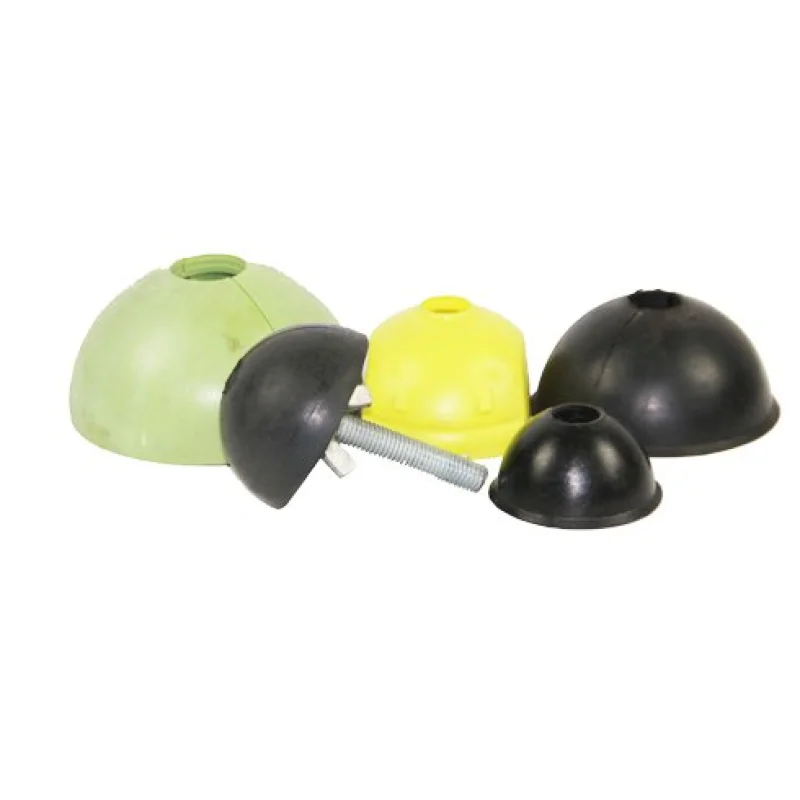

The rubber recess former is constant in shape evenwhen heated up to 120°C or in contact with oil. It can beused several times.In order to ease the iden-tificationof the load group the formers are produced in differentcolours.Recess formers are used with threaded plateswhich may be either rod a socket.
Product Details
To fix the spherical head anchors to the formwork a EATHU recess former must be used. This ensures simple and secure locating of the anchor and leaves the anchor ready for the correct universal heading lifting link.
The rubber recess former is constant in shiape even when heated up to 120℃ or in contact with oil. It can be used several times. In order to ease the iden-tification of the load group the formers are produced in different colors. Recess formers are used with threaded plates which may be either rod a socket.
Package ：Plywood Pallets or Plywood Cases.
A rubber former recess is a space within a precast concrete member that can be used to store equipment or provide access for future maintenance and repair. Rubber former recesses are often used on precast elements that will be subject to hot water, cold water, cold air, chemicals, or high pressure.
They are also commonly found in roofing applications because they reduce the de-icing time for service roads. Companies also use these types of recesses as protection for fragile items such as transformers in substations.
When properly installed, rubber former recesses can help extend an element's life span by allowing engineers more access points throughout its lifespan than if it were solid all around.
