Thread Socket System
BSR Fixing Insert
Application:
BSR fixing insert has flat end and cross drilled hole. Robust fixing insert with cross-drilled hole to allow for fixing to reinforcement bar.
Specification:

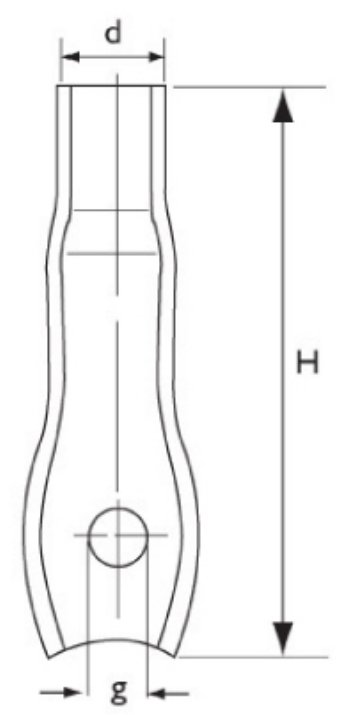

| Precast Concrete Hardware-BSR Fixing Insert | |||||||
|---|---|---|---|---|---|---|---|
| Picture | Product Code | Safe Working | Thread | Height H | Dia.D | Dia. | |
 | M | RD | (mm) | (mm) | (mm) | ||
| BSR-0850 | 250 | 8 | 8 | 50 | 10.5 | 6 | |
| BSR-1050 | 350 | 10 | 10 | 50 | 13.5 | 10 | |
| BSR-1680 | 850 | 16 | 16 | 80 | 22 | 12 | |
| BSR-16100 | 1000 | 16 | 16 | 100 | 22 | 12 | |
| BSR-16120 | 1200 | 16 | 16 | 120 | 22 | 12 | |
| BSR-20100 | 1300 | 20 | 20 | 100 | 27 | 14 | |
| BSR-20120 | 1400 | 20 | 20 | 120 | 27 | 14 | |
| BSR-24120 | 1800 | 24 | 24 | 120 | 34 | 15 | |

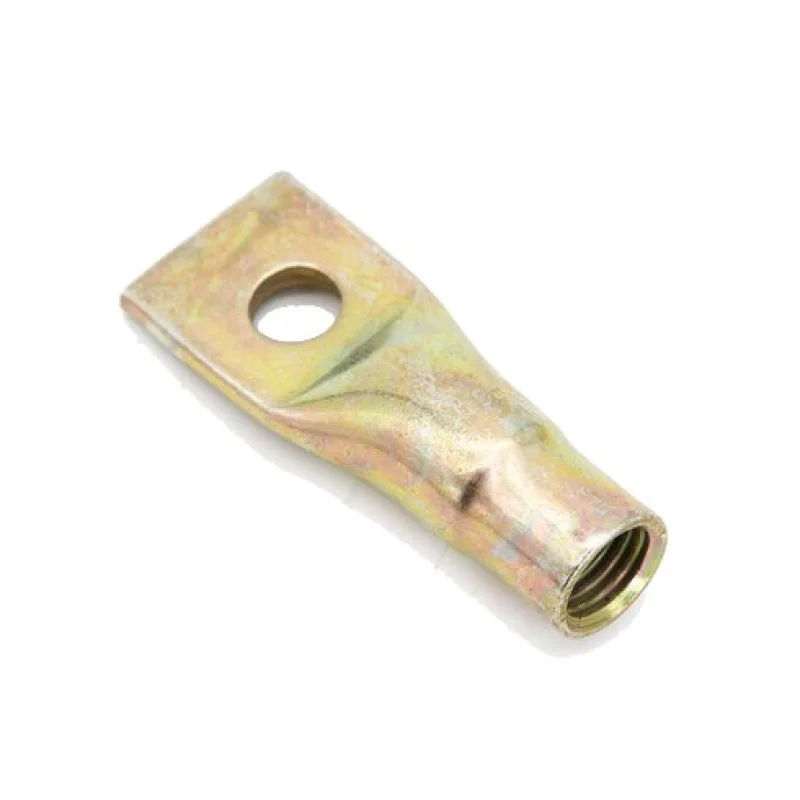

Product Details
-BSR fixing insert has flat end and cross drilled hole.
-Robust fixing insert with cross-drilled hole to allow for fixing to reinforcement bar.
- Always use with reinforcement, with zinc (electro) plating.
- Material is also available in stainless steel.
