Thread Socket System
Wire Rope Lifting Loop
Application:
Cast-in wire lifting loops are the most economic way of providing a crane hook attachment in precast units. However, they require relatively large edge distances. Consideration must also be given to the exposure of steel rope hoops after panel assembly.
Specification:
| Precast Concrete Hardware-Cast-in Lifting Loops | ||||||
|---|---|---|---|---|---|---|
| Picture | Product Code | Load Rate | Length | Dimensions | Wire Rope | |

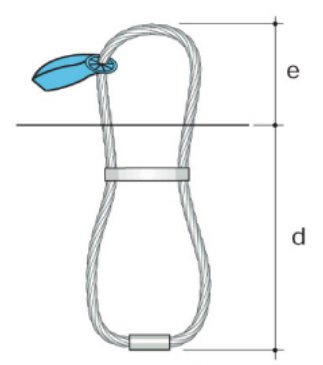

| (kg) | (mm) | e (mm) | d(mm) | Dia. (mm) | ||
 | TIL - 008 | 800 | 210 | 60 | 150 | 6 |
| TIL - 012 | 1200 | 225 | 65 | 160 | 7 | |
| TIL - 016 | 1600 | 235 | 70 | 165 | 8 | |
| TIL - 020 | 2000 | 275 | 75 | 200 | 9 | |
| TIL - 025 | 2500 | 315 | 85 | 230 | 10 | |
| TIL - 040 | 4000 | 340 | 100 | 240 | 12 | |
| TIL - 052 | 5200 | 360 | 100 | 260 | 14 | |
| TIL - 063 | 6300 | 390 | 110 | 280 | 16 | |
| TIL - 080 | 8000 | 440 | 120 | 320 | 18 | |
| TIL - 100 | 10000 | 525 | 135 | 390 | 20 | |
| TIL - 125 | 12500 | 570 | 150 | 420 | 22 | |
| TIL - 160 | 16000 | 615 | 165 | 450 | 26 | |
| TIL - 200 | 20000 | 730 | 180 | 550 | 28 | |
| TIL - 250 | 25000 | 800 | 200 | 600 | 32 | |
Product Details
- Cast-in wire lifting loops are the most economic way of providing a crane hook attachment in precast units. However, they require relatively large edge distances. Consideration must also be given to the exposure of steel rope hoops after panel assembly.
- The flexibility of steel rope makes it the safest method for forming a cast-in loop. Lifting loops formed from reinforcement bars are liable to fatigue, particularly if bent during angled lifts.

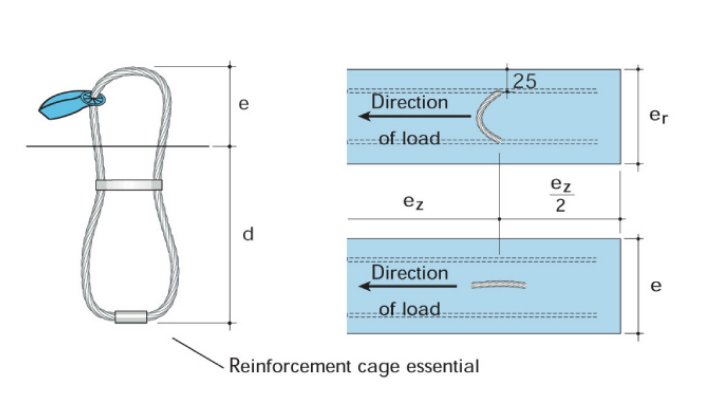

- Provided that hoops are installed in reinforced concrete and to the minimum dimensions in the table, no anchorage reinforcement is generally required. However for acute angled lifts, additional lateral reinforcement may be required.
Description

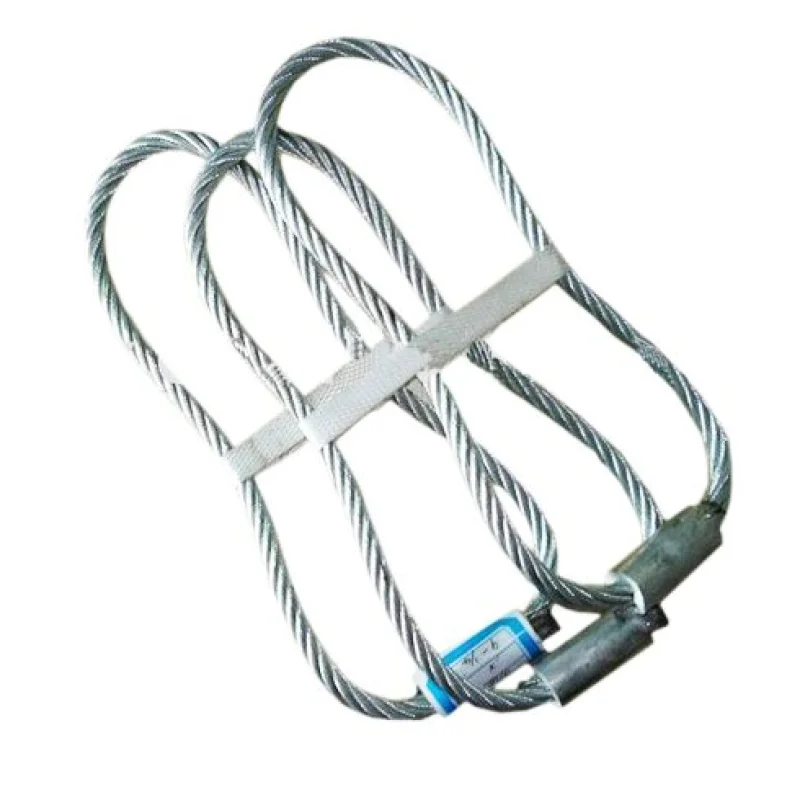

Cast-in lifting hoops are manufactured from bright or galvanised mild steel rope. They have a swaged connecting ferruleand a tag that clearly identifies the SW. of the hoop. The tag is designed not to slide down the hoop during casting andshould therefore remain visible.
Cast-in hoops are suitable for use through a single cycle from production to final installation but are not suitable formulti-use applications.
