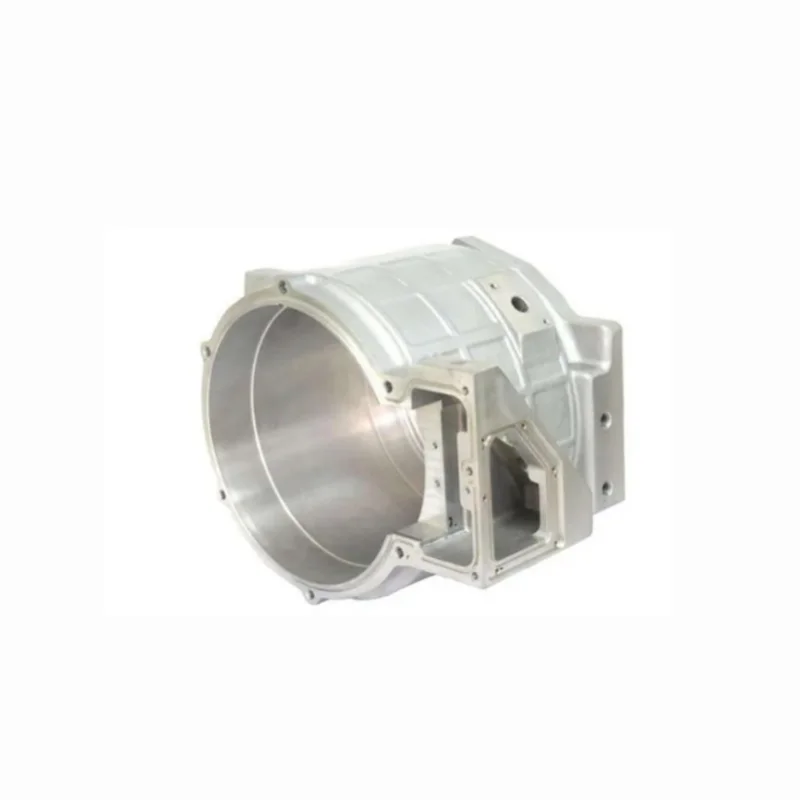

Custom Die Casting Aluminum Alloy Electromotor Shell
Application:
Aluminum alloy motor casings are mainly used in electric vehicle motors, water-cooled motors, servo motors, variable frequency motors and other applications. Compared with iron motor casings, aluminum alloy casings are lightweight, have good thermal conductivity, can be die-cast, have good plasticity, and have higher elongation than iron, but they are more expensive and have lower hardness.
Specification:
| Product Name | Precision Casting Aluminum Motor Engine Casing |
| Blank Casting Process | Die Casting,Gravity Casting, Low Pressure Casting, High Pressure Casting, Sand Casting, Extrusion Casting etc. |
| Casting Tolerance | CT 4-6mm（Die Casting）/ CT 9 -11 (Sand Casting) |
| Applicable Material | A356.0/ZL101,GAlSi7Mg (3.2371.61)/AlSi7Mg/, A-S7G, Al Si Alloy, Al Cu Alloy ZL201 Al Mg Alloy ZL301,ZL302, Al Zn Alloy ZL401Zn Alloy Zamak 3, Zamak 5, Zamak 7, Zamak 2 (Custom drawing) |
| Machining Process | CNC Machining / Turning / Milling / Planning Shaping / Drilling / Reaming / Boring |
| Machning Tolerance | From 0.005mm - 0.01mm - 0.1 mm |
| Machined Surface | Ra 0.8 - Ra 3.2 according to customer requirement |
| Certificate | CE, TUV, SGS or as your requirement to do test by the third party |
| Delivery | 10-15 days for sample, 30 -35days for bulk order |
| Packing | Steel Pallet, Plywood pallet, plywood box or as per your requirement |
| Service | Freight consulting / Quality inspection / After - sales / Other value-added services |
Product Details

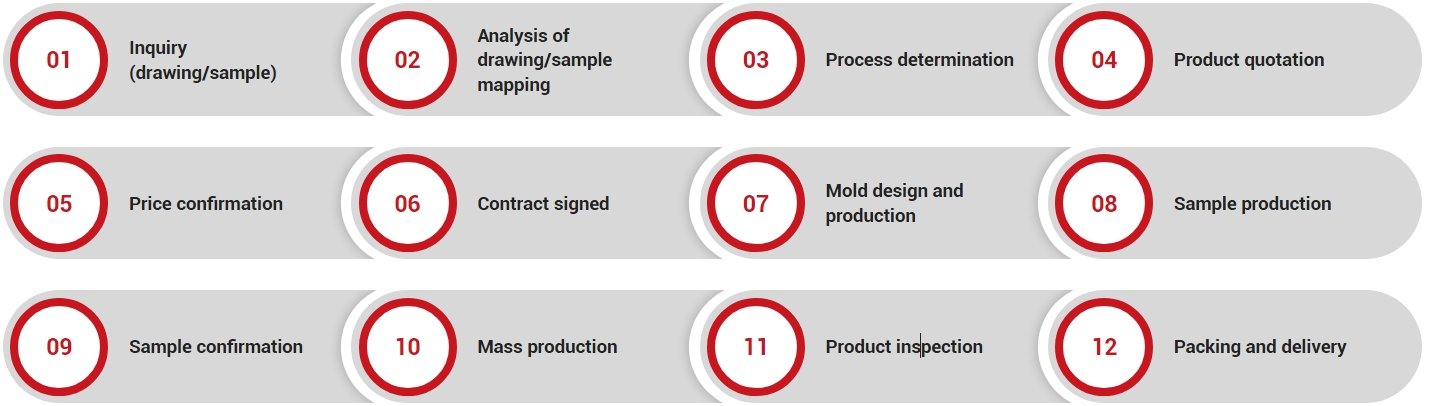

Custom Product Development Process

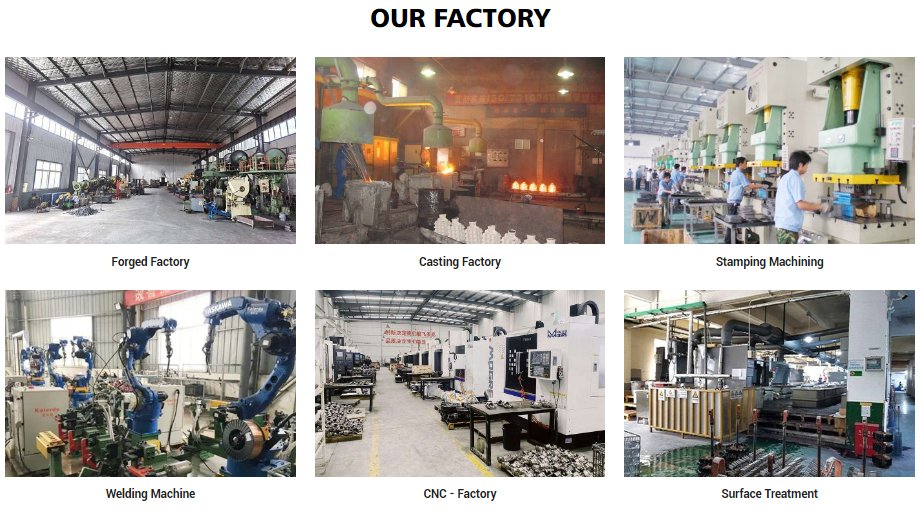

Eathu has 25 years of experience in the foundry industry, we can provide castings with sand casting, precision casting, die casting, centrifugal casting etc. with weight range from 0.1kg to 10000kg. The materials include gray iron, ductile iron, cast steel, alloy steel, stainless steel, wear-resistant steel, heat-resistant steel, aluminum alloy, zinc alloy, etc. Chemical composition and mechanical properties meet the requirements of ASTM,BS EN,GB standards.
