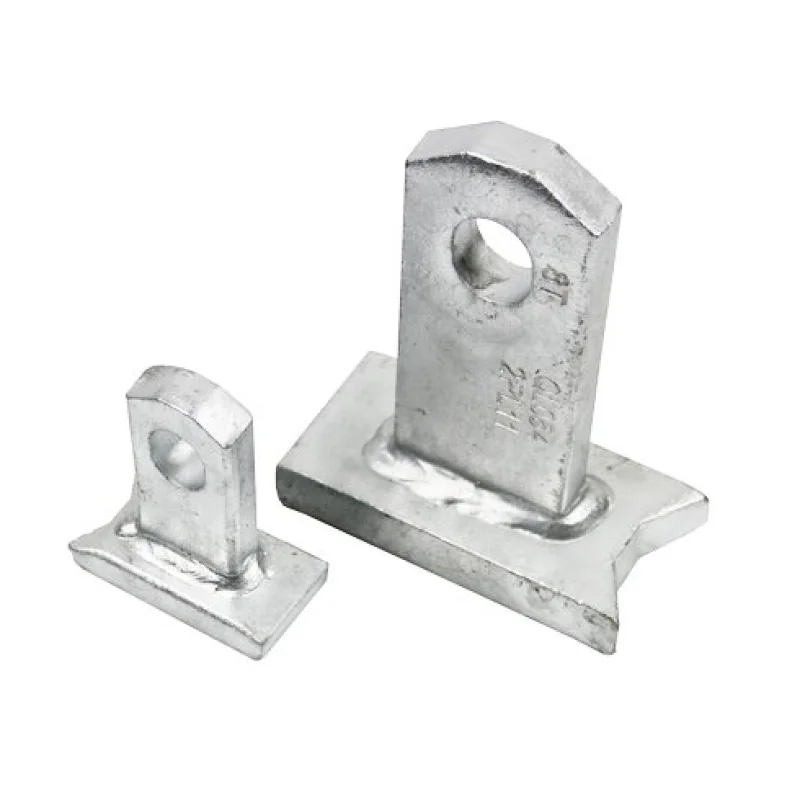

Plate Spread Anchors
Application:
Plate spread anchors are used with flat concrete panels.
Specification:
| Precast Concrete Hardware-Plate Spread Anchor | ||||||
|---|---|---|---|---|---|---|
| Product Code | Safe Working Load (kg) | Length | Width | Thickness | Plate Width | Plate Thickness |
| (mm） | (mm) | (mm) | (mm) | (mm) | ||
| PSA014055 | 1400 | 55 | 30 | 6 | 80 | 8 |
| PSA025080 | 2500 | 80 | 30 | 10 | 80 | 8 |
| PSA050120 | 5000 | 120 | 40 | 15 | 100 | 10 |
| PSA100160 | 10000 | 160 | 60 | 20 | 140 | 10 |
Product Details
- Plate spread anchors are used with flat concrete panels.
- Designed for lifting and turning very shallow units, this Spread Anchor relies on reinforcement bars placed horizontally across the square base plate. This means of load transferral allows full capacity of the anchor for both lifting and turning.
- Hot-dip galvanized and black surface are all available for plate spread anchor.
