Ring Anchor System
Transport Anchors
Application:
Transport anchors are used in lightweight concrete units and thin panels, the transport anchor is anchored to concrete by additional reinforcement through the spare hole.
Specification:
| Precast Concrete Hardware-Transport Anchor | ||||||
|---|---|---|---|---|---|---|

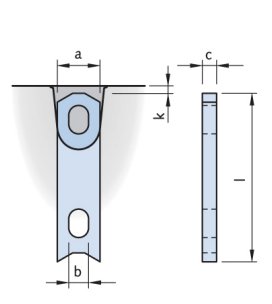

| Picture | Product Code | Safe Working Load (kg) | Length L | Width A | Thickness C | Hole Dia. |
| (mm) | (mm) | (mm) | (mm) | |||
 | TA- 007090 | 700 | 90 | 30 | 5 | 14 |
| TA- 014090 | 1400 | 90 | 30 | 6 | 14 | |
| TA- 020090 | 2000 | 90 | 30 | 8 | 14 | |
| TA- 025090 | 2500 | 90 | 30 | 10 | 14 | |
| TA- 030120 | 3000 | 120 | 40 | 10 | 18 | |
| TA- 040120 | 4000 | 120 | 40 | 12 | 18 | |
| TA- 050120 | 5000 | 120 | 40 | 12 | 18 | |
| TA- 075160 | 7500 | 160 | 60 | 15 | 18 | |
| TA- 125240 | 12500 | 240 | 80 | 20 | 35 | |
| TA- 170240 | 17000 | 240 | 80 | 20 | 35 | |
| TA- 220300 | 22000 | 300 | 80 | 26 | 35 | |

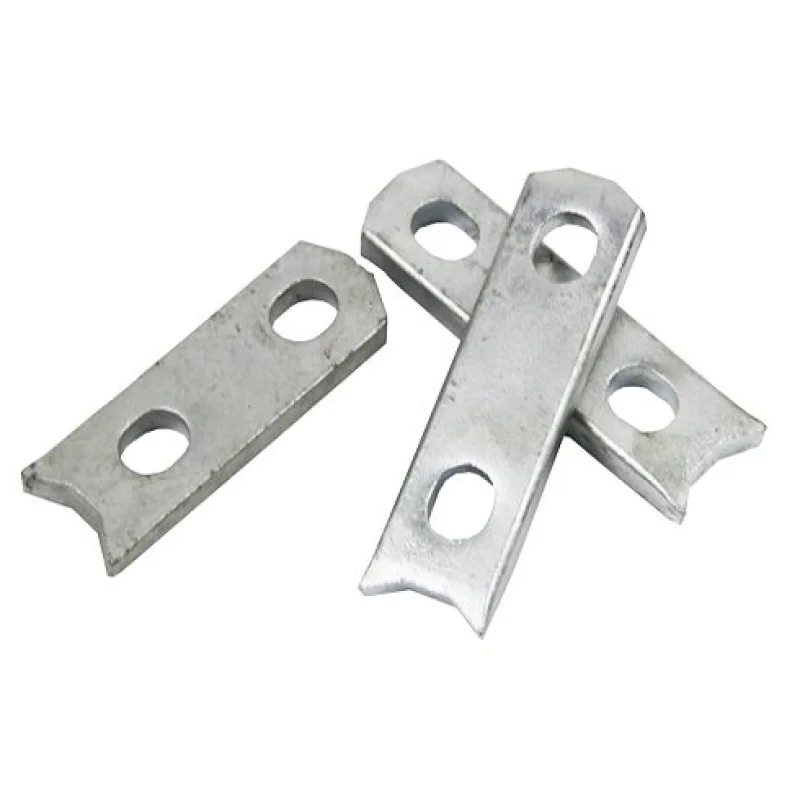

Product Details
- Transport anchors are used in lightweight concrete units and thin panels, the transport anchor is anchored to concrete by additional reinforcement through the spare hole.
- The head of the two hole anchor is identical to the head of the spread anchor. The anchorage in concrete is achieved by means of a reinforcement tail. Longer anchors with additional holes can be produced on request.
