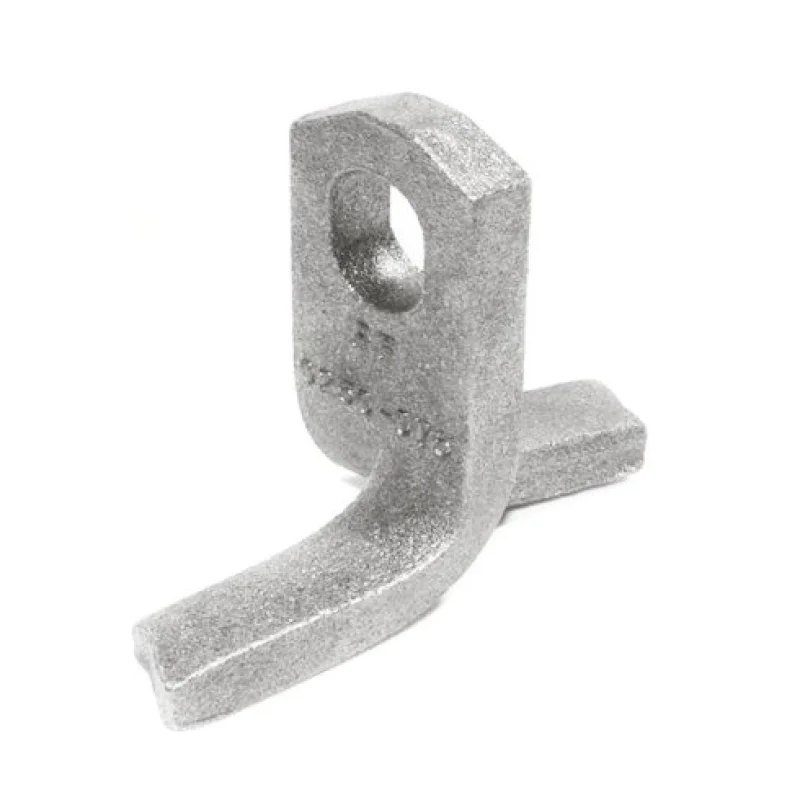

EATHU Precast Concrete Accessories - Flat Foot Spread Anchors
Application:
Flat foot spread anchors are used on very shallow precast concrete units for both lifting and turning.EATHU’s Flat Foot Spread Anchors are engineered for safe, efficient, and reliable lifting of precast concrete elements. Designed with a flat base to maximize load transfer, these anchors are ideal for lifting thin wall panels and architectural precast units where space is limited or where a lower profile is required.
Specification:
| Precast Concrete Hardware-Flat Foot Spread Anchors | |||||
|---|---|---|---|---|---|
| Product Code | Safe Working Load (kg) | Length | Width | Thickness | Hole Dia. |
| (mm) | (mm) | (mm) | (mm) | ||
| FSA007065 | 700 | 65 | 30 | 5 | 14 |
| FSA014165 | 1400 | 65 | 30 | 6 | 14 |
| FSA020070 | 2000 | 70 | 30 | 8 | 14 |
| FSA025070 | 2500 | 70 | 30 | 10 | 14 |
| FSA030090 | 3000 | 90 | 40 | 10 | 18 |
| FSA040110 | 4000 | 110 | 40 | 12 | 18 |
| FSA050125 | 5000 | 125 | 40 | 15 | 18 |
| FSA050150 | 5000 | 150 | 60 | 12 | 18 |
| FSA075170 | 7500 | 170 | 60 | 16 | 27 |
| FSA100200 | 10000 | 200 | 60 | 20 | 27 |
| FSA125220 | 12500 | 220 | 80 | 16 | 35 |
| FSA170270 | 17000 | 270 | 80 | 20 | 35 |
| FSA220310 | 22000 | 310 | 80 | 28 | 35 |
Product Details
Product Description
EATHU’s Flat Foot Spread Anchors are part of our trusted precast concrete lifting systems, designed to offer safe, efficient, and reliable solutions for handling precast elements. These high load capacity concrete anchors feature a flat foot base, ideal for use in thin precast panels, beams, and architectural components where a low-profile concrete anchor is essential.
Flat Foot Spread Anchors are used on very shallow precast concrete units for both lifting and turning, making them a versatile choice for complex precast applications. These anchors are especially suited for panels with limited thickness or edge space.
Both hot-dip galvanized and black surface finishes are available for these one-side erection anchors, allowing flexibility for indoor or outdoor use and different environmental conditions.
As a leading precast accessories manufacturer, EATHU provides forged steel anchors engineered for maximum durability and long service life. Whether you're handling wall panels or columns, our flat lifting anchors ensure stability and easy integration into your existing lifting system.
Why Choose EATHU as Your Precast Accessories Manufacturer?
With years of experience in OEM precast concrete solutions, EATHU is a reliable partner in supplying lifting anchors and precast accessories to clients worldwide. All products are tested for strength, safety, and compliance with international quality standards.
High Load Capacity | Designed to support a wide range of lifting loads, with optimal stress distribution into the concrete. |
Low Profile Design | Flat foot structure allows placement near the bottom of thin panels or narrow elements. |
Easy Installation | Compatible with standard reinforcing and lifting systems, ensuring smooth integration into your production process. |
Durable Material | Manufactured from high-strength forged steel with corrosion-resistant coatings available. |
Cost-Effective | Reduces the need for additional reinforcement or complex formwork designs. |
Applications:
Thin precast wall panels
Architectural concrete façades
Columns and beams with limited anchoring space
Structural concrete components requiring flat foot spread anchors
