Thread Socket System

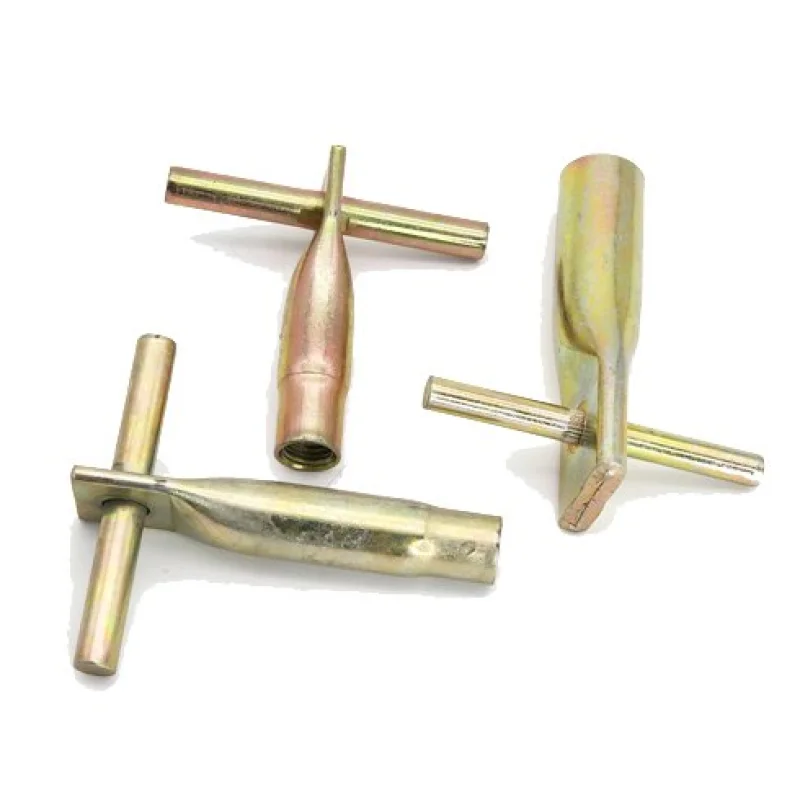

Fixing Sockets with Cross Pin
Application:
Fixing sockets with cross pin also named fixing insert with integral pin can be used independent of reinforcement bar.
Specification:
| Precast Concrete Hardware-Fixing Sockets with Cross Pin | |||
|---|---|---|---|
| Product Code | Thread | Length | Safe Working Load（kg） |
| M | (mm) | ||
| BSRCP -08050 | 8 | 50 | 200 |
| BSRCP -10060 | 10 | 60 | 350 |
| BSRCP -12060 | 12 | 60 | 500 |
| BSRCP -16080 | 16 | 80 | 700 |
| BSRCP -16100 | 16 | 100 | 800 |
| BSRCP -20100 | 20 | 100 | 1250 |
| BSRCP -24120 | 24 | 120 | 1800 |
Product Details
-Fixing insert with integral pin,can be used independent of reinforcement bar.
-Always use with reinforcement, with zinc (electro) plating surface.
-Material is also available in stainless steel.
