Thread Socket System

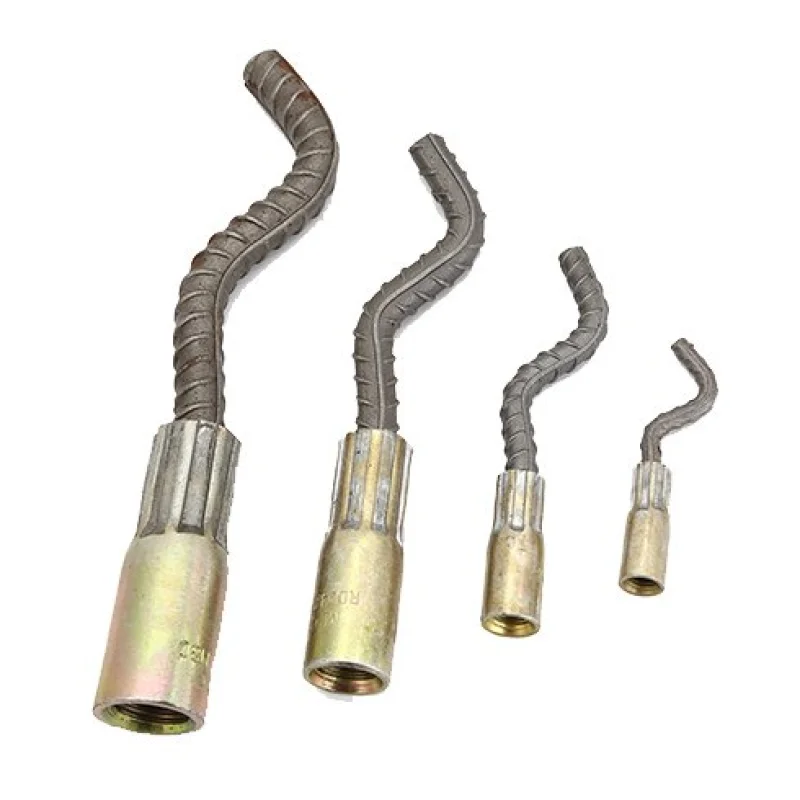

Long Wavy Tailed Lifting Sockets
Application:
Long wavy tailed lifting sockets have an integral reinforcement tail attached,making them ideal for large thin precast panels of medium to high weight.
Specification:
| Precast Concrete Hardware-Long Wavy Tailed Lifting Sockets | ||||||||
|---|---|---|---|---|---|---|---|---|

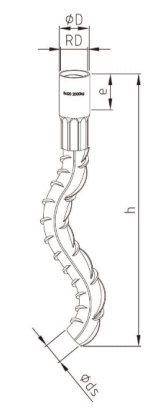

| Picture | Product Code | Thread Dia. | Safe Working Load(kg) | Length | Bar Dia. | Dia. | Dimension | |
 | M | RD | H(mm) | ds(mm) | D(mm) | e(mm) | ||
| TGL-M12-137 | 12 | 12 | 500 | 137 | 8 | 15 | 22 | |
| TGL-M16-216 | 16 | 16 | 1200 | 216 | 12 | 21 | 27 | |
| TGL-M20-257 | 20 | 20 | 2000 | 257 | 14 | 27 | 35 | |
| TGL-M24-360 | 24 | 24 | 2500 | 260 | 16 | 31 | 43 | |
| TGL-M30-450 | 30 | 30 | 4000 | 450 | 20 | 40 | 56 | |
| TGL-M36-570 | 36 | 36 | 6300 | 570 | 25 | 47 | 68 | |
| TGL-M36-570 | 42 | 42 | 8000 | 620 | 28 | 54 | 80 | |
Product Details
- Long wavy tailed lifting sockets have an integral reinforcement tail attached,making them ideal for large thin precast panels of medium to high weight.
- Lifting insert can work by using the lifting loop type or the lifting swivel and with use of reinforcing tail and reinforcing steel.
