Ring Anchor System

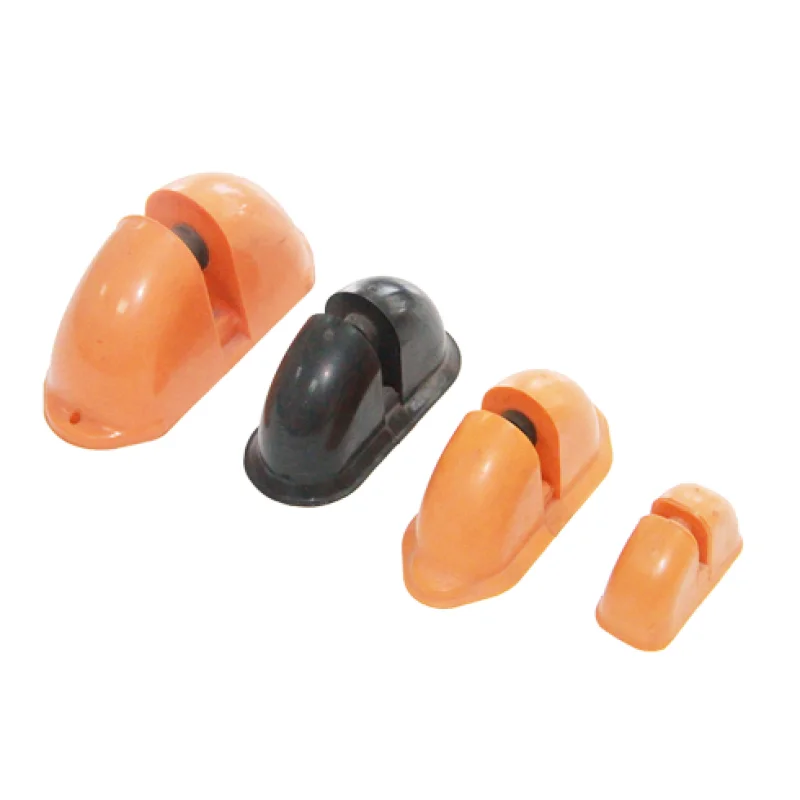

Rubber Former
Application:
Rubber formers are designed to hold the anchor in position and leave a recess for the clutch.
Specification:
| Precast Concrete Hardware-Rubber Former | ||||||
|---|---|---|---|---|---|---|

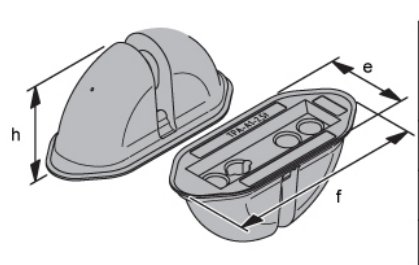

| Picture | Product Code | Safe Working Load（kg） | Thread | Dimensions(mm) | ||
 | e | f | h | |||
| RA-A1 2.5 | 2500 | M8 | 43 | 104 | 45 | |
| RA-A1 5.0 | 5000 | M8 | 49 | 126 | 59 | |
| RA-A1 10.0 | 10000 | M12 | 67 | 188 | 85 | |
| RA-A1 26.0 | 26000 | M16 | 112 | 234 | 118 | |
Product Details
- Rubber formers are designed to hold the anchor in position and leave a recess for the clutch.
- The rubber recess former is constant in shiape even when heated up to 120℃ or in contact with oil. It can be used several times. In order to ease the iden-tification of the load group the formers are produced in different colors.
A rubber former recess is a space within a precast concrete member that can be used to store equipment or provide access for future maintenance and repair. Rubber former recesses are often used on precast elements that will be subject to hot water, cold water, cold air, chemicals, or high pressure.
They are also commonly found in roofing applications because they reduce the de-icing time for service roads. Companies also use these types of recesses as protection for fragile items such as transformers in substations.
When properly installed, rubber former recesses can help extend an element's life span by allowing engineers more access points throughout its lifespan than if it were solid all around.
