Thread Socket System
HSR Lifting Socket
Application:

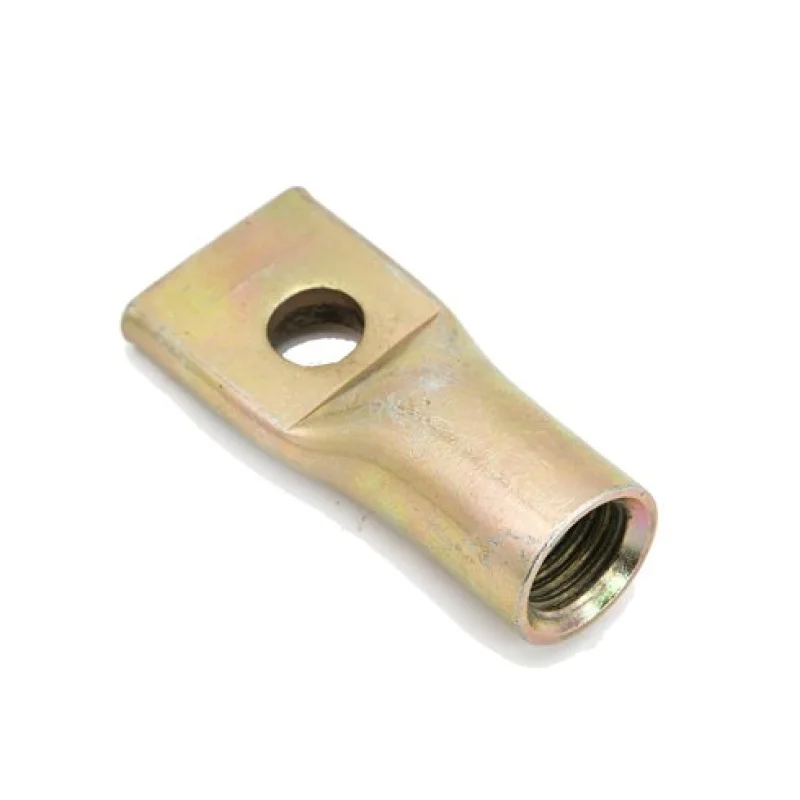

HSR lifting socket has flat end and cross drilled hole,and they are designed to aid the transportation of precast concrete units.
The Concrete Fixed Socket Dowel Hole is a M threaed insert for the lifting purpose. It can be used for the transport of beams, panels and slabs etc. It needs a reinforment bar to transfer the load into the concrete. through the cross hole.
Specification:
Socket HSR, with Flat end and cross drilled hole
| Precast Concrete Hardware-HSR Lifting Socket | ||||||||
|---|---|---|---|---|---|---|---|---|

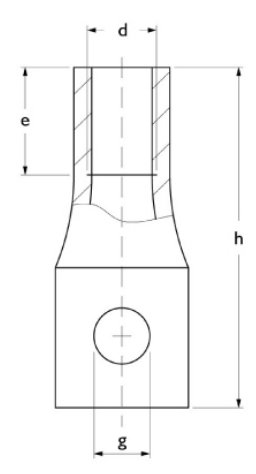

| Picture | Product Code | Safe Working Load (kg) | Thread | Hight H | Dia.D | Dimensions | ||
| M | RD | (mm) | (mm) | e(mm) | g(mm) | |||
 | HSR-M1260 | 500 | 12 | 12 | 60 | 12 | 20 | 8 |
| HSR-M1680 | 1200 | 16 | 16 | 80 | 16 | 22 | 13 | |
| HSR-M2095 | 2000 | 20 | 20 | 95 | 20 | 25 | 15 | |
| HSR-M24100 | 2500 | 24 | 24 | 100 | 24 | 30 | 18 | |
| HSR-M30135 | 4000 | 30 | 30 | 135 | 30 | 35 | 22 | |
Product Details
The Concrete Fixed Socket Dowel Hole is a M threaed insert for the lifting purpose. It can be used for the transport of beams, panels and slabs etc. It needs a reinforment bar to transfer the load into the concrete. through the cross hole.
1) HSR lifting socket has flat end and cross drilled hole.
2) HSR lifting socket is designed to aid the transportation of precast concrete units.
3) Always use with reinforcement, with zinc (electro) plating surface.
4) Material :Seamless Precision tube, galvanized. Stainless steel available on request.
