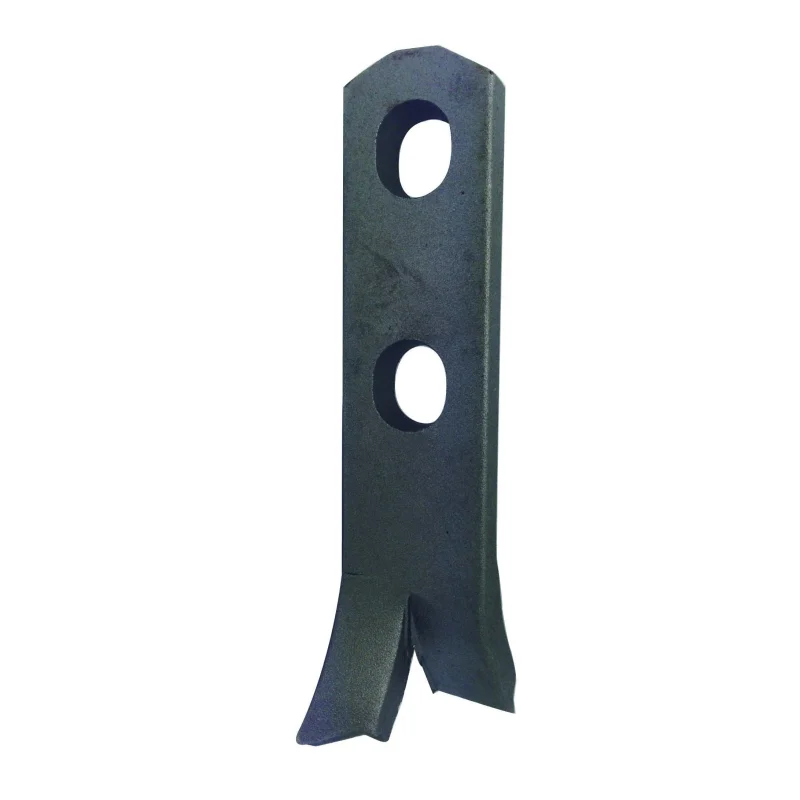

Spread Anchors
Application:
The most popular product in the range, used for all types of application rom twin walls to large precast units
Specification:
| Precast Concrete Hardware-Spread Anchor | ||||||
|---|---|---|---|---|---|---|
| Picture | Product Code | Safe Working Load (kg) | Length L | Width A | Thickness C | Hola Dia. B |
 | (mm) | (mm) | (mm) | (mm) | ||
| SA-007110 | 700 | 110 | 30 | 5 | 14 | |
| SA-014110 | 1400 | 110 | 30 | 6 | 14 | |
| SA-020130 | 1400 | 160 | 30 | 6 | 14 | |
| SA-020160 | 2000 | 130 | 30 | 8 | 14 | |
| SA-020250 | 2000 | 250 | 30 | 8 | 14 | |
| SA-025120 | 2500 | 120 | 30 | 8 | 14 | |
| SA-025150 | 2500 | 150 | 30 | 10 | 14 | |
| SA-025200 | 2500 | 200 | 30 | 10 | 14 | |
| SA-025250 | 2500 | 250 | 30 | 10 | 14 | |
Product Details
- The most popular product in the range, used for all types of application rom twin walls to large precast units.
- The spread anchor is very versatile. It provides an efficient anchorage in both thin panels and slabs. For special applications additional reinforcement can be combined with the spread anchor by utilising the extra hole.
