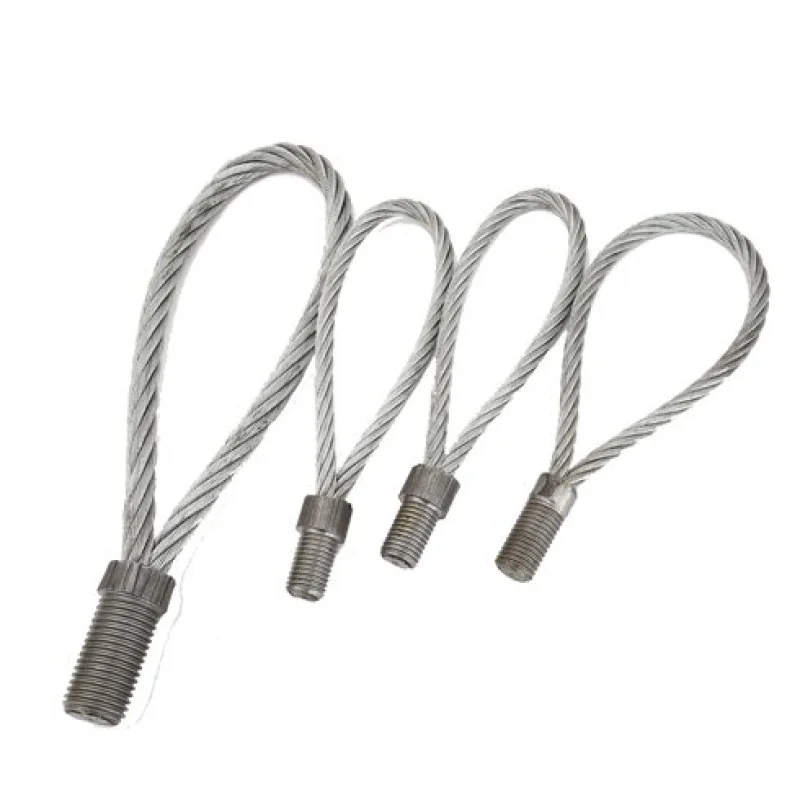

Lifting Loops – High-Strength Wire Rope Lifting Devices for Precast Concrete
Application:
EATHU Lifting Loops are robust, wire-rope-based lifting devices designed for use with precast concrete elements, including panels, slabs, and structural components. Engineered for easy installation, safe handling, and reliable performance, they are widely used in modern construction and precast factories.
These loops are cast into concrete and connect directly to the lifting equipment. With options for standard or custom lengths, EATHU offers lifting loops that comply with EN and international safety standards.
Specification:
| Precast Concrete Hardware-Lifting Loops | |||||||
|---|---|---|---|---|---|---|---|

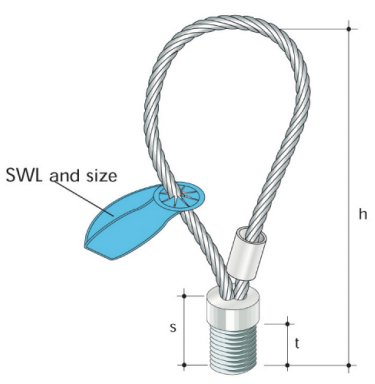

| Picture | Product Code | Thread Dia. | Full SWL （kg） | Dimensions | Wire Rope | ||
 | M | Rd | t（mm） | h(mm) | Dia.（mm） | ||
| THS - M12 | 12 | 12 | 500 | 22 | 155 | 6 | |
| THS - M16 | 16 | 16 | 1200 | 27 | 155 | 8 | |
| THS - M20 | 20 | 20 | 2000 | 35 | 215 | 10 | |
| THS - M24 | 24 | 24 | 2400 | 43 | 255 | 12 | |
| THS - M30 | 30 | 30 | 3000 | 56 | 300 | 16 | |
| THS - M36 | 36 | 36 | 3600 | 68 | 340 | 18 | |
| THS - M42 | 42 | 42 | 4200 | 80 | 425 | 20 | |
| THS - M52 | 52 | 52 | 5200 | 97 | 550 | 26 | |
Product Details
Why Choose EATHU Lifting Loops?
Manufactured by EATHU, an ISO 9001-certified lifting system supplier
Safe and efficient lifting for precast concrete elements
Wire rope construction ensures durability and flexibility
Quick and easy installation – no special tools required
Single-use and reusable types available
Full technical documentation and load test reports provided
Installation Instructions
Place the lifting loop into the mold or formwork as per design.
Ensure proper embedment depth and alignment.
After the concrete has cured, attach the loop to crane hook or shackle.
Lift the concrete component in a vertical or approved angle.
Remove loop (if reusable) after positioning.
About EATHU – Your Trusted OEM Partner
EATHU is a leading manufacturer and global exporter of precast concrete lifting systems, anchors, and hardware. With over 15 years of industry experience, we provide:
Full OEM/ODM support
Factory-direct pricing
Strict quality control under ISO 9001
Fast delivery to the Middle East, Europe, and North America
Technical support & custom engineering
