Pin Anchor System for Precast Concrete Lifting – EATHU

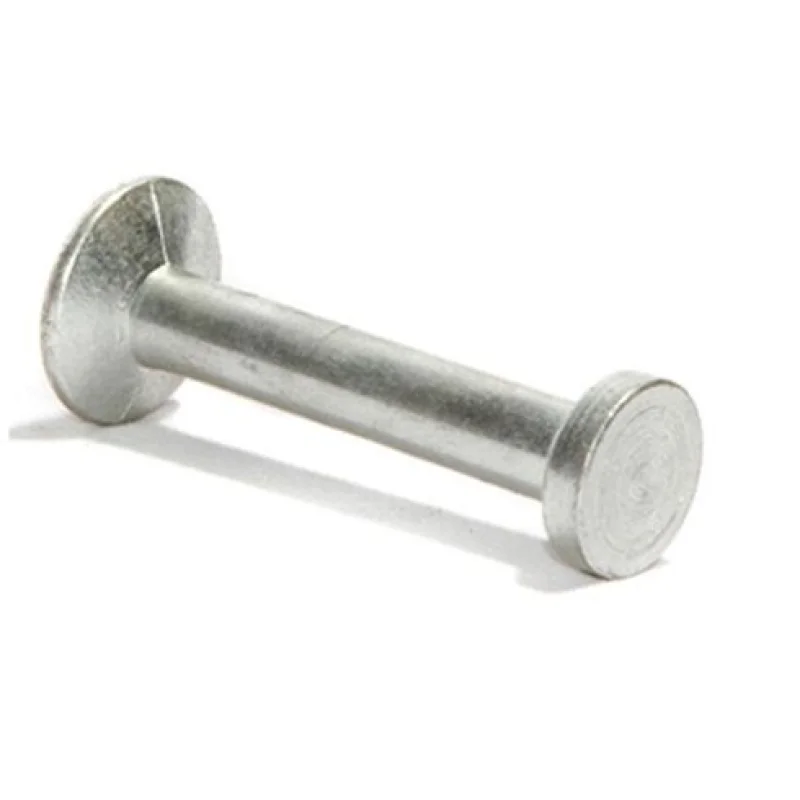

Name: Pin Anchor System for Precast Concrete Lifting – EATHU
Brand: Pin Anchor System for Precast Concrete Lifting – EATHU
SKU: 9999
Price: 1.7 USD
Availability: InStock
Rating: 5 (5 reviews)

Application:

The Pin Anchor System from EATHU is a heavy-duty lifting solution designed for safe, efficient, and repeatable handling of precast concrete elements. As a reliable alternative to the traditional spread anchor system, the pin anchor offers simplified installation, high load capacity, and robust performance, even in challenging jobsite conditions.

Specification:

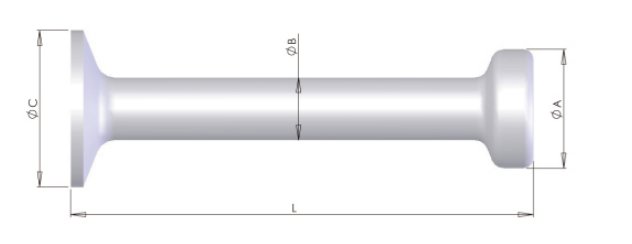

Precast Concrete Hardware-Pin Anchor

Surface Treatment	Material	Type:T	Axial Capacities Load TON	Legths MM	Weight KG / PC	Quantity per BAG
Raw Black / Electro galvanized / Hot-dip Galvanized	Q345 / Stainless steel / Others	T-13-35	1.3 TON	35	0.045	400
		T-13-40		40	0.050	350
		T-13-50		50	1.055	300
		T-13-55		55	0.058	300
		T-13-65		65	0.060	250
		T-13-85		85	0.074	250
		T-13-120		120	0.095	200
		T-13-240		240	0.170	125
		T-25-45	2.5 TON	45	0.119	175
		T-25-55		55	0.120	175
		T-25-65		65	0.131	175
		T-25-70		70	0.136	150
		T-25-85		85	0.155	125
		T-25-100		100	0.175	100
		T-25-120		120	0.195	100
		T-25-140		140	0.220	90
		T-25-170		170	0.255	75
		T-25-210		210	0.280	75
		T-25-280		280	0.389	50
		T-40-55	4 TON	55	0.290	85
		T-40-65		65	0.300	80
		T-40-70		70	0.310	80
		T-40-75		75	0.320	75
		T-40-80		80	0.340	75
		T-40-110		110	0.390	65
		T-40-140		140	0.460	55
		T-40-160		160	0.470	50
		T-40-170		170	0.480	50
		T-40-180		180	0.500	50
		T-40-210		210	0.550	30
		T-40-240		240	0.605	30
		T-40-340		340	0.815	20
		T-50-65	5 TON	65	0.302	60
		T-50-75		75	0.331	60
		T-50-80		80	0.337	50
		T-50-95		95	0.377	50
		T-50-110		110	0.415	50
		T-50-120		120	0.442	50
		T-50-140		140	0.490	50
		T-50-150		150	0.500	50
		T-50-160		160	0.545	50
		T-50-170		170	0.565	50
		T-50-180		180	0.585	50
		T-50-210		210	0.656	45
		T-50-240		240	0.725	45
		T-50-340		340	0.980	30
		T-50-480		480	1.400	20
		T-75-85	7.5 TON	85	0.570	50
		T-75-95		95	0.600	50
		T-75-120		120	0.705	50
		T-75-120		120	0.730	40
		T-75-150		150	0.801	40
		T-75-160		160	0.835	40
		T-75-165		165	0.850	40
		T-75-200		200	0.980	25
		T-75-300		300	1.330	20
		T-75-540		540	2.180
		T-75-680	8 TON	680	2.700
		T-100-85	10 TON	85	0.772
		T-100-100		100	0.820
		T-100-110		110	0.900
		T-100-115		115	0.910
		T-100-120		120	0.920
		T-100-135		135	1.000
T-100-150	150	1.088
T-100-170	170	1.170
T-100-200	200	1.300
T-100-220	220	1.390
T-100-250	250	1.559
T-100-340	340	2.000
T-100-650	650	3.500
T-100-680	680	3.630
T-150-140	15 TON	140	1.800
T-150-150		150	2.000
T-150-165		165	2.200
T-150-200		200	2.530
T-150-210		210	2.610
T-150-300		300	3.440
T-150-400		400	4.270
T-150-840		840	8.200
T-200-165	20 TON	165	2.600
T-200-200		200	2.960
T-200-250		250	3.495
T-200-340		340	4.370
T-200-500		500	5.970
T-200-1000		1000	11.050
T-320-175	32 TON	175	5.490
T-320-280		280	7.100
T-320-500		500	11.200
T-320-700		700	13.540
T-320-1200		1200	21.000
T-450-500	45 TON	500	11.200
T-450-1200	45 TON	1200	21.000

Product Details

Surface Options for Corrosion Resistance

To adapt to various construction environments, EATHU offers two surface finishing options:

Black untreated finish – economical option for indoor or temporary applications.
Hot-dip galvanized pin anchor – offers excellent corrosion resistance, ideal for outdoor, marine, or high-humidity environments.

These surface treatments help extend the life of the anchor, especially in projects exposed to the elements.

Key Features of EATHU Pin Anchors

Heavy-Duty Lifting Performance

Engineered to handle high axial loads, the pin anchor is ideal for lifting heavy precast concrete elements safely and efficiently.

Alternative to Spread Anchor Systems

A streamlined design with fewer components makes the pin anchor system easier to install while providing the same load-bearing reliability.

Multiple Lengths in Each Load Group

Available in various lengths for each weight category, ensuring a perfect match for your structural depth and reinforcement layout.

Optimized for Axial Load Transfer

Designed to work seamlessly with standard lifting clutches and spherical-head lifting systems for secure vertical and angled lifts.

Robust and Reusable

Made from high-quality steel and designed for multiple use cycles, reducing long-term lifting costs.

Why Choose EATHU for Your Pin Anchor Solutions?

Full Compatibility with Precast Lifting Systems

EATHU provides a complete range of precast concrete accessories, including pin anchors, lifting clutches, and spherical-head anchor systems, ensuring all components work seamlessly together to guarantee maximum safety and efficiency on site.

Heavy-Duty Reliability You Can Trust

Our pin anchor systems are designed and tested for high axial load performance, offering a breakage safety factor of 5 across all sizes. They meet or exceed industry standards for lifting heavy precast concrete elements.

Variety of Lengths in Each Load Group

We understand different projects require different depths. That’s why EATHU offers multiple standard lengths per weight category—ready to fit a wide variety of panel thicknesses, beams, and foundation blocks.

Precision Manufacturing & Quality Assurance

All EATHU products are manufactured under an ISO 9001 certified quality system, with strict tolerance control, material traceability, and batch testing—ensuring reliability in every lifting operation.

Global Experience, Local Support

Trusted by clients across Europe, the Middle East, and North America, EATHU offers reliable logistics, responsive support, and technical expertise tailored to your region's regulations and construction standards.

Engineering Support & Customization

Need custom anchor lengths or assistance with load calculations? Our engineering team provides professional technical support, CAD models, and customized anchor solutions for unique lifting scenarios.

Secure and Export-Ready Packaging

EATHU pin anchors are carefully packed to ensure safe transportation and storage:

Plywood Pallets – for bulk orders and easy forklift handling
Plywood Cases – for added protection during international shipment

Customized packaging solutions can be arranged upon request.
