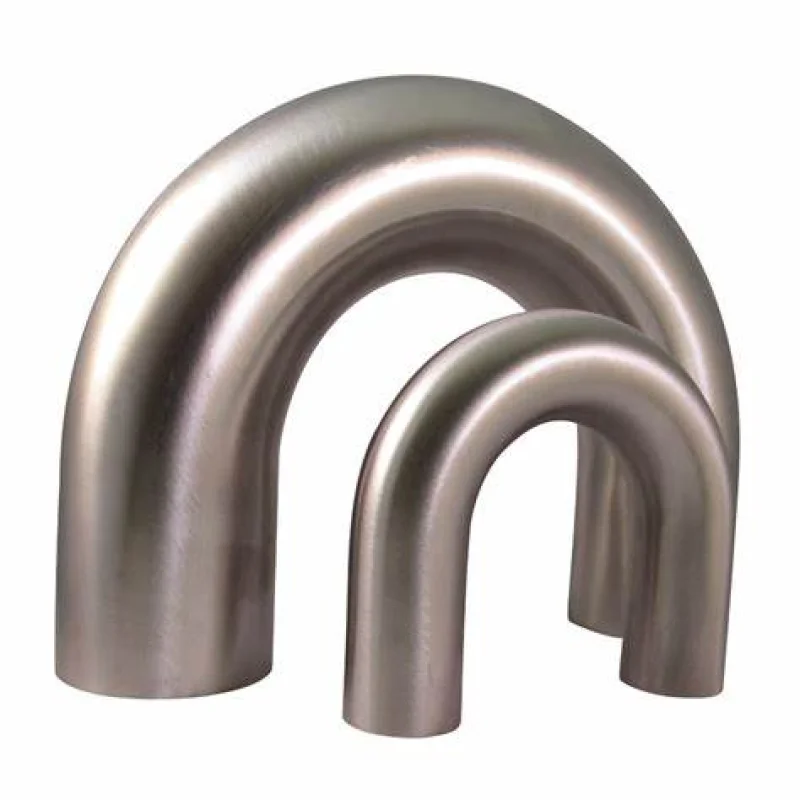

SS Butt Weld 3D & 5D bend
Application:
Size: 1/2"-80"
Material: Stainless Steel
Standard: ASME/ANSI B16.9
End: beveled end
Surface: Black Paint/Rust-proof Oil/Hot Dipped Galvanized
Wall Thickness: SCH10/10S, SCH20/20S, STD, SCH40/40S, XS, SCH80,SCH100, SCH120, SCH140, SCH160, XXS etc.
Specification:
ASME B16.9: 3D & 5D bends

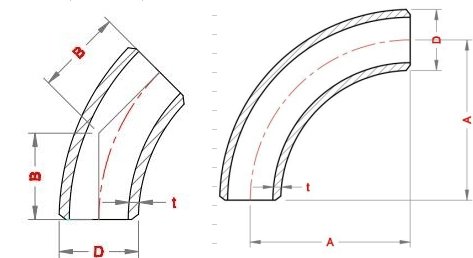

| Dimensions of 3D Elbows - ASME B16.9 | |||
| NPS | OD | Center to End | |
| 90° Elbows, A | 45°Elbows, B | ||
| 3/4 | 26.7 | 57 | 24 |
| 1 | 33.4 | 76 | 31 |
| 1 ¼ | 42.2 | 95 | 39 |
| 1 ½ | 48.3 | 114 | 47 |
| 2 | 60.3 | 152 | 63 |
| 2½ | 73 | 190 | 79 |
| 3 | 88.9 | 229 | 95 |
| 3 ½ | 101.6 | 267 | 111 |
| 4 | 114.3 | 305 | 127 |
| 5 | 141.3 | 381 | 157 |
| 6 | 168.3 | 457 | 189 |
| 8 | 219.1 | 610 | 252 |
| 10 | 273 | 762 | 316 |
| 12 | 323.8 | 914 | 378 |
| 14 | 355.6 | 1067 | 441 |
| 16 | 406.4 | 1219 | 505 |
| 18 | 457 | 1372 | 568 |
| 20 | 508 | 1524 | 632 |
| 22 | 559 | 1676 | 694 |
| 24 | 610 | 1829 | 757 |
| 26 | 660 | 1981 | 821 |
| 28 | 711 | 2134 | 883 |
| 30 | 762 | 2286 | 964 |
| 32 | 813 | 2438 | 1010 |
| 34 | 864 | 2591 | 1073 |
| 36 | 914 | 2743 | 1135 |
| 38 | 965 | 2896 | 1200 |
| 40 | 1016 | 3048 | 1264 |
| 42 | 1067 | 3200 | 1326 |
| 44 | 1118 | 3353 | 1389 |
| 46 | 1168 | 3505 | 1453 |
| 48 | 1219 | 3658 | 1516 |
*All dimensions are in mm unit(inch unit data sheet is also available upon request).
*Tolerances of dimensions are in conformance with ASME B16.9
Product Details
Butt weld 3D & 5D bends is a kind of butt weld fittings.
Pipe bends can be manufactured based on custom radius requirements provided by customers such as 3D, 5D, 6D, 10D, 15D or any other custom radius. Elbows are generally used, when the radius required is 1D, 1.5D or 2D, it is 90 elbow LR or SR.
The 3D&5D bends is very similar with elbow. They have same diameter range, wall thickness, raw material and end form. What is the difference between them? It is the radius. The steel elbow have long radius(R=1.5D) or short radius(R=1D) type. While bends radius is larger, such as 3D, 4D, 5D, 6D, 7D, 8D, 9D and 10D.
Weight Calculation Formula of 5D Bend
W=0.0387 * S( D – S ) * 5* D/ 1000
W = Weight (kg/piece).
S = Thickness Schedule.
D = Nominal Diameter.
Please contact Eathu for the weight list.
Package for bends:
Bundle into pallets, then use strapping and plastic film for reinforcement.
For size over 24" 5D bends, put into container without pallet.
Before the shipment eathu will submit you the packing list.
