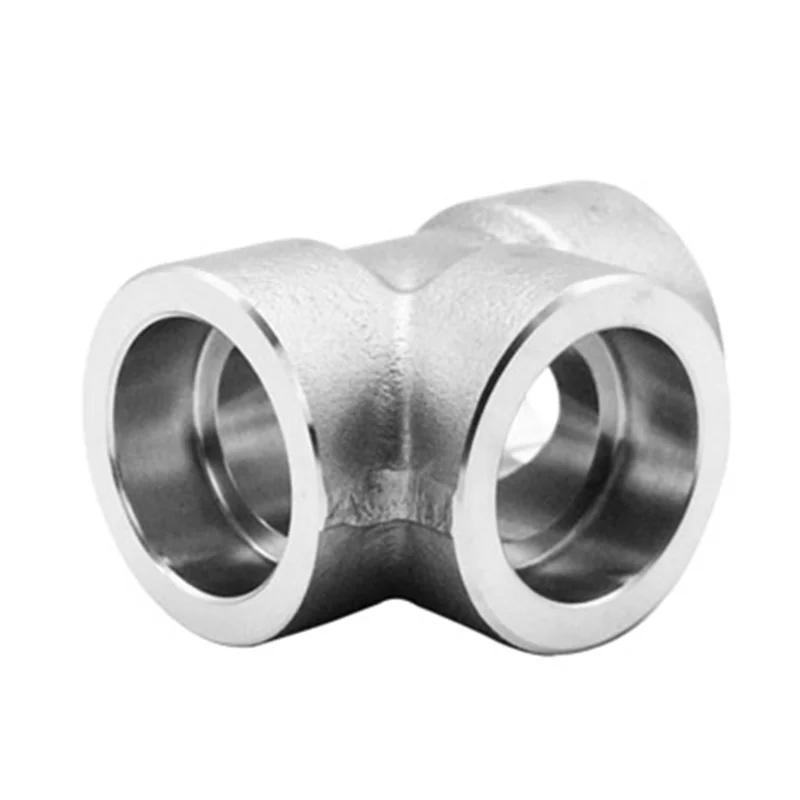

Socket Weld Tee
Application:
A tee is used to branch the pipes or join two or more plumbing pipes.Socket weld Tee is a Tee made by forging process.It can bear high pressure from 3000lbs to 9000lbs.Socket Weld Tee mainly manufactured by round steel or steel ingot .Heat the steel ingot, put them in mold cavities,then forging to blanks by forging machine, and then after the lathe machining forming a high pressure elbow pipe fitting.
Share to:
Specification:

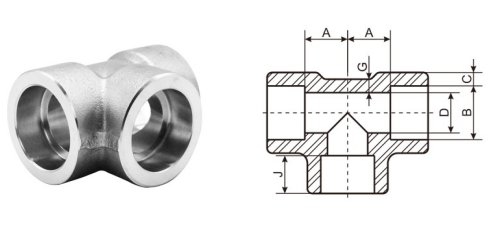

Socket Weld Tee Dimension
| DN | Nom. | Center to Bottom of Socket-A | Socket | Bore Dia.Of Fitting | Socket Wall Thickness（2） | Body Wall Thickness | Depth | ||||||||||||||
| Pipe | Bore | D | C | G | of | ||||||||||||||||
| Size | 90°Elbows | 45°Elbows | Dia. | Class Designation | Class Designation | Socket | |||||||||||||||
| Tees,Crosses | B | Min. | |||||||||||||||||||
| Class Designation | Class Designation | Class Designation | 3000 | 6000 | 9000 | 3000 | 6000 | 9000 | J | ||||||||||||
| 3000 | 6000 | 9000 | 3000 | 6000 | 9000 | 3000 | 6000 | 9000 | Ave. | Min. | Ave. | Min. | Ave. | Min. | Min. | Min. | Min. | ||||
| 6 | 1/8" | 11 | 11 | --- | 8 | 8 | --- | 10.8 | 6.9 | 4 | --- | 3.18 | 3.18 | 3.96 | 3.43 | --- | --- | 2.41 | 3.15 | --- | 9.5 |
| 8 | 1/4" | 11 | 13.5 | --- | 8 | 8 | --- | 14.2 | 9.3 | 6.4 | --- | 3.78 | 3.3 | 4.6 | 4.01 | --- | --- | 3.02 | 3.68 | --- | 9.5 |
| 10 | 3/8" | 13.5 | 15.5 | --- | 8 | 11 | --- | 17.6 | 12.6 | 9.2 | --- | 4.01 | 3.5 | 5.03 | 4.37 | --- | --- | 3.2 | 4.01 | --- | 9.5 |
| 15 | 1/2" | 15.5 | 19 | 25.5 | 11 | 12.5 | 15.5 | 21.8 | 15.8 | 11.8 | 6.4 | 4.67 | 4.09 | 5.97 | 5.18 | 9.35 | 8.18 | 3.73 | 4.78 | 7.47 | 9.5 |
| 20 | 3/4" | 19 | 22.5 | 28.5 | 13 | 14 | 19 | 27.2 | 21 | 15.6 | 11.1 | 4.9 | 4.27 | 6.96 | 6.04 | 9.78 | 8.56 | 3.91 | 5.56 | 7.82 | 12.5 |
| 25 | 1" | 22.5 | 27 | 32 | 14 | 17.5 | 20.5 | 33.9 | 26.7 | 20.7 | 15.2 | 5.69 | 4.98 | 7.92 | 6.93 | 11.38 | 9.96 | 4.55 | 6.35 | 9.09 | 12.5 |
| 32 | 1-1/4" | 27 | 32 | 35 | 17.5 | 20.5 | 22.5 | 42.7 | 35.1 | 29.5 | 22.8 | 6.07 | 5.28 | 7.92 | 6.93 | 12.14 | 10.62 | 4.85 | 6.35 | 9.7 | 12.5 |
| 40 | 1-1/2" | 32 | 38 | 38 | 20.5 | 25.5 | 25.5 | 48.8 | 40.9 | 34 | 28 | 6.35 | 5.54 | 8.92 | 7.8 | 12.7 | 11.12 | 5.08 | 7.14 | 10.15 | 12.5 |
| 50 | 2" | 38 | 41 | 54 | 25.5 | 28.5 | 28.5 | 61.2 | 52.5 | 42.9 | 38.2 | 6.93 | 6.04 | 10.92 | 9.5 | 13.84 | 12.12 | 5.54 | 8.74 | 11.07 | 16 |
| 65 | 2-1/2" | 41 | --- | --- | 28.5 | --- | --- | 73.9 | 62.7 | --- | --- | 8.76 | 7.67 | --- | --- | --- | --- | 7.01 | --- | --- | 16 |
| 80 | 3" | 57 | --- | --- | 32 | --- | --- | 89.8 | 78 | --- | --- | 9.52 | 8.3 | --- | --- | --- | --- | 7.62 | --- | --- | 16 |
| 100 | 4" | 66.5 | --- | --- | 41 | --- | --- | 115.2 | 102.3 | --- | --- | 10.69 | 9.35 | --- | --- | --- | --- | 8.56 | --- | --- | 16 |
(1) Dimensions in Millimeters.
(2) Average of socket wall thickness around periphery shall be no less than listed values. The minimum values are permitted in localized areas.
(3) Upper and lower values for each size are the respective maximum and minimum dimensions.
