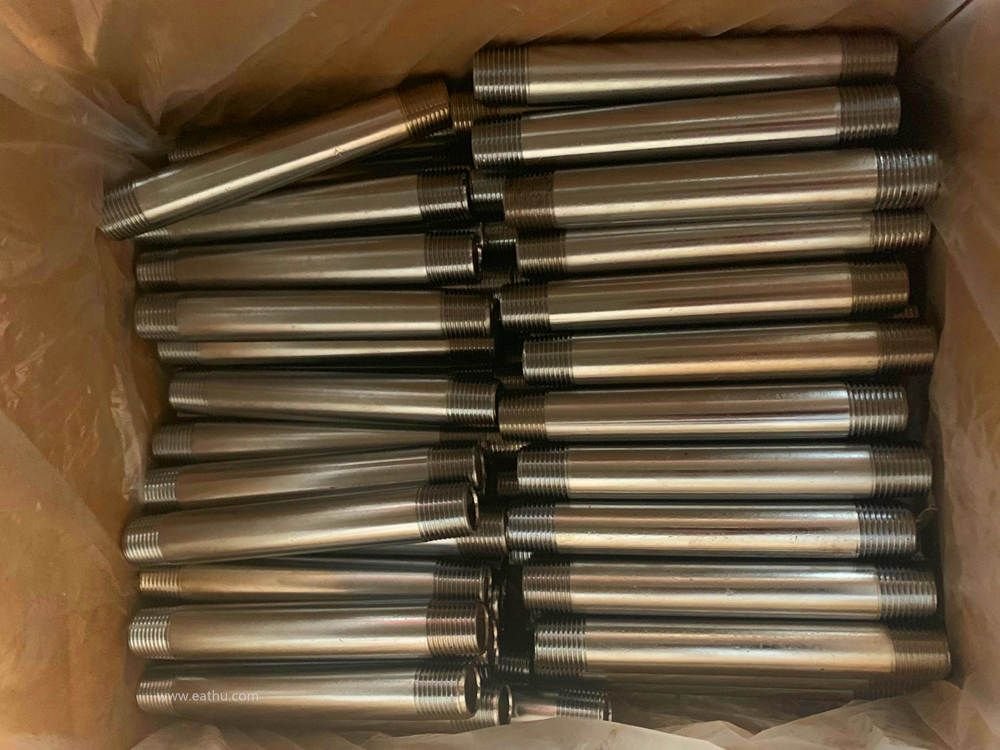

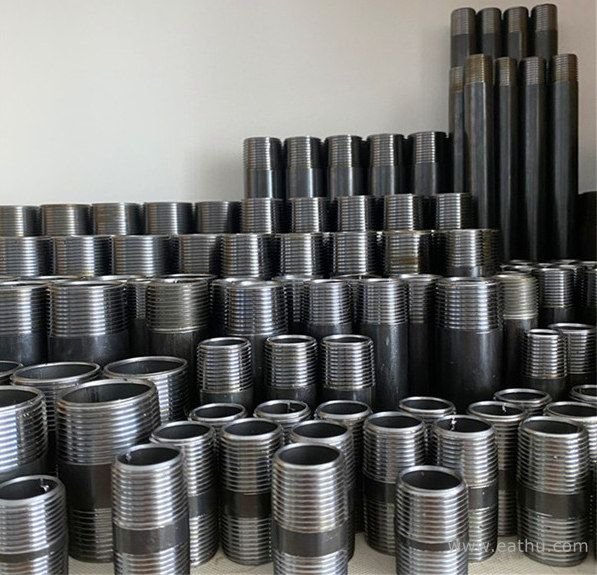

Steel Pipe Nipple ASTM A733
Application:
Steel Pipe Nipple Extension Nipple Long Threaded Pipes BSP NPT Standard Sch40 Pipes Nipple Barrel Nipple Swage Hose Nipple King Nipple Extension Nipple
Material: ASTM A53/A106/A333/S304/S304L/S316/S316L
Standard Thread: NPT(ASME B1.20.1,B16.3), BSPT(ISO 7/1), R , G thread
Dimensions: ASTM A733, ISO49, DIN2950, EN10242
Testing Pressure: 2.5MPa/Working Pressure: 1.6MPa
Schedule: 40/80/160/XXS
SurfaceGalvanized / Black / Sandblast
Share to:
Specification:
Steel Pipe Nipple ASTM A733
| Type of Nipple | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 3-1/2 | 4 | 5 | 6 | 8 |
| CLOSE | 3/4 | 7/8 | 1 | 11/8 | 13/8 | 1-1/2 | 15/8 | 13/4 | 2 | 2-1/2 | 25/8 | 23/4 | 27/8 | 3 | 31/8 | 31/2 |
| Short and long type | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 | … | … | … | … | … | … | … | … | … | … | … |
| 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | … | … | … | … | … | … | … | … | |
| 2-1/2 | 2-1/2 | 2-1/2 | 2-1/2 | 2-1/2 | 2-1/2 | 2-1/2 | 2-1/2 | 2-1/2 | … | … | … | … | … | … | … | |
| 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | … | … | … | … | … | |
| 31/2 | 31/2 | 31/2 | 31/2 | 31/2 | 31/2 | 31/2 | 31/2 | 31/2 | 31/2 | 31/2 | … | … | … | … | … | |
| 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | … | … | … | |
| 4-1/2 | 4-1/2 | 4-1/2 | 4-1/2 | 4-1/2 | 4-1/2 | 4-1/2 | 4-1/2 | 4-1/2 | 4-1/2 | 4-1/2 | 4-1/2 | 4-1/2 | 4-1/2 | 4-1/2 | … | |
| 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| 5-1/2 | 5-1/2 | 5-1/2 | 5-1/2 | 5-1/2 | 5-1/2 | 5-1/2 | 5-1/2 | 5-1/2 | 5-1/2 | 5-1/2 | 5-1/2 | 5-1/2 | 5-1/2 | 5-1/2 | 5-1/2 | |
| 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | |
| 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | |
| 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | |
| 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |
| 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | |
| 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | |
| 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
| 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | |
| 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | |
| 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | |
| 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | |
| 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |
| 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | |
| 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | |
| 23 | 23 | 23 | 23 | 23 | 23 | 23 | 23 | 23 | 23 | 23 | 23 | 23 | 23 | 23 | 23 | |
| 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
Noted: Other lengths and size available. Grooved end, SQ end and Bevel end available. Contact us for details.
