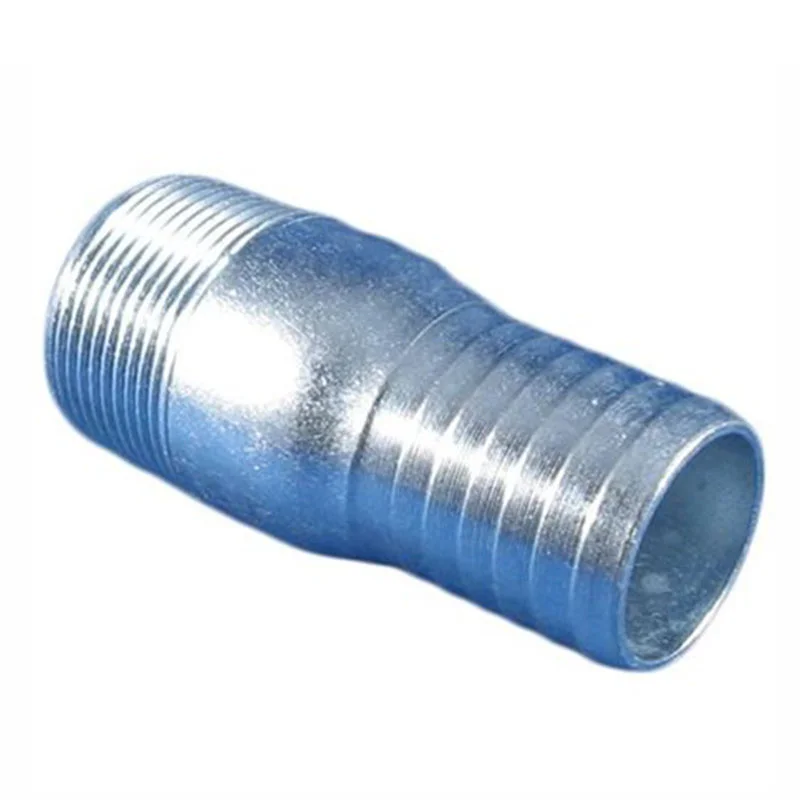

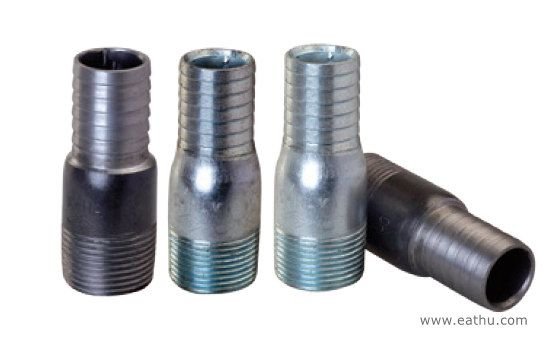

Steel Male Insert Adapter
Application:
Use in cold water pressure applications
Connects to polyethylene tubing
Install with hose clamps
Specification:
Insert Adapter/poly insert male adapter

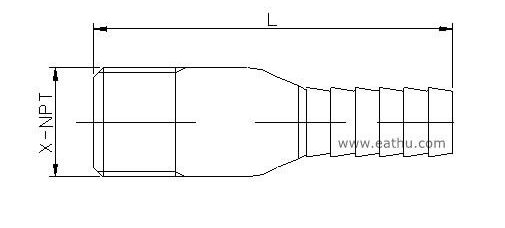

| size | OD | Length(mm) |
| 1/2" | 21.3 | 79 |
| 3/4" | 26.7 | 79 |
| 1" | 33.4 | 83.5 |
| 1-1/4" | 42.2 | 90 |
| 1-1/2" | 48.3 | 103.5 |
| 2" | 60.3 | 103.5 |
| 2-1/2" | 73 | 131 |
| 3" | 88.9 | 163 |
| 4" | 114.3 | 174 |
| 6" | 165.1 | 182 |
Product Details
Features:
• Pipe: Carbon steel
• Thread: NPT / BSP
• Extra long barb is available upon request.
• Finished: Anti-Rust Oil or Galvanzied
• Material: Carbon Steel
• Brand: Eathu
• Plated male adapter meets NSF / ANSI 372 lead free requirement.
• Plated steel for greater corrosion resistance than unplated steel, prevent rust and weathering.
• Common use: Cold water sprinkler, irrigation, and pump installation.
• Other sizes available, contact us for details.
• For flexible polyethylene plastic pipe
• MOQ: size less than 1-1/2": 300pcs; 1-1/2" to 3": 200pcs; over 3": 100pcs
Please contact eathu for more information.
