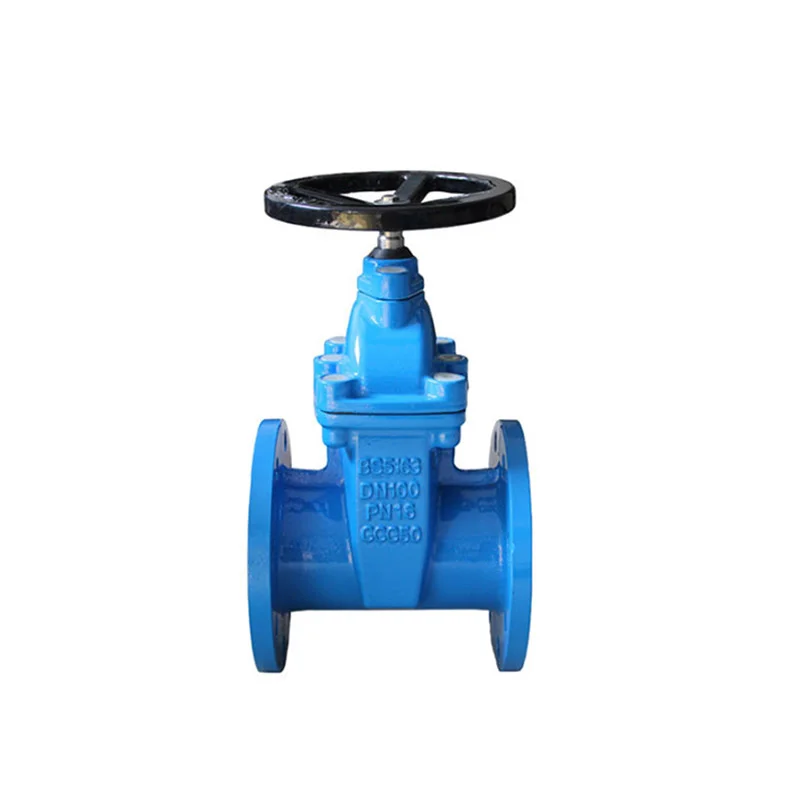

BS5163 Resilient Seated Flanged Gate Valve
Application:
BS5163 Resilient Seated Flanged Gate Valve
Design and manufacture conform to BS5150 & BS5163 PN16
Face to face dimensions conform to BS EN558-1 PN16
Flange dimensions conform to EN1092-2
Testing conform to BS6755 / BS EN12266-1
Epoxy coating or Special coating for potable water
Operated by Handwheel operated (gear box be optional)
Share to:
Specification:
Parts and Materials of BS5163 Resilient Seated Flanged Gate Valve:
| NO | PART NAME | METERIAL |  | |||||
| 1 | BODY | DUCTILE IRON | ||||||
| 2 | WEDGE | DUCTILE IRON+EPDM | ||||||
| 3 | BONNET | DUCTILE IRON | ||||||
| 4 | STEM | STAINLESS STEEL | ||||||
| 5 | STEM NUT | BRASS | ||||||
| 6 | HAND WHEEL | CAST IRON | ||||||
| 7 | O RING | EPDM/BUNA | ||||||
| 8 | BOLT | STEEL | ||||||

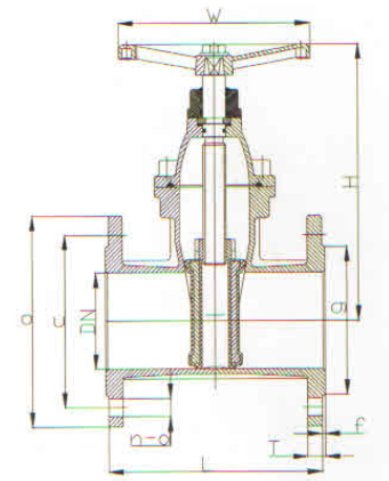

Dimensions (mm) of BS5163 Resilient Seated Flanged Gate Valve:
| DN | L | H | W | O | C | g | f | T | n-ød | ||
| 50 | 178 | 210 | 160 | 165 | 125 | 99 | 3 | 19 | 4-ø18 | ||
| 65 | 190 | 237 | 200 | 185 | 145 | 118 | 3 | 19 | 4-ø18 | ||
| 80 | 203 | 274 | 200 | 200 | 160 | 132 | 3 | 19 | 8-ø18 | ||
| 100 | 229 | 300 | 200 | 220 | 180 | 156 | 3 | 19 | 8-ø18 | ||
| 125 | 254 | 364 | 250 | 250 | 210 | 184 | 3 | 19 | 8-ø18 | ||
| 150 | 267 | 404 | 250 | 285 | 240 | 211 | 3 | 19 | 8-ø22 | ||
| 200 | 292 | 497 | 320 | 340 | 295 | 165 | 3 | 20 | 12-ø22 | ||
| 250 | 330 | 590 | 370 | 400 | 355 | 319 | 3 | 22 | 12-ø26 | ||
| 300 | 356 | 667 | 370 | 455 | 410 | 370 | 4 | 24.5 | 12-ø26 | ||
| 350 | 381 | 882 | 450 | 520 | 470 | 429 | 4 | 26.5 | 16-ø26 | ||
| 400 | 406 | 956 | 450 | 580 | 525 | 480 | 4 | 28 | 16-ø30 | ||
| 450 | 432 | 1027 | 640 | 640 | 585 | 548 | 4 | 30 | 20-ø30 | ||
| 500 | 457 | 1106 | 640 | 715 | 650 | 609 | 4 | 31.5 | 20-ø33 | ||
| 600 | 508 | 1258 | 640 | 840 | 770 | 720 | 5 | 36 | 20-ø33 | ||
