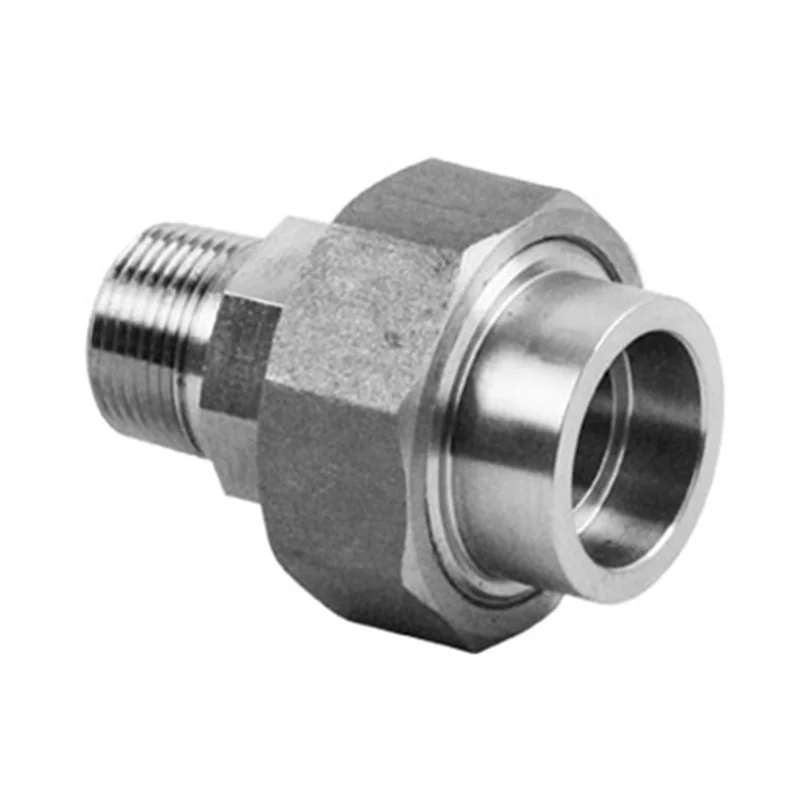

Socket Weld x Female Threaded Union
Application:
Size: 1/8"-4" threaded and socket weld type
Pressure:
Socket weled : 3000LB 6000LB 9000LB (sch80 sch160 xxs)
Threaded : 2000LB 3000LB 6000LBS (sch80 sch160 xxs)
Conection: Thread (NPT, BSP,RP, G) ,Socket Welding
Type: Elbow, Tee, nipple, full coupling, half coupling, lateral, cross,cap, plug, hex head nipple, swage nipple, union, weldolet, sockolet, threadolet, nipolet, elbolet, latrolet etc.
Standard: ANSI B16.11,EN10241, BS3799,JIS B2316,MSS SP-83,MSS SP-79;
Material: Stainless steel, Carbon steel and Duplex stainless steel
Specification:

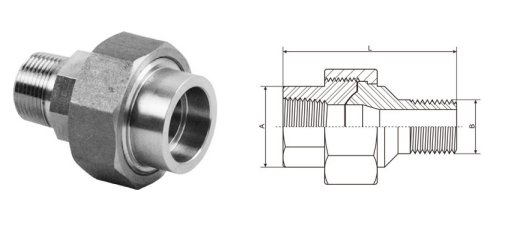

Socket Weld x Female Threaded Union Dimension
| Nom.Pipe | A² | B | L |
| Size | (Min) | ||
| 1/4" | 19 | 13.7 | 55.4 |
| 3/8" | 22.9 | 17.1 | 60 |
| 1/2" | 27.7 | 21.3 | 68 |
| 3/4" | 33.5 | 26.7 | 75.9 |
| 1" | 41.4 | 33.4 | 86 |
| 1-1/4" | 50.5 | 42.2 | 95.1 |
| 1-1/2" | 57.2 | 48.3 | 100.5 |
| 2" | 70.1 | 60.3 | 112.1 |
(1) Dimensions in Millimeters.
(2) Dimensions refer to MSS SP-83 Table 5.
(3) Thickness in accordance with ANSI/ASME B1.20.1 1983
(4) Dimensions may vary according to the customer's and manufacturer's requirement.
