Forged Pipe Fittings

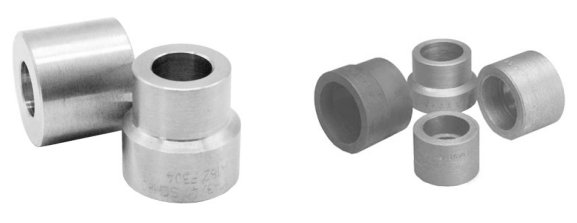

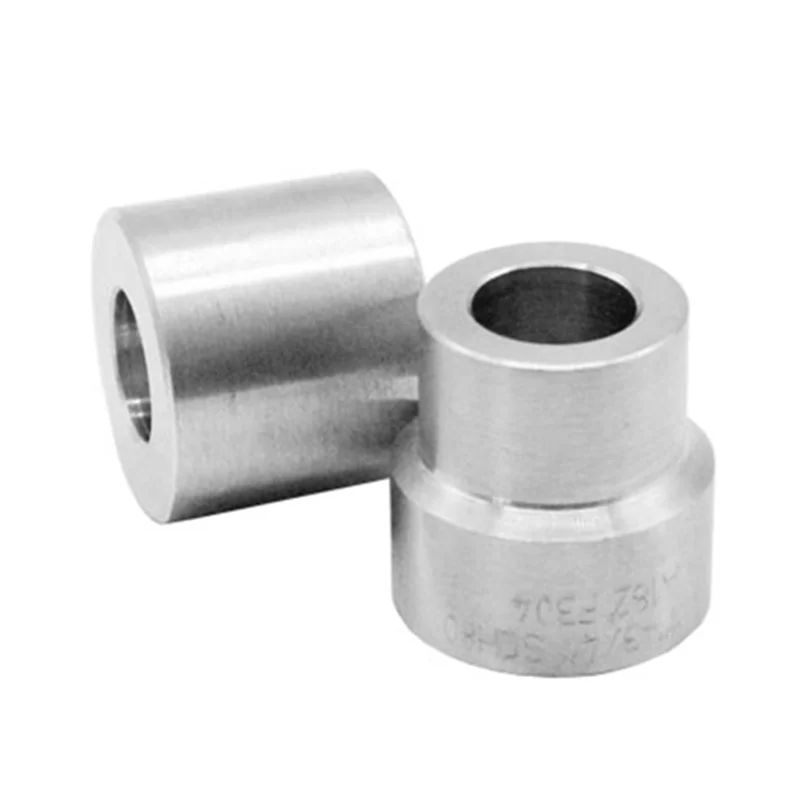

Socket Weld Reducing Inserts

Name: Socket Weld Reducing Inserts
Brand: Socket Weld Reducing Inserts
Availability: InStock
Rating: 5 (5 reviews)

Application:

Size: 1/8"-4" threaded and socket weld type

Pressure:

Socket weled : 3000LB 6000LB 9000LB (sch80 sch160 xxs)

Threaded : 2000LB 3000LB 6000LBS (sch80 sch160 xxs)

Conection: Thread (NPT, BSP,RP, G) ,Socket Welding

Type: Elbow, Tee, nipple, full coupling, half coupling, lateral, cross,cap, plug, hex head nipple, swage nipple, union, weldolet, sockolet, threadolet, nipolet, elbolet, latrolet etc.

Standard: ANSI B16.11,EN10241, BS3799,JIS B2316,MSS SP-83,MSS SP-79;

Material: Stainless steel, Carbon steel and Duplex stainless steel

Specification:

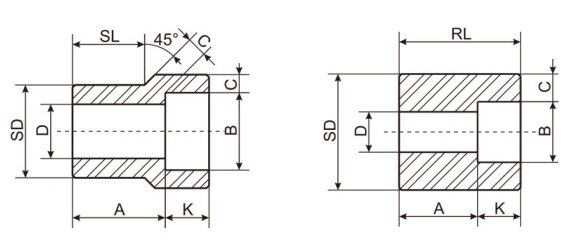

Socket Weld Reducing Insert Dimension

Nom.	Type		Socket		Shank	Laying Length		Bore		Wall Min.		Length
Pipe			Dia.	Depth	Dia.	A		D		C		SL		RL(Min.)
Size			B	Min.	SD							SL		RL(Min.)
	3000	6000		K		3000	6000	3000	6000	3000	6000	3000	6000	3000	6000
3/8"×1/4"	1	1	14.35	10	17.15	19	21	9	6.5	3.78	4.6	14	16	---	---
1/2"×3/8"	1	1	17.78	10	21.34	21	23	12.5	9	4.01	5.03	16	16	---	---
1/2"×1/4"	1	1	14.35	10	21.34	21	21	9	6.5	3.78	4.6	16	16	---	---
3/4"×1/2"	1	1	21.97	10	26.67	22	25	16	11.5	4.67	5.97	17	19	---	---
3/4"×3/8"	2	1	17.78	10	26.67	16	22	12.5	9	4.01	5.03	---	19	27
3/4"×1/4"	2	2	14.35	10	26.67	18	22	9	6.5	3.78	4.6	---	---	27	32
1"×3/4"	1	1	27.31	13	33.4	24	28	21	15.5	4.9	6.96	19	21	---	---
1"×1/2"	2	1	21.97	10	33.4	16	28	16	11.5	4.67	5.97	---	21	28	---
1"×3/8"	2	2	17.78	10	33.4	18	22	12.5	9	4.01	5.03	---	---	28	33
1"×1/4"	2	2	14.35	10	33.4	19	24	9	6.5	3.78	4.6	---	---	28	33
1-1/4"×1"	1	1	34.04	13	42.16	25	30	26.5	20.5	5.69	7.92	21	22	---	---
1-1/4"×3/4"	2	2	27.31	13	42.16	18	21	21	15.5	4.9	6.96	---	---	32	35
1-1/4"×1/2"	2	2	21.97	10	42.16	19	22	16	11.5	4.67	5.97	---	---	32	35
1-1/4"×3/8"	2	2	17.78	10	42.16	21	24	12.5	9	4.01	5.03	---	---	32	35
1-1/4"×1/4"	2	2	14.35	10	42.16	22	25	9	6.5	3.78	4.6	---	---	32	35
1-1/2"×1-1/4"	1	1	42.8	13	48.26	28	35	35	29.5	6.07	7.92	22	25	---	---
1-1/2"×1"	2	1	34.04	13	48.26	18	29	26.5	20.5	5.69	7.92	---	25	33	---
1-1/2"×3/4"	2	2	27.31	13	48.26	19	25	21	15.5	4.9	6.96	---	---	33	40
1-1/2"×1/2"	2	2	21.97	10	48.26	21	27	16	11.5	4.67	5.97	---	---	33	40
1-1/2"×3/8"	2	2	17.78	10	48.26	22	28	12.5	9	4.01	5.03	---	---	33	40
2"×1-1/2"	1	1	48.9	13	60.32	32	39	41	34	6.35	8.9	25	28	---	---
2"×1-1/4"	2	2	42.8	13	60.32	21	24	35	29.5	6.07	7.92	---	---	38	41
2"×1"	2	2	34.04	13	60.32	22	25	26.5	21	5.69	7.92	---	---	38	41
2"×3/4"	2	2	27.31	13	60.32	24	27	21	15.5	4.9	6.96	---	---	38	41
2"×1/2"	2	2	21.97	10	60.32	25	28	16	11.5	4.67	5.97	---	---	38	41
2-1/2"×2"	1	1	61.37	16	73.02	46	43	52.5	43	6.93	10.92	32	38	---	---
2-1/2"×1-1/2"	2	2	48.9	13	73.02	35	35	41	34	6.35	---	---	---	54	54
2-1/2"×1-1/4"	2	2	42.8	13	73.02	37	37	35	29.5	6.07	---	---	---	54	54
2-1/2"×1"	2	2	34.04	13	73.02	38	38	26.5	21	5.69	---	---	---	54	54
2-1/2"×3/4"	2	2	27.31	13	73.02	40	38	21	15.5	4.9	---	---	---	54	54
3"×2-1/2"	1	1	74.07	16	88.9	38	57	62.5	54	8.76	---	32	45	---	---
3"×2"	2	2	61.37	16	88.9	25	32	52.5	43	6.93	---	---	---	48	54
3"×1-1/2"	2	2	48.9	13	88.9	29	32	41	34	6.35	---	---	---	48	54
3"×1-1/4"	2	2	42.8	13	88.9	30	32	35	29.5	6.07	---	---	---	48	54
3"×1"	2	2	34.04	13	88.9	32	32	26.5	21	5.69	---	---	---	48	54
4"×3"	2	---	90.04	16	114.3	33	---	78	---	9.5	---	---	---	60	---
4"×2-1/2"	2	---	74.07	16	114.3	38	---	62.5	---	8.76	---	---	---	60	---
4"×2"	2	---	61.37	16	114.3	38	---	52.5	---	6.93	---	---	---	60	---
4"×1-1/2"	2	---	48.9	13	114.3	42	---	41	---	6.35	---	---	---	60	---
4"×1-1/4"	2	---	42.8	13	114.3	43	---	35	---	6.07	---	---	---	60	---

(1) Dimensions in Millimeters.

(2) At the option of the manufacturer type 2 reducer may be furnished in type 1 configuration.

Dimensional Tolerance of Reducer Insert

Laying Length A	Socket 3/8" through 3/4" +1.50mm/-0.00mm
	Size 1" through 2" +2.00mm/-0.00mm
	Size 2-1/2" through 4" +2.50mm/-0.00mm
Socket Diameter B	Size 1/4" through 2" ±0.25mm
Socket Diameter B	Size 2-1/2" through 3" +0.40mm/-0.25mm
Bore D	Size 1/4" through 2" ±0.80mm
Bore D	Size 2-1/2" through 3" ±1.50mm
Shank Diamter SD	Size 3/8" through 1-1/2" ±0.25mm
	Size 2" through 3" ±0.50mm
	Size 4" through ±0.75mm
Shank Length SL	Size 3/8" through 3/4" +0.00mm/-1.50mm
	Size 1" through 2" +0.00mm/-2.00mm
	Size 2-1/2" through 4" +0.00mm/-2.50mm

Product Details

Socket Weld Reducing Insert: In pipeline system, the Socket Weld Reducing Insert is to change the direction of the pipeline. Socket Weld Reducing Insert manufactured by round steel or steel ingot .Heat the steel ingot, put them in mold cavities,then forging to blanks by forging machine, and then after the lathe machining forming a high pressure elbow pipe fitting.
