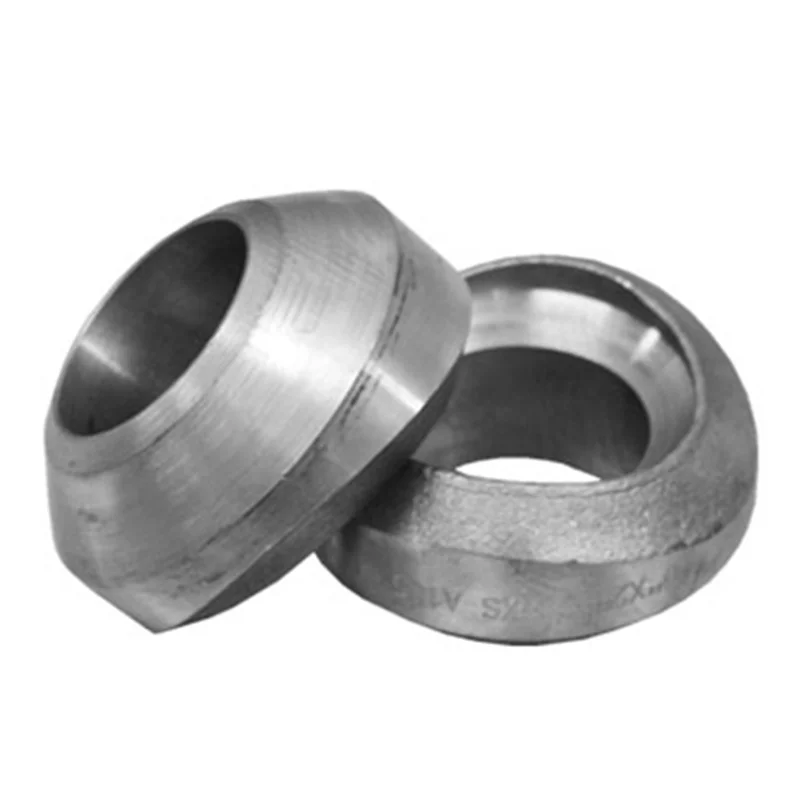

Butt Weld Outlet
Application:
"Butt Weld Outlet" is a type of pipe fitting used to create branches in a piping system. It is welded onto the main pipe and features an outlet that can be used to connect to other pipes or equipment. This fitting is commonly used when adding branch pipes or equipment is necessary, providing a secure connection method.
Specification:
Butt Weld Outlet Dimension

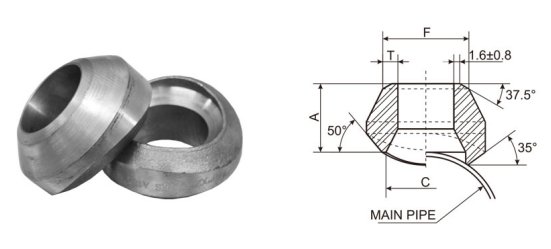

| Out-Let | Reducing Way | ||||
| Pipe | A | C | F | T | |
| NPS | Standard | Extra | |||
| Weight | Strong | ||||
| 1/8" | 16 | 13.7 | 10.3 | 1.73 | 2.41 |
| 1/4" | 16 | 13.7 | 13.7 | 2.24 | 3.02 |
| 3/8" | 19 | 17.1 | 17.1 | 2.31 | 3.2 |
| 1/2" | 19 | 21.3 | 21.3 | 2.77 | 3.73 |
| 3/4" | 22 | 26.7 | 26.7 | 2.87 | 3.91 |
| 1" | 27 | 33.4 | 33.4 | 3.38 | 4.55 |
| 1-1/4" | 32 | 42.2 | 42.2 | 3.56 | 4.85 |
| 1-1/2" | 33 | 48.3 | 48.3 | 3.68 | 5.08 |
| 2" | 38 | 60.3 | 60.3 | 3.91 | 5.54 |
| 2-1/2" | 41 | 73 | 73 | 5.16 | 7.01 |
| 3" | 44 | 88.9 | 88.9 | 5.49 | 7.62 |
| 3-1/2" | 48 | 101.6 | 101.6 | 5.74 | 8.56 |
| 4" | 51 | 114.3 | 114.3 | 6.02 | 8.56 |
| 5" | 57 | 141.3 | 141.3 | 6.55 | 9.53 |
| 6" | 78 | 168.3 | 168.3 | 7.11 | 10.97 |
| 8" | 99 | 219.3 | 219.3 | 8.11 | 12.7 |
| 10" | 94 | 273.1 | 273.1 | 9.27 | 12.7 |
| 12" | 103 | 323.9 | 323.9 | 9.53 | 12.7 |
| 14" | 100 | 355.6 | 355.6 | 9.53 | 12.7 |
| 16" | 106 | 406.4 | 406.4 | 9.53 | 12.7 |
| 18" | 111 | 457.2 | 457.2 | 9.53 | 12.7 |
| 20" | 119 | 508 | 508 | 9.53 | 12.7 |
| 24" | 140 | 609.6 | 609.6 | 9.53 | 12.7 |

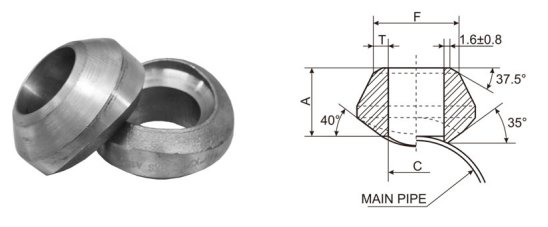

| Out-Let | Staight Way | ||||
| Pipe | A | C | F | T | |
| NPS | Standard | Extra | |||
| Weight | Strong | ||||
| 1/8" | --- | --- | --- | --- | --- |
| 1/4" | 16 | 11.5 | 13.7 | 2.24 | 3.02 |
| 3/8" | 19 | 14.5 | 17.1 | 2.31 | 3.2 |
| 1/2" | 19 | 16.5 | 21.3 | 2.77 | 3.73 |
| 3/4" | 22 | 21.5 | 26.7 | 2.87 | 3.91 |
| 1" | 27 | 27.2 | 33.4 | 3.38 | 4.55 |
| 1-1/4" | 32 | 36 | 42.2 | 3.56 | 4.85 |
| 1-1/2" | 33 | 42 | 48.3 | 3.68 | 5.08 |
| 2" | 38 | 53 | 60.3 | 3.91 | 5.54 |
| 2-1/2" | 41 | 65 | 73 | 5.16 | 7.01 |
| 3" | 44 | 80 | 88.9 | 5.49 | 7.62 |
| 3-1/2" | --- | --- | --- | --- | --- |
| 4" | 51 | 104 | 114.3 | 6.02 | 8.56 |
(1) Dimensions in Millimeters.
(2) Weld Bevel in accordance with ASME B16.25
(3) Outside size 4 and less fit a number of run pipe sizes and the fitting are marked accordingly.
(4) Outside size 5 and up order to specific size combination.
Dimensional tolerance of MSS-SP97
| Item | 1/8"to3/4" | 1"to4" | 5"to12" | 14"to24 | |
| Face of fitting to crotch(A) | ±0.76 | ±1.52 | ±3.05 | ±4.83 | |
Product Details
Size: 1/8"-4" threaded and socket weld type
Pressure:
Socket weled : 3000LB 6000LB 9000LB (sch80 sch160 xxs)
Threaded : 2000LB 3000LB 6000LBS (sch80 sch160 xxs)
Conection: Thread (NPT, BSP,RP, G) ,Socket Welding
Type: Elbow, Tee, nipple, full coupling, half coupling, lateral, cross,cap, plug, hex head nipple, swage nipple, union, weldolet, sockolet, threadolet, nipolet, elbolet, latrolet etc.
Standard: ANSI B16.11,EN10241, BS3799,JIS B2316,MSS SP-83,MSS SP-79;
Material: Stainless steel, Carbon steel and Duplex stainless steel
