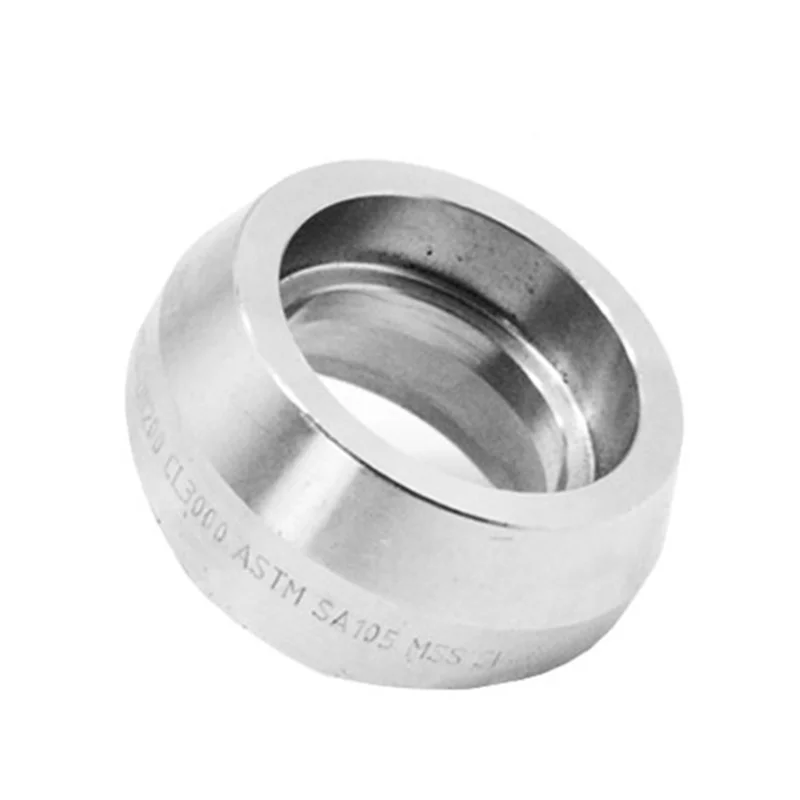

Socket Weld Outlet
Application:
Size: 1/8"-4" threaded and socket weld type
Pressure:
Socket weled : 3000LB 6000LB 9000LB (sch80 sch160 xxs)
Threaded : 2000LB 3000LB 6000LBS (sch80 sch160 xxs)
Conection: Thread (NPT, BSP,RP, G) ,Socket Welding
Type: Elbow, Tee, nipple, full coupling, half coupling, lateral, cross,cap, plug, hex head nipple, swage nipple, union, weldolet, sockolet, threadolet, nipolet, elbolet, latrolet etc.
Standard: ANSI B16.11,EN10241, BS3799,JIS B2316,MSS SP-83,MSS SP-79;
Material: Stainless steel, Carbon steel and Duplex stainless steel
Specification:

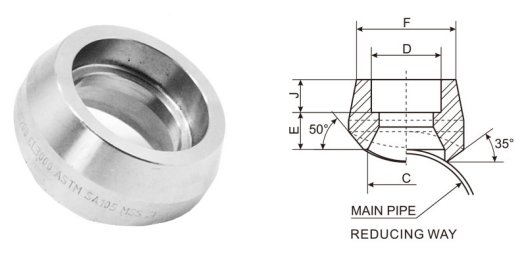

Socket Weld Outlet Dimension
| Out-Let | Reducing Way | |||||||||
| Pipe | C | D | F | J | E | |||||
| NPS | (Min.) | (Min.) | ||||||||
| 3000 | 6000 | 3000 | 6000 | 3000 | 6000 | 3000 | 6000 | 3000 | 6000 | |
| 1/8" | 13.7 | --- | 10.8 | --- | 22 | --- | 9.7 | --- | 10.4 | --- |
| 1/4" | 13.7 | --- | 14.2 | --- | 22 | --- | 9.7 | --- | 10.4 | --- |
| 3/8" | 19.1 | --- | 17.6 | --- | 25.9 | --- | 9.7 | --- | 12.7 | --- |
| 1/2" | 21.3 | 16.6 | 21.8 | 21.8 | 31.4 | 38 | 9.7 | 9.7 | 16 | 23.9 |
| 3/4" | 26.7 | 21.2 | 27.2 | 27.2 | 37.1 | 44 | 12.7 | 12.7 | 16 | 25.4 |
| 1" | 33.4 | 27 | 33.9 | 33.9 | 45.5 | 57 | 12.7 | 12.7 | 22.4 | 28.7 |
| 1-1/4" | 42.2 | 35.8 | 42.7 | 42.7 | 57 | 54 | 12.7 | 12.7 | 22.4 | 30.2 |
| 1-1/2" | 48.3 | 41.2 | 48.8 | 48.8 | 64 | 76 | 12.7 | 12.7 | 23.9 | 31.8 |
| 2" | 60.3 | 51.6 | 61.2 | 61.2 | 76 | 92 | 15.8 | 15.8 | 23.9 | 36.6 |
| 2-1/2" | 73.2 | --- | 73.9 | --- | 92 | --- | 15.8 | --- | 25.4 | --- |
| 3" | 88.9 | --- | 89.8 | --- | 109.2 | --- | 15.8 | --- | 30.2 | --- |
| 4" | 114.3 | --- | 115.2 | --- | 140 | --- | 19.1 | --- | 30.2 | --- |

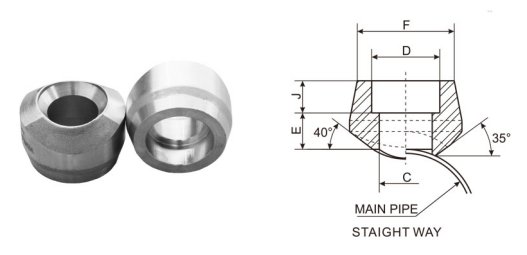

| Out-Let | Staight Way | ||||
| Pipe | C | D | F | J | E |
| NPS | (Min.) | (Min.) | |||
| 3000 | |||||
| 1/8" | --- | --- | --- | --- | --- |
| 1/4" | 11.5 | 14.2 | 22 | 9.7 | 10.4 |
| 3/8" | 14.5 | 17.6 | 25.9 | 9.7 | 12.7 |
| 1/2" | 16.5 | 21.8 | 31.4 | 9.7 | 16 |
| 3/4" | 21.5 | 27.2 | 37.1 | 12.7 | 16 |
| 1" | 27.2 | 33.9 | 45.5 | 12.7 | 22.4 |
| 1-1/4" | 36 | 42.7 | 57 | 12.7 | 22.4 |
| 1-1/2" | 42 | 48.8 | 64 | 12.7 | 23.9 |
| 2" | 53 | 61.2 | 76 | 15.8 | 23.9 |
| 2-1/2" | 65 | 73.9 | 92 | 15.8 | 25.4 |
| 3" | 80 | 89.8 | 109.2 | 15.8 | 30.2 |
| 4" | 104 | 115.2 | 140 | 19.1 | 30.2 |
(1) Dimensions in Millimeters.
(2) Socket in accordance with ASME B16.11
(3) 3000LBS outlet size 4 and less fit a number of run pipe sizes and the fitting are marked accordingly.
Conventional Run Size Combinations
| OUTLET SIZE | ||||||||||||
| 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" | ||
| RUN SIZE (Main Pipe) | Reducing Way | 3/8"~3/4" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 3-1/2" | 5" |
| 1"~36" | 3/4"~1-1/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 3-1/2" | 4" | 6" | ||
| 1-1/2"~36" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 3-1/2" | 4" | 5" | 8" | |||
| 1-1/2"~3" | 2"~3" | 2-1/2" | 3" | 3-1/2" | 4" | 5" | 6" | 10" | ||||
| 3-1/2"~36" | 3-1/2"~6" | 3" | 3-1/2"~5" | 4"~5" | 5"~6" | 6" | 8" | 12"~14" | ||||
| 8"~36" | 3-1/2"~4" | 6"~8" | 6"~10" | 8"~10" | 8" | 10" | 16"~18" | |||||
| 5"~10" | 10"~36" | 12"~36" | 12"~18" | 10"~14" | 12"~16" | 20"~24" | ||||||
| 12"~36" | 20"~36" | 16"~36" | 18"~36" | 26"~36" | ||||||||
| Straight Way | 3/8"~36" | 1/2"~36" | 3/4"~36" | 1"~36" | 1-1/4"~1-1/2" | 1-1/2" | 2" | 2-1/2" | 3" | 3-1/2" | 5" | |
| 2"~36" | 2"~3" | 2-1/2"~4" | 3"~3-1/2" | 3-1/2"~4" | 4" | 6" | ||||||
| 3-1/2"~36" | 5"~36" | 4"~6" | 5"~8" | 5" | 8" | |||||||
| 8"~36" | 10"~36" | 6" | 10" | |||||||||
| 8"~12" | 12"~16" | |||||||||||
| 14"~36" | 18"~36" | |||||||||||
Note:Each charted outlet size is designed to fit number of run pipe size.
Product Details
ASME B 16.11 Socket Weld Branch Outlet production and processing of finished solution treatment must be enclosed , so that product performance is optimal. All the Raw Materials received by our company are subject to chemical and physical test and weighed immediately on receipt only thereafter they are taken in the stock.At Eathu Factory owned pneumatic marking machine, all flanges are available to customers free typing products, customers can be requested marked material, pressure , caliber, production standards or customer to provide own special text.
