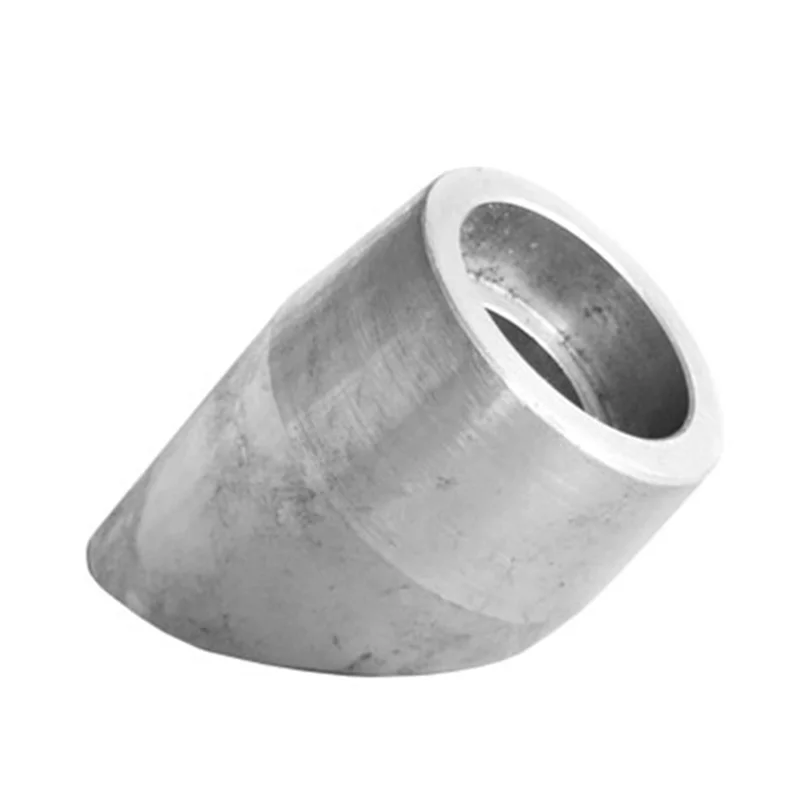

Lateral Outlet
Application:
Size: 1/8"-4" threaded and socket weld type
Pressure:
Socket weled : 3000LB 6000LB 9000LB (sch80 sch160 xxs)
Threaded : 2000LB 3000LB 6000LBS (sch80 sch160 xxs)
Conection: Thread (NPT, BSP,RP, G) ,Socket Welding
Type: Elbow, Tee, nipple, full coupling, half coupling, lateral, cross,cap, plug, hex head nipple, swage nipple, union, weldolet, sockolet, threadolet, nipolet, elbolet, latrolet etc.
Standard: ANSI B16.11,EN10241, BS3799,JIS B2316,MSS SP-83,MSS SP-79;
Material: Stainless steel, Carbon steel and Duplex stainless steel
Specification:

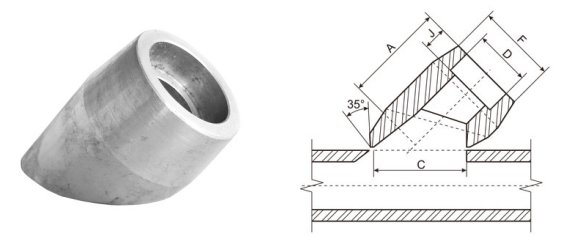

Lateral Outlet Dimension
3000LB
| Outlet Pipe | A | C | F | D | J | |
| DN | Inch | |||||
| 8 | 1/4" | 40.5 | 35.2 | 22 | 14.35 | 10 |
| 10 | 3/8" | 40.5 | 35.2 | 25.9 | 17.8 | 10 |
| 15 | 1/2" | 40.5 | 35.2 | 31.4 | 21.95 | 11.1 |
| 20 | 3/4" | 47.6 | 43.6 | 37.1 | 27.3 | 12.7 |
| 25 | 1" | 55.6 | 54 | 45.5 | 34.05 | 13.5 |
| 32 | 1-1/4" | 60.3 | 67.5 | 57 | 42.8 | 15.1 |
| 40 | 1-1/2" | 66.7 | 76.2 | 64 | 48.9 | 15.9 |
| 50 | 2" | 81 | 104.8 | 76 | 61.35 | 17.5 |
| 65 | 2-1/2" | 82.6 | 106.4 | 92 | 74.15 | 23.8 |
| 80 | 3" | 96.8 | 125.4 | 109.2 | 90.1 | 28.6 |
| 100 | 4" | 114.3 | 163.5 | 140 | 115.75 | 29.4 |
6000LB
| Outlet Pipe | A | C | F | D | J | |
| DN | Inch | |||||
| 8 | 1/4" | 40.5 | 34.9 | 26 | 14.35 | 10 |
| 10 | 3/8" | 40.5 | 34.9 | 33 | 17.8 | 10 |
| 15 | 1/2" | 47.6 | 34.9 | 38 | 21.95 | 10 |
| 20 | 3/4" | 55.6 | 43.6 | 44 | 27.3 | 14.3 |
| 25 | 1" | 60.3 | 54 | 57 | 34.05 | 15.9 |
| 32 | 1-1/4" | 66.7 | 67.5 | 64 | 42.8 | 20.6 |
| 40 | 1-1/2" | 85.7 | 76.2 | 76 | 48.9 | 20.6 |
(1) Dimensions in Millimeters.
(2) Dimension B is minimum length of perfect thread. The length of useful thread(B plus threads with fully formed roots and flat crests)shall not be less than L2(effective length of external thread)required by American National Standard for Pipe Threads ANSI/ASME B1.20.1)
