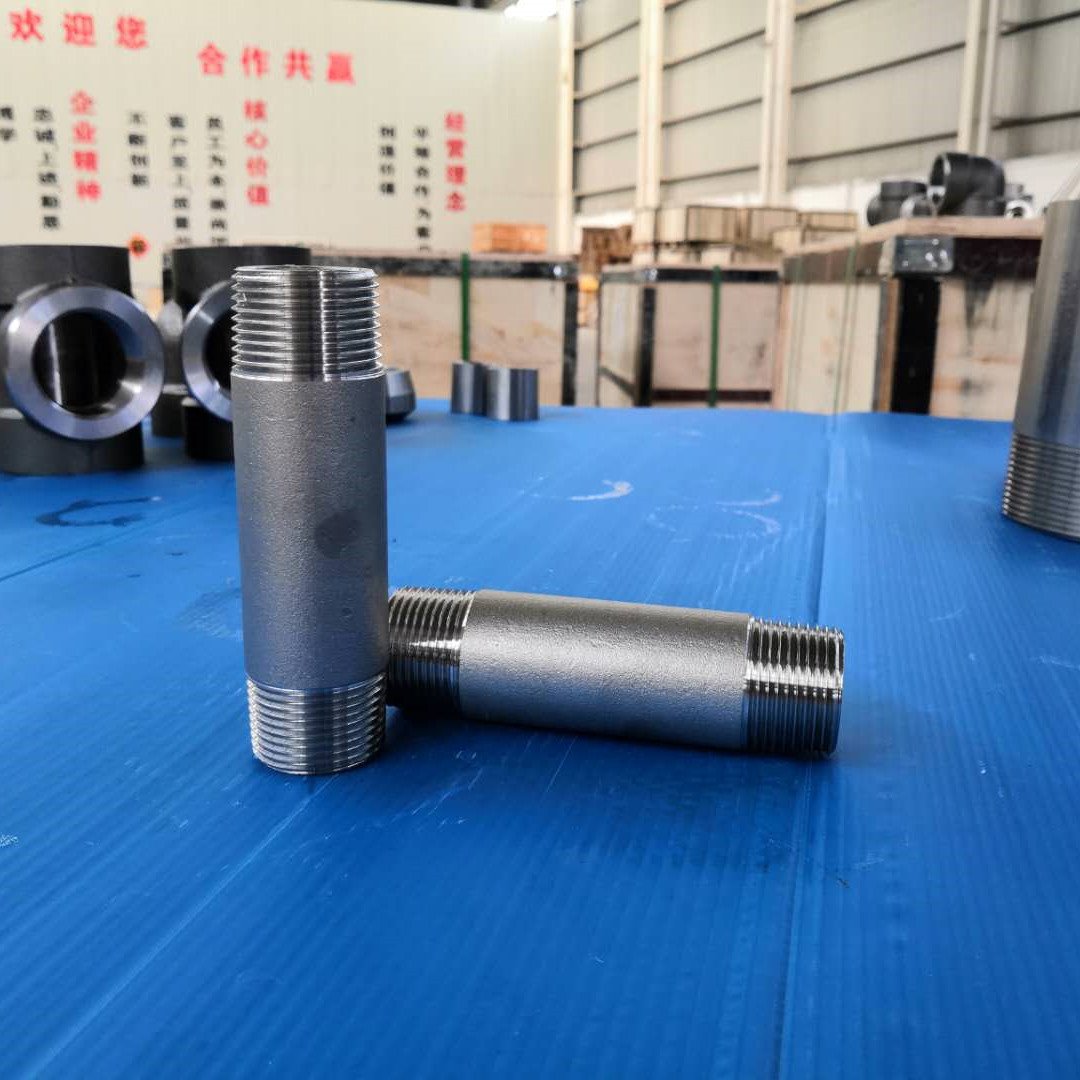

Steel Pipe Nipple BS EN10241
Application:
Pipe nipple, socket, coupling, nipple barrel, nipple swage, extension threaded nipple.
Steel Pipe Nipple Extension Nipple Long Threaded Pipes BSP NPT Standard Sch40 Pipes Nipple Barrel Nipple Swage Hose Nipple King Nipple Extension Nipple
Material: BS EN 10241
Standard Thread: ISO7/1 R , G thread, BSP thread
Dimensions: ASTM A733, ISO49, DIN2950, EN10242
Testing Pressure: 2.5MPa/Working Pressure: 1.6MPa
Schedule: 40/80/160/XXS
Schedule: Medium/Heavy
Share to:
Specification:

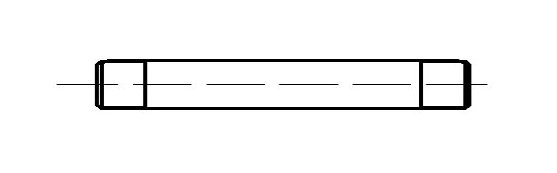

Steel Pipe Nipple BS EN10241
| Size | CLOSE | Length(mm) | |||||||||||||
| 6 | ¡¡ | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | - | |
| 8 | 27 | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | - | |
| 10 | 28 | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | - | |
| 15 | 37 | - | 40 | 50 | 60 | 80 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | - | |
| 20 | 39 | - | 40 | 50 | 60 | 80 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | - | |
| 25 | 46 | - | - | 50 | 60 | 80 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | - | |
| 32 | 51 | - | - | 50 | 60 | 80 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | - | |
| 40 | 51 | - | - | 50 | 60 | 80 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | - | |
| 50 | 60 | - | - | - | 60 | 80 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | - | |
| 65 | 69 | - | - | - | - | 80 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | - | |
| 80 | 75 | - | - | - | - | 80 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | 400 | |
| 100 | 87 | - | - | - | - | - | 100 | 120 | 150 | 180 | 200 | 250 | 300 | 400 | |
| 125 | 96 | - | - | - | - | - | - | 120 | 150 | 180 | 200 | 250 | 300 | 400 | 500 |
| 150 | 96 | - | - | - | - | - | - | 120 | 150 | 180 | 200 | 250 | 300 | 400 | 500 |
Noted: Other lengths and size available. Grooved end, SQ end and Bevel end available. Contact Eathu for details.
