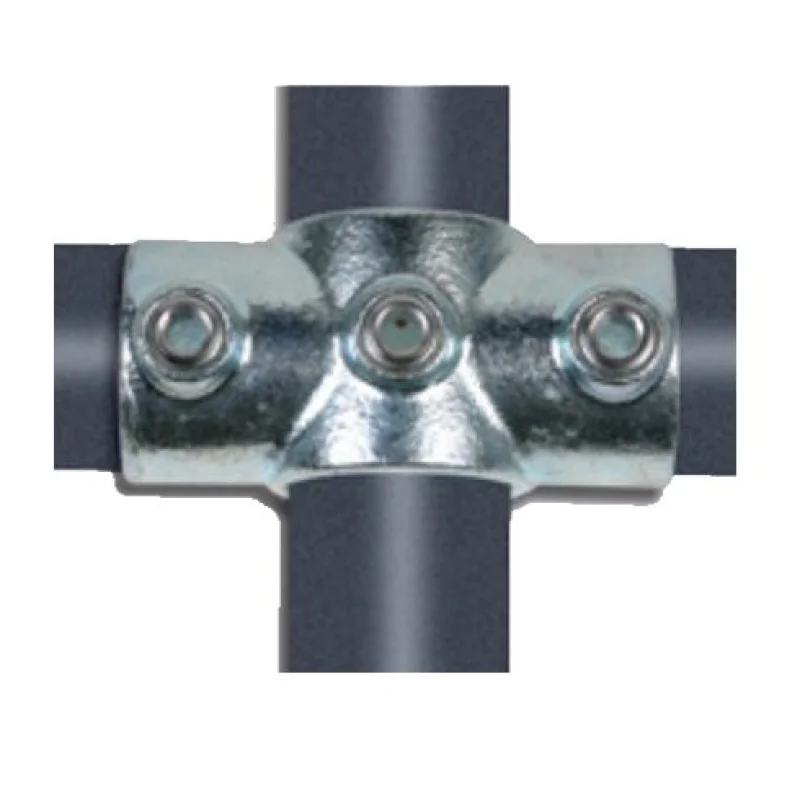

G119 2 Socket Cross
Application:
Pipe Clamp Fittings -The surface treatment of the clamps is hot dipped galvanized which meet the specification of ASTM A153 to anti-rusting and corrosion.
Share to:
Specification:
| Pipe Clamp Fittings-G119 2 Socket Cross | ||
|---|---|---|
| Eathu Clamp Type | Nominal Bore | Tube Outside Diameter |
| T | 1 / 2" | 21.3 mm |
| A | 3 / 4" | 26.9 mm |
| B | 1" | 33.7 mm |
| C | 1-1 / 4" | 42.4 mm |
| D | 1-1 / 2" | 48.3 mm |
| E | 2" | 60.3 mm |
 | |||||
| TYPE | TUBE SIZE | DIMENSIONS (mm.) | |||
| a | b | c | d | ||
| A | 26.9 | 80 | |||
| B | 33.7 | 96 | |||
| C | 42.4 | 120 | |||
| CD | 42.4/48.3 | 122 | |||
| D | 48.3 | 135 | |||
| E | 60.3 | 168 | |||
| T | 21.3 | 70 | |||
Product Details
Advantage
1) Flexible solutions for all tupes of safety barriers.
2) Widest range of safety components.
3) No welding, so no hot permits required.
4) No threading or bolting, so no special tools required.
5) Cost effective to install as only low skilled workforce required.
6) Six different sizes are available as following.
