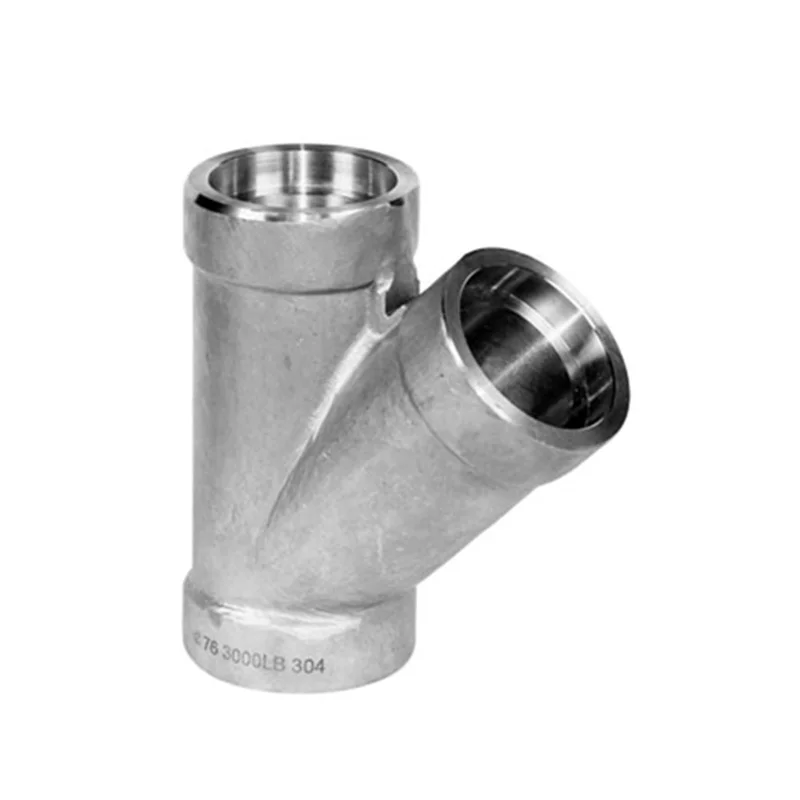

Socket Weld Lateral
Application:
Socket Weld Lateral:In pipeline system, the lateral is to change the direction of the pipeline. According to the view points, there are 45 degree, 90 degree two most commonly used types, according to the requirements of the project ,also includes 60 degree and other abnormal Angle lateral. Socket weld lateral, mainly manufactured by round steel or steel ingot .Heat the steel ingot, put them in mold cavities,then forging to blanks by forging machine, and then after the lathe machining forming a high pressure lateral pipe fitting.
Share to:
Specification:

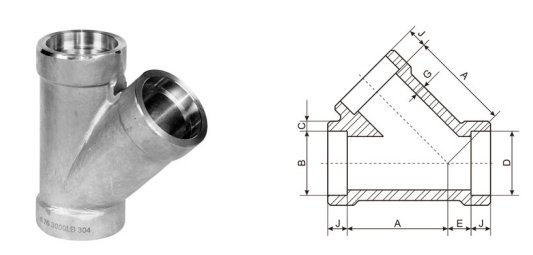

Socket Weld Lateral Dimension
3000LB
| DN | Nom.Pipe | B² | B² | D² | A | E | G² | J² | |
| Size | (Avg.) | (Min.) | (Min.) | (Min.) | |||||
| 15 | 1/2" | 21.8 | 4.67 | 4.09 | 15.8 | 35 | 9 | 3.75 | 9.5 |
| 20 | 3/4" | 27.2 | 4.9 | 4.27 | 21 | 41 | 9 | 3.95 | 12.5 |
| 25 | 1" | 33.9 | 5.69 | 4.98 | 26.7 | 51 | 12 | 4.55 | 12.5 |
| 32 | 1-1/4" | 42.7 | 6.07 | 5.28 | 35.1 | 59 | 17 | 4.85 | 12.5 |
| 40 | 1-1/2" | 48.8 | 6.35 | 5.54 | 40.9 | 68 | 21 | 5.1 | 12.5 |
| 50 | 2" | 61.2 | 6.93 | 6.04 | 52.5 | 95 | 24 | 5.55 | 16 |
| 65 | 2-1/2" | 73.9 | 8.76 | 7.67 | 62.7 | 118 | 38 | 7.05 | 16 |
6000LB
| DN | Nom.Pipe | B² | B² | D² | A | E | G² | J² | |
| Size | (Avg.) | (Min.) | (Min.) | (Min.) | |||||
| 15 | 1/2" | 21.8 | 5.97 | 5.18 | 11.8 | 41 | 9 | 4.78 | 9.5 |
| 20 | 3/4" | 27.2 | 6.96 | 6.04 | 15.6 | 51 | 12 | 5.56 | 12.5 |
| 25 | 1" | 33.9 | 7.92 | 6.93 | 20.7 | 59 | 17 | 6.35 | 12.5 |
| 32 | 1-1/4" | 42.7 | 7.92 | 6.93 | 29.5 | 68 | 21 | 6.35 | 12.5 |
| 40 | 1-1/2" | 48.8 | 8.92 | 7.8 | 34 | 95 | 24 | 7.14 | 12.5 |
| 50 | 2" | 61.2 | 10.92 | 9.5 | 42.9 | 106 | 31 | 8.74 | 16 |
