Swing Check Valve
Application:

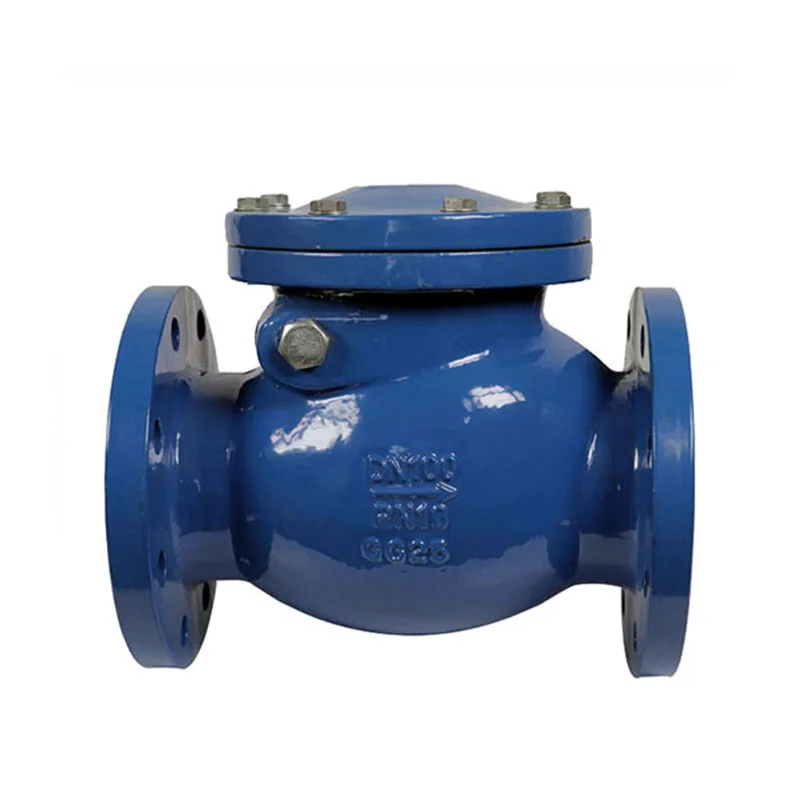

Swing Check Valve
1.size:DN50-DN600;2"-24"
2.Medium:water
3.Standard:EN12334/BS5153/MSS SP-71/AWWA C508
4.Pressure:CLASS 125-300/PN10-25/200-300PSI
5.Material:CI,DI
6.Type:wafer,swing
Share to:
Specification:
TECHNICAL REQUIREMENT :
● Design and Manufacture Conform to MSS SP-71
● Flange dimensions Conform to ASME B16.1
● Face to Face dimensions Conform to ASME B16.10
● Testing Conform to MSS SP-71
SPECIFICATION
| No. | Part Name | Material |
| 1 | BODY | ASTM A126 B |
| 2 | SEAT RING | ASTM B62 C83600 |
| 3 | DISC | ASTM A126 B |
| 4 | DISC RING | ASTM B62 C83600 |
| 5 | HINGE | ASTM A536 65-45-12 |
| 6 | STEM | ASTM A276 410 |
| 7 | BONNET | ASTM A126 B |
NOTE: Above 6 inch have eyebolt
| Dimensions (mm) of Swing Check Valve: | ||||||||||||||
| NPS | 2″ | 2½ | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
| Dn | 51 | 63.5 | 76 | 102 | 127 | 152 | 203 | 254 | 305 | 356 | 406 | 457 | 508 | 610 |
| L | 203.2 | 215.9 | 241.3 | 292.1 | 330.2 | 355.6 | 495.3 | 622.3 | 698.5 | 787.4 | 914.4 | 965 | 1016 | 1219 |
| D | 152 | 178 | 191 | 229 | 254 | 279 | 343 | 406 | 483 | 533 | 597 | 635 | 699 | 813 |
| D1 | 120.7 | 139.7 | 152.4 | 190.5 | 215.9 | 241.3 | 298.5 | 362 | 431.8 | 476.3 | 539.8 | 577.9 | 635 | 749.3 |
| b | 15.8 | 17.5 | 19 | 23.9 | 23.9 | 25.4 | 28.5 | 30.2 | 31.8 | 35 | 36.6 | 39.6 | 42.9 | 47.8 |
| n-d | 4-19 | 4-19 | 4-19 | 8-19 | 8-22 | 8-22 | 8-22 | 12-25 | 12-25 | 12-29 | 16-29 | 16-32 | 20-32 | 20-35 |
| H | 124 | 129 | 153 | 170 | 196 | 259 | 332 | 383 | 425 | 450 | 512 | 702 | 755 | 856 |
