DIN Angle Globe Valve
Application:

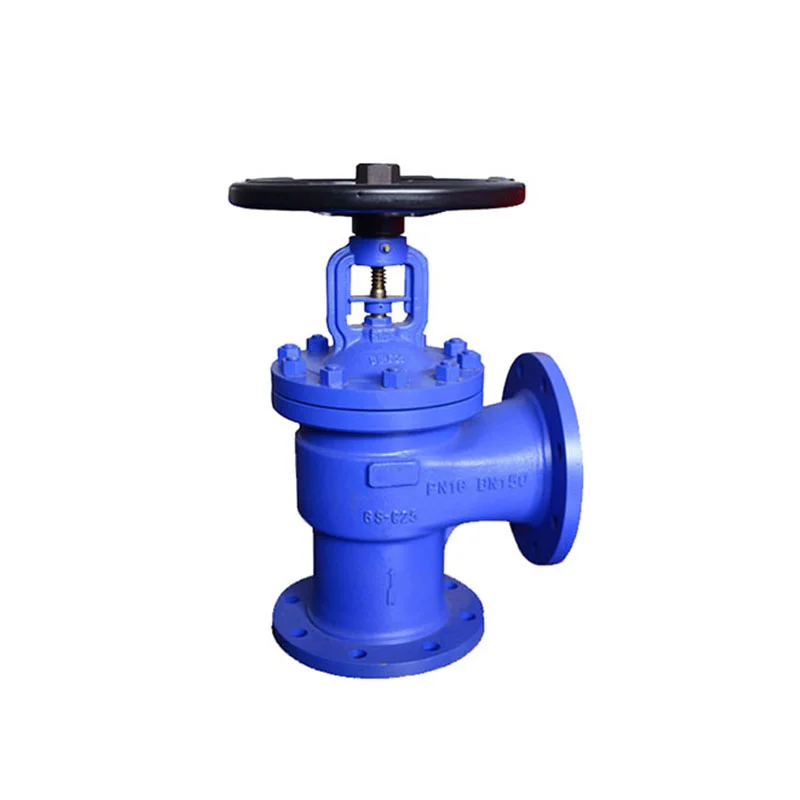

DIN Angle Globe Valve
DIN cast iron angle globe valve
Face to face: DIN3202-F32
Flange drilled: DIN2532/2533
Normal pressure: PN10/16
Size: DN15-DN300
Specification:
Material:
Cast iron or ductile iron body
Brass or bronze seat
Cast iron or ductile iron disc
Stainless steel stem
Cast iron or ductile bonnet
Cast iron or ductile hand wheel
The following are some of the typical applications of Cast Iron Angle globe valves:
* Cooling water systems where flow needs to be regulated
* Fuel oil system where flow is regulated and leaktightness is of importance
* High-point vents and low-point drains when leaktightness and safety are major considerations
* Feedwater, chemical feed, condenser air extraction, and extraction drain systems
| MATERIALS | ||
| ITEM | PARTS NAME | MATERIAL |
| 1 | BODY | CAST IRON |
| 2 | SEAT RING | BRASS/STAINLESS STEEL |
| 3 | SEAT RING | CAST IRON+BRASS/STAINLESS STEEL |
| 4 | GASKET | GRAPHITE |
| 5 | BOLT NUT | CARBON STEEL |
| 6 | STEM | STAINLESS STEEL |
| 7 | PACKING | GRAPHITE |
| 8 | GLAND | CAST IRON |
| 9 | BONNET | CAST IRON |
| 10 | STEM NUT | BRASS |
| 11 | BOLT NUT | CARBON STEEL |
| 12 | BOLT | CARBON STEEL |
| 13 | WHEEL | CAST IRON |
| 14 | NUT GASKET | CARBON STEEL |
| 15 | BOLT | CARBON STEEL |
| Dimensions (mm) of DIN Angle Globe Valve: | |||||||||
| DN | L | D | D1 | D2 | b | Z-∮d | f | H | DO |
| 15 | 90 | 95 | 65 | 47 | 14 | 4-14 | 2 | 260 | 80 |
| 20 | 95 | 105 | 75 | 58 | 16 | 4-14 | 2 | 280 | 80 |
| 25 | 100 | 115 | 85 | 68 | 16 | 4-14 | 2 | 290 | 100 |
| 32 | 105 | 140 | 100 | 78 | 18 | 4-14 | 2 | 315 | 120 |
| 40 | 115 | 150 | 110 | 88 | 18 | 4-18 | 3 | 345 | 120 |
| 50 | 125 | 165 | 125 | 102 | 20 | 4-18 | 3 | 370 | 140 |
| 65 | 145 | 185 | 145 | 122 | 20 | 4-18 | 3 | 415 | 160 |
| 80 | 155 | 200 | 160 | 138 | 22 | 8-18 | 3 | 480 | 240 |
| 100 | 175 | 220 | 180 | 158 | 24 | 8-18 | 3 | 545 | 240 |
| 125 | 200 | 250 | 210 | 188 | 26 | 8-18 | 3 | 620 | 280 |
| 150 | 225 | 285 | 240 | 212 | 26 | 8-23 | 3 | 700 | 320 |
| 200 | 275 | 340 | 295 | 268 | 30 | 12-23 | 3 | 845 | 360 |
| 250 | 325 | 405 | 355 | 320 | 32 | 12-27 | 3 | 1025 | 400 |
