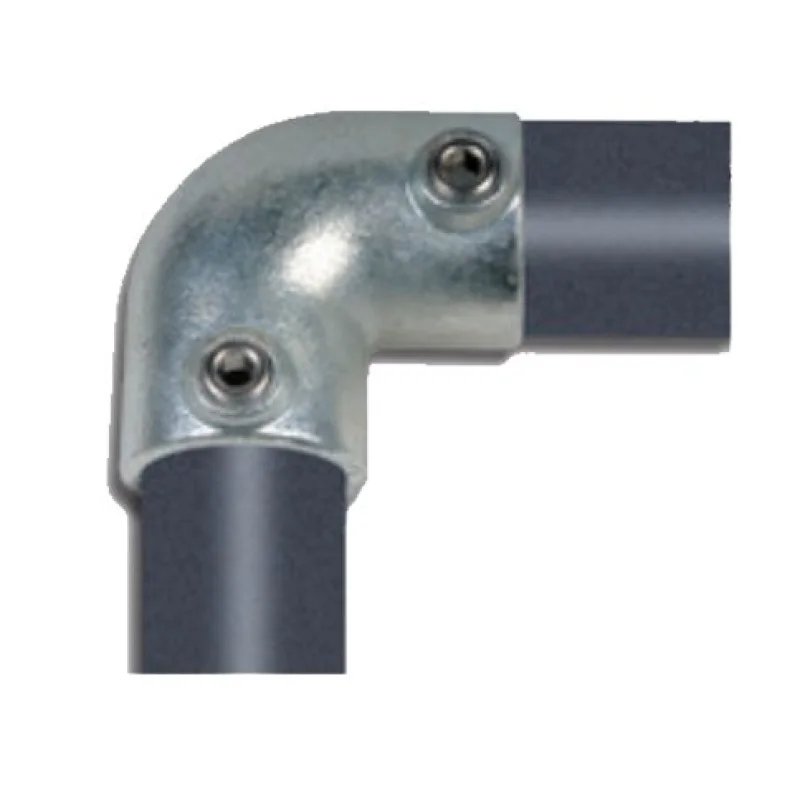

G125 2 Way 90° Elbow
Application:
G125 2 Way 90° Elbow
Flexible solutions for all tupes of safety barriers.
Widest range of safety components.
No welding, so no hot permits required.
Share to:
Specification:
| Pipe Clamp Fittings | ||
|---|---|---|
| Eathu Clamp Type | Nominal Bore | Tube Outside Diameter |
| T | 1 / 2" | 21.3 mm |
| A | 3 / 4" | 26.9 mm |
| B | 1" | 33.7 mm |
| C | 1-1 / 4" | 42.4 mm |
| D | 1-1 / 2" | 48.3 mm |
| E | 2" | 60.3 mm |
| Pipe Clamp Fittings-G125 2 Way 90° Elbow | |||||
|---|---|---|---|---|---|
| TYPE | TUBE SIZE (mm) | DIMEBNSIONS (mm.) | |||
| a | b | c | d | ||
| A | 26.9 | 41 |  | ||
| B | 33.7 | 46 | |||
| C | 42.4 | 60 | |||
| D | 48.3 | 68 | |||
| DC | 48.3 / 42.4 | 68 / 60 | |||
| E | 60.3 | 84 | |||
| T | 21.3 | 35 | |||
Product Details
1) Flexible solutions for all tupes of safety barriers.
2) Widest range of safety components.
3) No welding, so no hot permits required.
4) No threading or bolting, so no special tools required.
5) Cost effective to install as only low skilled workforce required.
6) Six different sizes are available as following.
