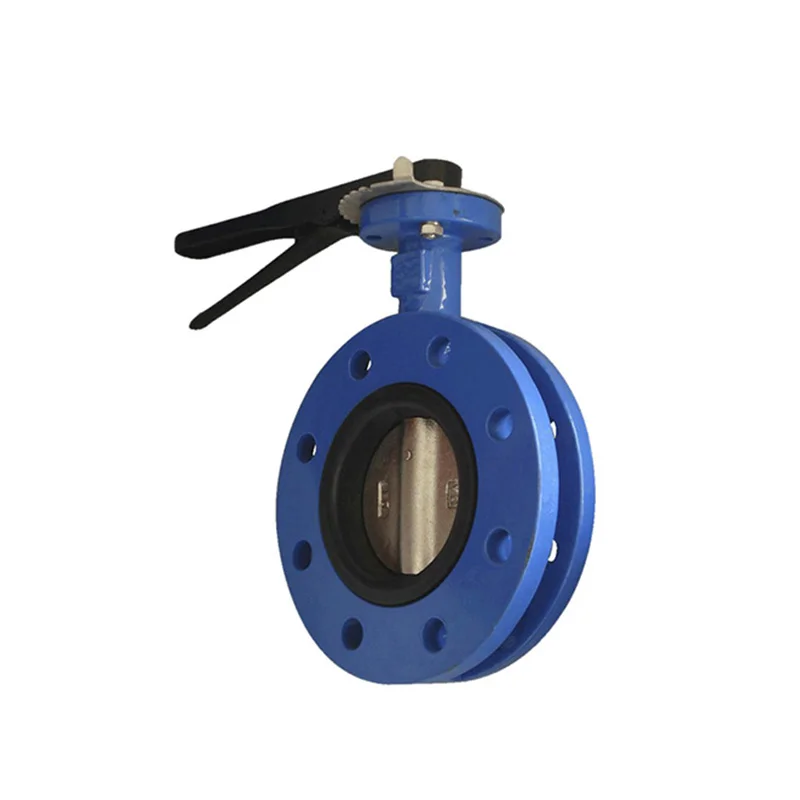

U flange type Butterfly Valve
Application:
U Flange Type Butterfly Valve
1.Single Eccentric Disc-Shaft
2.Anti-Blow Out Stem
3.Bi-Directional
4.Fire safe Design
5.Low Friction Body Seat
6.Zero Leakage

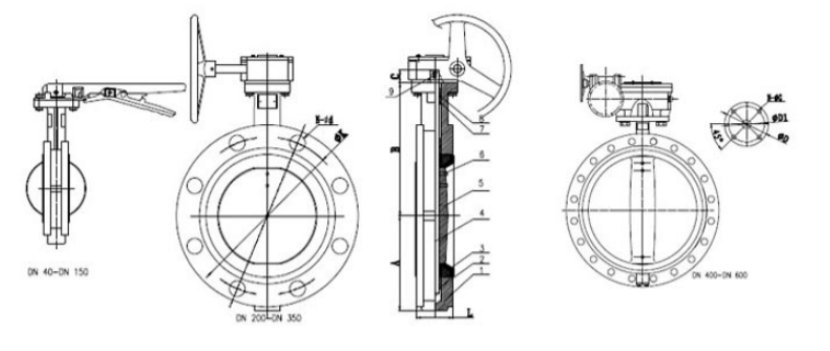

Specification:
| MATERIALS | ||
| ITEM | PARTS NAME | MATERIAL |
| 1 | BODY | CAST IRON/DUCTILE IRON |
| 2 | DISC | DUCTILE IRON/CF8/CF8M/AL BRONZE |
| 3 | STEM | STAINLESS STEEL |
| 4 | PIN | STAINLESS STEEL |
| 5 | SEAT | NBR/EPDM/PTFE/VITON |
| 6 | O-RING | NBR/EPDM/VITON |
| 7 | KEY | CABON STEEL |
Product Details
Adoptive Standards
Valve Design: API 609, MSS SP-67
Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1
Pressure Test: API 598
Flange Drilling: ANSI B16.1 class150, BS4504 PN10/PN16, DIN2501 PN10/PN16
Top Flange: ISO5211
Standard Test
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.
Application
● Water Treatment Plant
● Drilling Rigs
● Paper Industry
● Gas Plant
● Sugar Industry
● Cooling Water Circulation
● Breweries
● Heating & Air Conditioning
● Chemical Industry
● Pneumatic Conveyors
● Waste Effluent Treatment Plant
● Compressed Air
