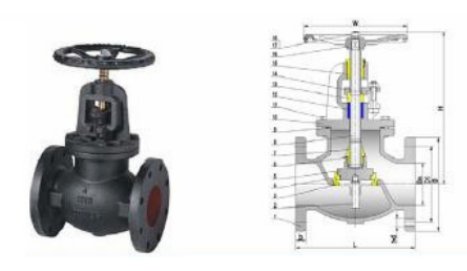

MSS SP-85 CLASS 125 Cast Iron Globe Valve
Application:
MSS SP-85 CLASS 125 cast iron globe valve
Design and Manufacture conform to MSS SP-85
Flange dimensions confirm to ANSI B16.1(125LBS)
Face to face dimensions confirm to ANSI B16.10
Testing confirm to MSS SP-85
Suitable Media: Water, Oil, Gas
Share to:
Specification:
Parts and Materials of MSS SP-85 CLASS 125 cast iron globe valve:
| MATERIALS | ||
| ITEM | PARTS NAME | MATERIAL |
| 1 | BODY | ASTM A126B |
| 2 | GUIDE SPINDLE | 2Cr13 |
| 3 | SEAT | ZCuSn5Pb5Zn5 |
| 4 | DISC SEAL RING | ZCuSn5Pb5Zn5 |
| 5 | DISC | ASTM A126B |
| 6 | LOCK RING | Red Copper |
| 7 | DISC COVER | HPb59-1 |
| 8 | STEM | HPb59-1 |
| 9 | BONNET GASKET | GRAPHITE+08F |
| 10 | BONNET | ASTM A126B |
| 11 | BOLT | CARBON STEEL |
| 12 | PACKING | GRAPHITE |
| 13 | PACKING GLAND | HPb59-1 |
| 14 | GLAND FOLLOWER | ASTM A536 65-45-12 |
| 15 | STEM NUT | ZcuZn38Mn2Pb2 |
| 16 | HANDWHEEL | EN-GJS-500-7 |
| 17 | NUT | CARBON STEEL |
| 18 | WASHER | 100HV |
| Dimensions (mm) of MSS SP-85 CLASS 125 cast iron globe valve: | ||||||||
| INCH | DN | L | D | D1 | b | n-d | H | W |
| 2” | 51 | 203 | 152 | 120.7 | 15.8 | 4-19 | 273 | 200 |
| 2-1/2” | 63.5 | 216 | 178 | 139.7 | 17.5 | 4-19 | 295 | 200 |
| 3” | 76 | 241 | 191 | 152.4 | 19 | 4-19 | 314.4 | 255 |
| 4” | 102 | 292 | 229 | 190.5 | 23.9 | 8-19 | 359 | 255 |
| 5” | 127 | 330 | 254 | 215.9 | 23.9 | 8-22 | 388 | 306 |
| 6” | 152 | 356 | 279 | 241.3 | 25.4 | 8-22 | 454 | 360 |
| 8” | 203 | 495 | 343 | 298.5 | 28.5 | 8-22 | 506 | 360 |
| 10” | 254 | 622 | 406 | 362 | 30.2 | 12-25 | 584 | 406 |
| 12” | 305 | 698 | 483 | 431.8 | 31.8 | 12-25 | 690 | 406 |
