![G131 Base Flange-836](http://vhost-ln-s01-cdn.hcwebsite.com/092c9696424eec304bc16609a7fe0a3f/data/thumb/res/en/20230421/633c31b30030ff79.jpg_20230421144951_800x800.webp_unreal/g131-pipe-clamp.webp?v=2OTgPArI)

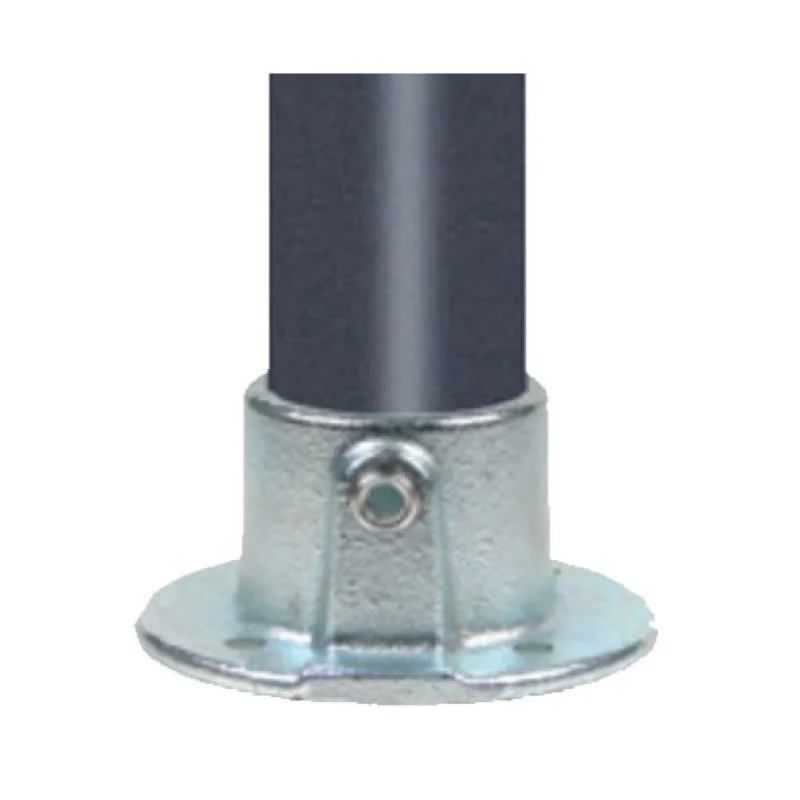

G131 Base Flange
Application:
The surface treatment of the clamps is hot dipped galvanized which meet the specification of ASTM A153 to anti-rusting and corrosion.
Share to:
Specification:
Pipe Clamp Fittings | ||
---|---|---|
Eathu Clamp Type | Nominal Bore | Tube Outside Diameter |
T | 1 / 2" | 21.3 mm |
A | 3 / 4" | 26.9 mm |
B | 1" | 33.7 mm |
C | 1-1 / 4" | 42.4 mm |
D | 1-1 / 2" | 48.3 mm |
E | 2" | 60.3 mm |
Pipe Clamp Fittings-G131 Base Flange | |||||
---|---|---|---|---|---|
TYPE | TUBE SIZE | DIMENSIONS(mm.) | |||
a | b | c | d | ||
A | 26.7 | 42 | 83 | 57 | ![]() |
B | 33.7 | 48 | 89 | 65 | |
C | 42.4 | 50 | 102 | 76 | |
D | 48.3 | 59 | 114 | 88.5 | |
E | 60.3 | 64 | 127 | 95 | |
T | 21.3 | 32 | 74 | 55.5 |
Product Details
1) EATHU kee clamps are designed by using mallerble iron in accordance with ASTM A197 which applies for good mechanical strength and enough elongation characters.
2) The surface treatment of the clamps is hot dipped galvanized which meet the specification of ASTM A153 to anti-rusting and corrosion.
3) Six different sizes are available as following.
