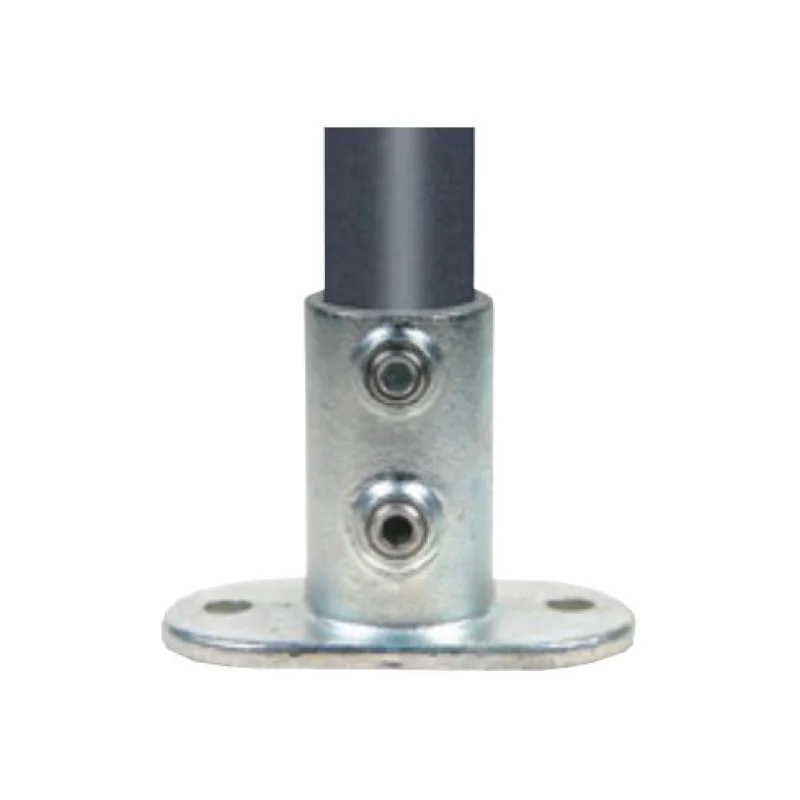

G132 Railing Base Flange
Application:
1) Flexible solutions for all tupes of safety barriers.
2) Widest range of safety components.
3) No welding, so no hot permits required.
4) No threading or bolting, so no special tools required.
5) Cost effective to install as only low skilled workforce required.
6) Six different sizes are available as following.
Specification:
| Pipe Clamp Fittings | ||
|---|---|---|
| Eathu Clamp Type | Nominal Bore | Tube Outside Diameter |
| T | 1 / 2" | 21.3 mm |
| A | 3 / 4" | 26.9 mm |
| B | 1" | 33.7 mm |
| C | 1-1 / 4" | 42.4 mm |
| D | 1-1 / 2" | 48.3 mm |
| E | 2" | 60.3 mm |
| Pipe Clamp Fittings-G132 Railing Base Flange | |||||
|---|---|---|---|---|---|
| TYPE | TUBE SIZE | DIMENSIONS(mm.) | |||
| a | b | c | d | ||
| A | 26.7 | 105 | 60 | 52 | 76 |
| B | 33.7 | 127 | 71 | 62 | 89 |
| C | 42.4 | 139 | 84 | 72 | 101 |
| D | 48.3 | 152 | 89 | 86 | 114 |
| E | 60.3 | 165 | 104 | 96 | 127 |
Product Details
1) Flexible solutions for all tupes of safety barriers.
2) Widest range of safety components.
3) No welding, so no hot permits required.
4) No threading or bolting, so no special tools required.
5) Cost effective to install as only low skilled workforce required.
6) Six different sizes are available as following.
