API600 OS&Y Cast Steel Gate Valve
Application:

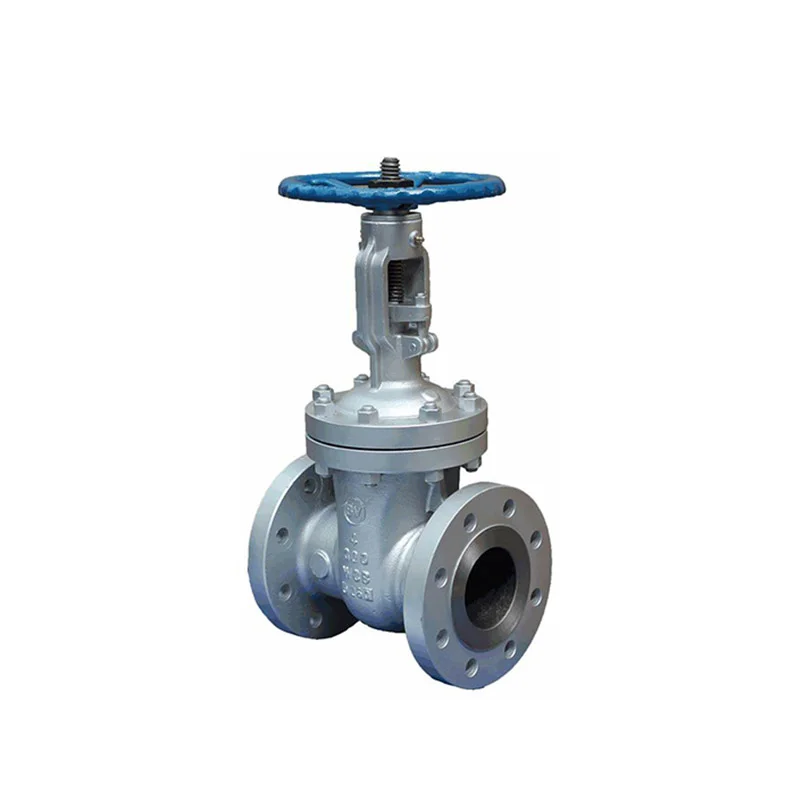

API600 OS&Y Cast Steel Gate Valve
Cast Steel Gate Valve, Industrial Api Gate Valves Supplier, Offers API600 & API6D Cast Steel Rising Stem OS&Y Wedge Gate Valve, Cast Carbon Steel And Stainless Steel Body For Size 2" to 36″, Ansi Class 150Lbs to 25ooLbs; Bolted Bonnet And Pressure Seal Bonnet Design For Different Pressure Rating Conditions.

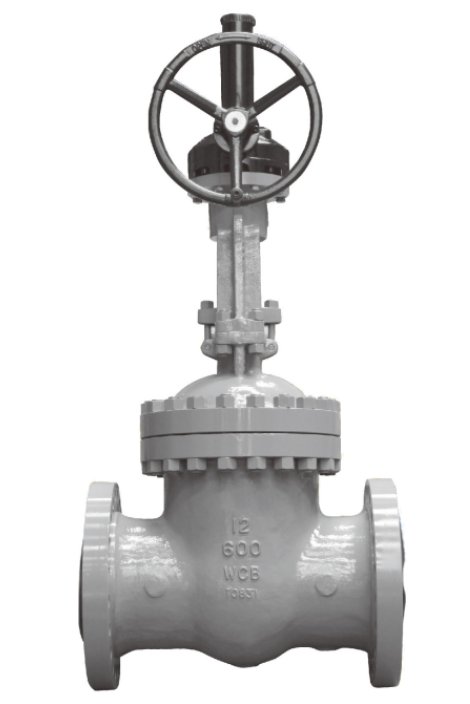

Handwheel, Gear Operated And Bare Stem For Electric Actuator Gate Valves Are Available For Choice.
Specification:
API600 OS&Y Cast Steel Gate Valve
1. Design & Manufacture: ANSI B16.34, API 600, API6D
2. Body Structure: OS&Y, Bolted Bonnet, Solid or Flexible Wedge Design
3. Size Range: 2″ to 36″
4. Pressure Ratings: ANSI Class 150Lbs, 300Lbs, 600Lbs, 900Lbs, 1500Lbs
5. End Connections: Flanged, Butt weld
6. Materials Available in: WCB, LCB, CF8, CF8M, CF8C, CF3, CF3M, WC6, WC9, C5, C12, 4A, 5A or Equivalent
7. Various Trim Materials Are Available To Suit Different Service Conditions
8. Actuator: Manual, Electric Actuator
9. NACE MR 0175 on request
Cast Steel Gate Valve, Industrial Api Gate Valves Supplier, Offers API600 & API6D Cast Steel Rising Stem OS&Y Wedge Gate Valve, Cast Carbon Steel And Stainless Steel Body For Size 2" to 36″, Ansi Class 150Lbs to 25ooLbs; Bolted Bonnet And Pressure Seal Bonnet Design For Different Pressure Rating Conditions.
Handwheel, Gear Operated And Bare Stem For Electric Actuator Gate Valves Are Available For Choice.
Parts and Materials of API600 OS&Y Cast Steel Gate Valve:
| Part Name | Material | ||||||
| A216- WCB | A216- WCB | A216- WCB | A216- WCB | A216- WCB | A351- CF8(M) | A351- CF3(M) | |
| trim 1# | trim 8# | trim 5# | trim 10# | trim 12# | |||
| Body | A216- WCB | A216- WCB | A216- WCB | A216- WCB | A216- WCB | A351- CF8(M) | A351- CF3(M) |
| Bonnet | A216- WCB | A216- WCB | A216- WCB | A216- WCB | A216- WCB | A351- CF8(M) | A351- CF3(M) |
| Disc | WCB+ 13Cr | WCB+ 13Cr | WCB+ STL | WCB+ 316 | WCB+ 316 | A351- CF8(M) | A351- CF3(M) |
| Seat | 13Cr | Stellite | Stellite | 316SS | Stellite | Integral | Integral |
| Stem | A182- F6a | A182- F6a | A182- F6a | A182- F316 | A182- F316 | F304 /316 | F304L /316L |
| Bolts/Nuts | B7/2H | B7/2H | B7/2H | B7/2H | B7/2H | B8(M) /8(M) | B8(M) /8(M) |
