90 Degree Socket Weld Elbow
Application:

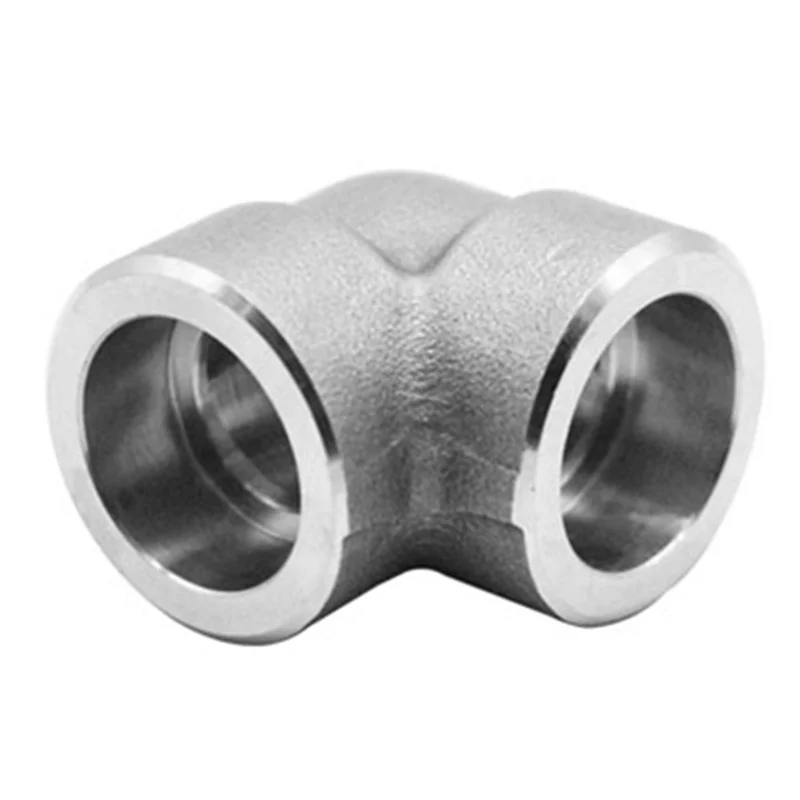

"90 Degree Socket Weld Elbow" is a type of pipe fitting used to connect two pipes at a 90-degree angle by welding. This elbow is typically used in locations where a change in pipe direction is needed, allowing for smoother fluid flow in the pipe system.
Specification:

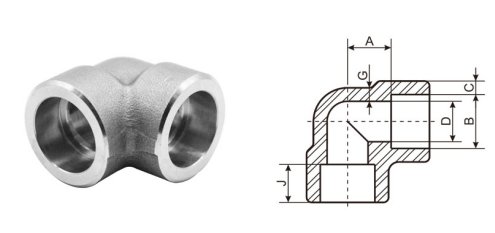

| DN | Nom. | Center to Bottom of Socket-A | Socket | Bore Dia.Of Fitting | Socket Wall Thickness（2） | Body Wall Thickness | Depth | ||||||||||||||
| Pipe | Bore | D | C | G | of | ||||||||||||||||
| Size | 90°Elbows | 45°Elbows | Dia. | Class Designation | Class Designation | Socket | |||||||||||||||
| Tees,Crosses | B | Min. | |||||||||||||||||||
| Class Designation | Class Designation | Class Designation | 3000 | 6000 | 9000 | 3000 | 6000 | 9000 | J | ||||||||||||
| 3000 | 6000 | 9000 | 3000 | 6000 | 9000 | 3000 | 6000 | 9000 | Ave. | Min. | Ave. | Min. | Ave. | Min. | Min. | Min. | Min. | ||||
| 6 | 1/8" | 11 | 11 | --- | 8 | 8 | --- | 10.8 | 6.9 | 4 | --- | 3.18 | 3.18 | 3.96 | 3.43 | --- | --- | 2.41 | 3.15 | --- | 9.5 |
| 8 | 1/4" | 11 | 13.5 | --- | 8 | 8 | --- | 14.2 | 9.3 | 6.4 | --- | 3.78 | 3.3 | 4.6 | 4.01 | --- | --- | 3.02 | 3.68 | --- | 9.5 |
| 10 | 3/8" | 13.5 | 15.5 | --- | 8 | 11 | --- | 17.6 | 12.6 | 9.2 | --- | 4.01 | 3.5 | 5.03 | 4.37 | --- | --- | 3.2 | 4.01 | --- | 9.5 |
| 15 | 1/2" | 15.5 | 19 | 25.5 | 11 | 12.5 | 15.5 | 21.8 | 15.8 | 11.8 | 6.4 | 4.67 | 4.09 | 5.97 | 5.18 | 9.35 | 8.18 | 3.73 | 4.78 | 7.47 | 9.5 |
| 20 | 3/4" | 19 | 22.5 | 28.5 | 13 | 14 | 19 | 27.2 | 21 | 15.6 | 11.1 | 4.9 | 4.27 | 6.96 | 6.04 | 9.78 | 8.56 | 3.91 | 5.56 | 7.82 | 12.5 |
| 25 | 1" | 22.5 | 27 | 32 | 14 | 17.5 | 20.5 | 33.9 | 26.7 | 20.7 | 15.2 | 5.69 | 4.98 | 7.92 | 6.93 | 11.38 | 9.96 | 4.55 | 6.35 | 9.09 | 12.5 |
| 32 | 1-1/4" | 27 | 32 | 35 | 17.5 | 20.5 | 22.5 | 42.7 | 35.1 | 29.5 | 22.8 | 6.07 | 5.28 | 7.92 | 6.93 | 12.14 | 10.62 | 4.85 | 6.35 | 9.7 | 12.5 |
| 40 | 1-1/2" | 32 | 38 | 38 | 20.5 | 25.5 | 25.5 | 48.8 | 40.9 | 34 | 28 | 6.35 | 5.54 | 8.92 | 7.8 | 12.7 | 11.12 | 5.08 | 7.14 | 10.15 | 12.5 |
| 50 | 2" | 38 | 41 | 54 | 25.5 | 28.5 | 28.5 | 61.2 | 52.5 | 42.9 | 38.2 | 6.93 | 6.04 | 10.92 | 9.5 | 13.84 | 12.12 | 5.54 | 8.74 | 11.07 | 16 |
| 65 | 2-1/2" | 41 | --- | --- | 28.5 | --- | --- | 73.9 | 62.7 | --- | --- | 8.76 | 7.67 | --- | --- | --- | --- | 7.01 | --- | --- | 16 |
| 80 | 3" | 57 | --- | --- | 32 | --- | --- | 89.8 | 78 | --- | --- | 9.52 | 8.3 | --- | --- | --- | --- | 7.62 | --- | --- | 16 |
| 100 | 4" | 66.5 | --- | --- | 41 | --- | --- | 115.2 | 102.3 | --- | --- | 10.69 | 9.35 | --- | --- | --- | --- | 8.56 | --- | --- | 16 |
(1) Dimensions in Millimeters.
(2) Average of socket wall thickness around periphery shall be no less than listed values. The minimum values are permitted in localized areas.
(3) Upper and lower values for each size are the respective maximum and minimum dimensions.
Marking & Packing
Products are packaged to ensure that there is no damage during transit. In case of exports, the standard export packaging is done in wooden cases. All forged fittings are marked with Grade, Lot No, Size, Degree, and our trademark. On special requests, we can also, make custom marking on our products.
Quality Assurance
At MetalGoods, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.
Test Certificates
Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report.
Product Details
Size: 1/8"-4" threaded and socket weld type
Pressure:
Socket weled : 3000LB 6000LB 9000LB (sch80 sch160 xxs)
Threaded : 2000LB 3000LB 6000LBS (sch80 sch160 xxs)
Conection: Thread (NPT, BSP,RP, G) ,Socket Welding
Type: Elbow, Tee, nipple, full coupling, half coupling, lateral, cross,cap, plug, hex head nipple, swage nipple, union, weldolet, sockolet, threadolet, nipolet, elbolet, latrolet etc.
Standard: ANSI B16.11,EN10241, BS3799,JIS B2316,MSS SP-83,MSS SP-79;
Material: Stainless steel, Carbon steel and Duplex stainless steel
