Forged Pipe Fittings

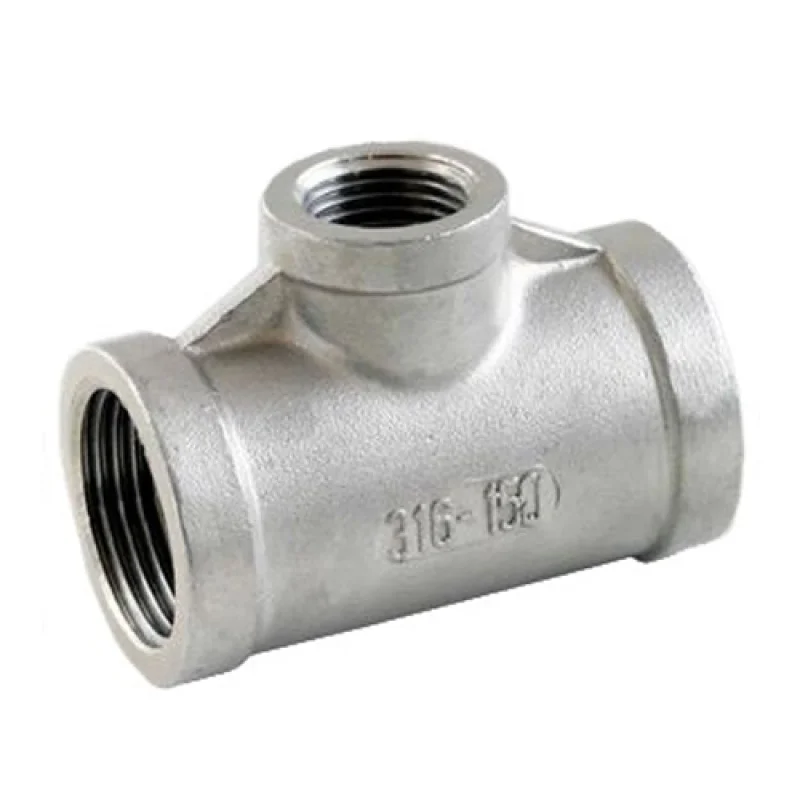

Stainless steel screwed Reduced Tee
Application:
Stainless steel screwed Reduced Tee
Size: 1/2" ,3/4", 1",125,150,2",3",4",5",6"
Pressure: 150lbs
Dimension: ISO4144
Material: SUS201, SUS304, SUS316, (SS201 SS304 SS316)
Thread end: NPT, FNPT, BSPT, BSP,G,DIN2999&BS21,ISO228/1&ISO7/1
Specification:
| SIZE | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" | |||||||||
| 1/8" | 1/4" | 1/4" | 3/8" | 3/8" | 1/2" | 1/2" | 3/4" | 3/4" | 1" | 1-1/4" | 1-1/2" | 1-1/4" | 1-1/2" | 1-1/2" | 2" | 2" | 2-1/2" | 2-1/2" | 3" | |
| L1 | 18 | 20 | 24 | 26 | 28 | 29 | 32 | 34 | 38 | 40 | 41 | 45 | 48 | 52 | 55 | 60 | 62 | 72 | 78 | 83 |
| L2 | 18 | 22 | 24 | 25 | 28 | 30 | 33 | 35 | 40 | 42 | 45 | 48 | 54 | 55 | 62 | 65 | 72 | 75 | 90 | 91 |
| A | 13 | 16.5 | 16.5 | 20 | 20 | 24.5 | 24.5 | 30 | 30 | 37.5 | 37.5 | 46.5 | 46.5 | 53 | 53 | 65.5 | 65.5 | 82 | 82 | 95.5 |
| B | 16.5 | 20 | 24.5 | 30 | 37.5 | 46.5 | 53 | 65.5 | 82 | 95.5 | 121.5 | |||||||||
Product Details
Stainless Steel Threaded Reduced Tee is a kind of stainless steel threaded pipe fittings. It can be easily installed to branch a pipe. There are stainless steel Equal Tee and stainless steel reduced Tee two types.The equal Tee used to connect the pipes with same diameters, while the reduced Tee used to branch the pipe to small diameter pipes.
Stainless steel threaded pipe fittings commonly used in water or gas pipeline, small diameter pipeline, compressed air pipeline and low pressure steam pipeline.Stainless steel pipe fittings connect with threaded pipe ends to form a pipeline system.Thread can be coated with appropriate cement (such as thick white paint, lead oxide glycerin cement, etc.) to ensure sealing.
Main products: coupling with male/female threads,union ,elbow,tee,nipple ,plug,pipe, valve, camlock etc.
Main technical data:pressure: 10KG/CM2 (150LBS), 60kg/ CM2 (1000WOG); thread standard: BSPT, NPT, BSP, DIN etc; dimensions: 1/8 "-4" ;material: 201, 304, 316 etc;
Stainless steel threaded pipe fittings advantages: instead of traditional carbon steel, aluminum, copper products, the product has a long life, beautiful appearance, acid and alkali resistance, corrosion resistance.It is the upscale community, the hotel, the equipment manufacturer's ideal choice.
