Stainless steel screwed Hexagon Plug
Application:
Stainless Steel 150lbs Screwed Fittings
Stainless steel screwed Hexagon Plug
Size: 1/2" ,3/4", 1",125,150,2",3",4",5",6"
Pressure: 150lbs
Dimension: ISO4144
Material: SUS201, SUS304, SUS316, (SS201 SS304 SS316)
Thread end: NPT, FNPT, BSPT, BSP,G,DIN2999&BS21,ISO228/1&ISO7/1
Specification:
Stainless steel screwed Hexagon Plug
A stainless steel hexagon plug is used at the end of a pipe and connect with the male thread end pipe to stop a flow of liquid in pipeline.Due to the hexagon body ,it is easy to assembly and fasten by tools.EATHU can supply stainless steel hexagon plugs with size 1/8”-4”,Max. Pressure 150psi and 300psi.All kinds of common stainless steel like 304/304L/316/316L are all available.

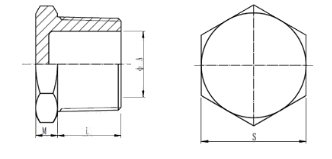

| SIZE | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
| A | 5.5 | 8 | 11.5 | 15 | 20.5 | 26 | 34.5 | 40 | 51 | 65.5 | 77.5 | 101.5 |
| S | 12.5 | 15 | 18.5 | 22.5 | 28 | 35 | 44 | 50.5 | 62.5 | 78.5 | 92 | 118 |
| M | 4 | 4 | 5 | 5 | 5.5 | 6 | 6.5 | 6.5 | 7 | 7 | 7.5 | 8 |
| L | 8 | 10.5 | 11 | 14.5 | 15.5 | 18 | 20.5 | 20.5 | 25 | 27 | 30 | 36 |
