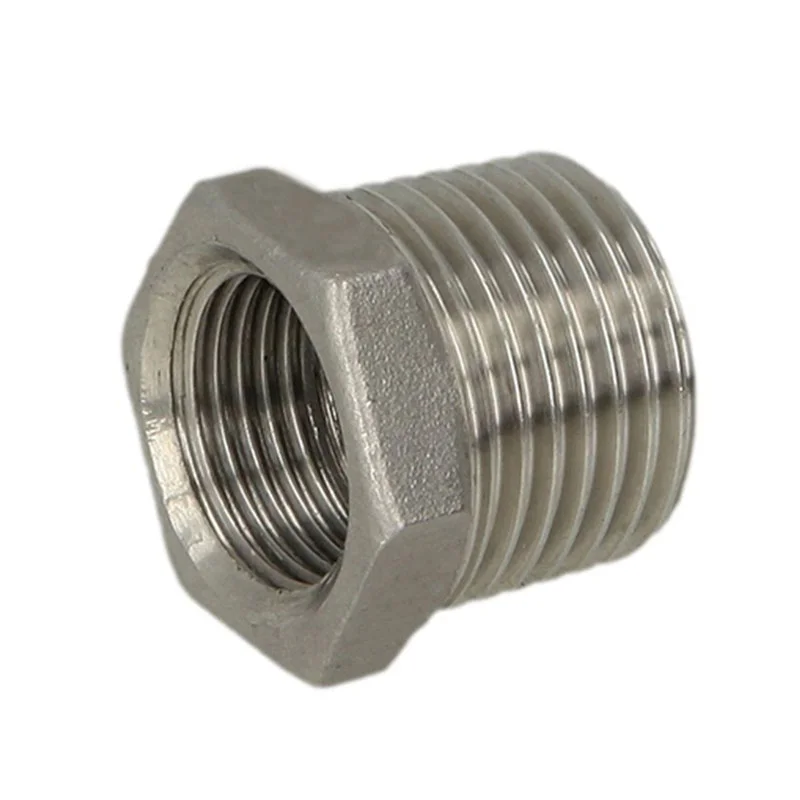

Stainless steel screwed Hexagon Bushing
Application:
Stainless steel screwed Hexagon Bushing
Size: 1/2" ,3/4", 1",125,150,2",3",4",5",6"
Pressure: 150lbs
Dimension: ISO4144
Material: SUS201, SUS304, SUS316, (SS201 SS304 SS316)
Thread end: NPT, FNPT, BSPT, BSP,G,DIN2999&BS21,ISO228/1&ISO7/1
Share to:

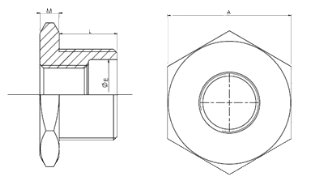

Specification:
| SIZE | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" | ||||||||||||||||||||
| 1/8" | 1/8" | 1/4" | 1/8" | 1/4" | 3/8" | 1/4" | 3/8" | 1/2" | 1/4" | 3/8" | 1/2" | 3/4" | 1/2" | 3/4" | 1" | 1/2" | 3/4" | 1" | 1-1/4" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 1-1/2" | 2" | 2" | 2-1/2" | 2-1/2" | 3" | |
| A | 14.5 | 18.5 | 22.5 | 28 | 35 | 44 | 49.5 | 61.5 | 77.5 | 90.5 | 116.5 | ||||||||||||||||||||
| E | 8 | 11.5 | 15 | 20.5 | 26 | 34.5 | 40 | 51 | 65.5 | 77.5 | 101.5 | ||||||||||||||||||||
| L | 10.5 | 11 | 14.5 | 15.5 | 18 | 20.5 | 20.5 | 25 | 27 | 30 | 36 | ||||||||||||||||||||
| M | 4 | 5 | 5 | 5.5 | 6 | 6.5 | 6.5 | 7 | 7 | 7.5 | 8 | ||||||||||||||||||||
