Forged Pipe Fittings

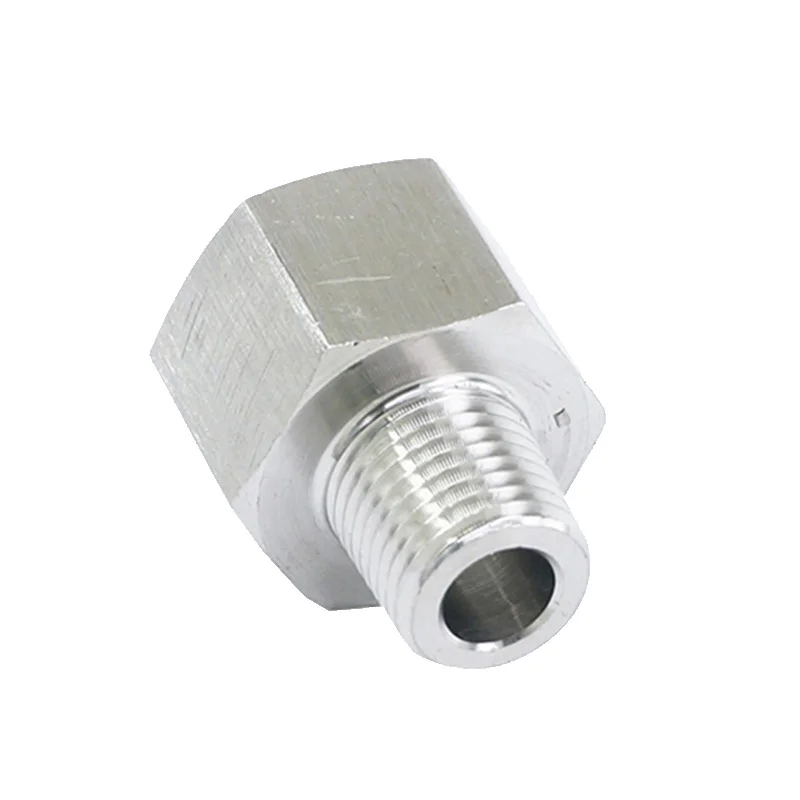

Stainless steel screwed Reduced Socket MF
Application:
Stainless steel screwed Reduced Socket MF
Size: 1/2" ,3/4", 1",125,150,2",3",4",5",6"
Pressure: 150lbs
Dimension: ISO4144
Material: SUS201, SUS304, SUS316, (SS201 SS304 SS316)
Thread end: NPT, FNPT, BSPT, BSP,G,DIN2999&BS21,ISO228/1&ISO7/1
Share to:
Specification:
| SIZE | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | ||||
| 1/8" | 1/4" | 1/4" | 3/8" | 3/8" | 1/2" | 1/2" | 1" | 3/4" | 1" | |
| L | 17 | 17.5 | 21 | 21 | 22.5 | 22.5 | 26 | 26 | 29 | 29 |
| L1 | 8 | 10.5 | 10.5 | 11 | 11 | 14.5 | 14.5 | 15.5 | 15.5 | 18 |
| H | 17 | 20.5 | 25 | 25 | 31 | 31 | 38 | 38 | 47 | 47 |
inquire now
If you have any questions or needs about the product, please fill in the following form and we will contact you as soon as possible.
