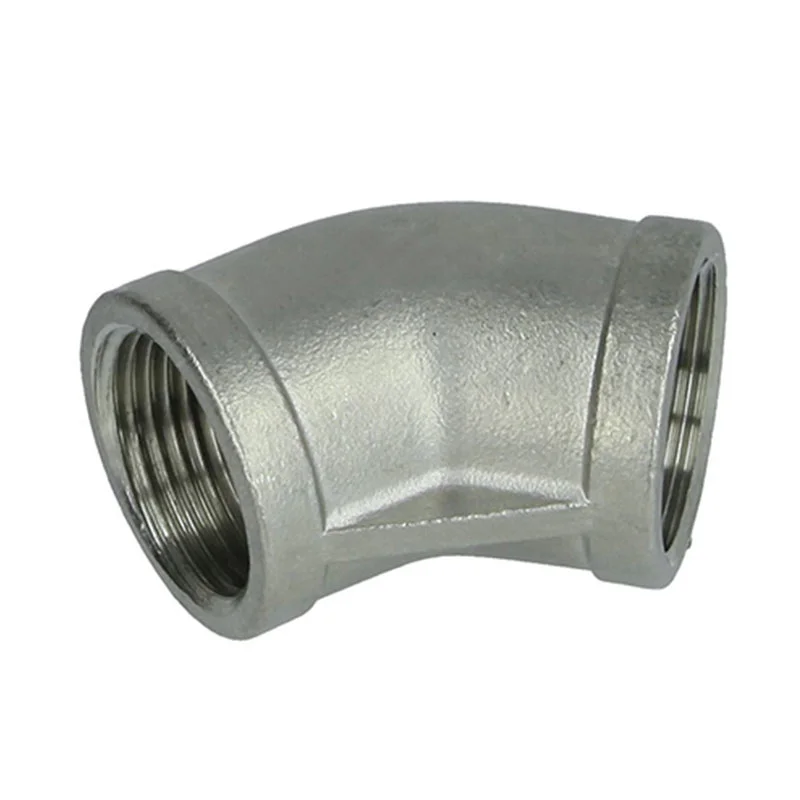

Stainless Steel Thread 45 Elbow — EATHU
Application:
Size: 1/2" ,3/4", 1",125,150,2",3",4",5",6"
Pressure: 150lbs
Dimension: ISO4144
Material: SUS201, SUS304, SUS316, (SS201 SS304 SS316)
Thread end: NPT, FNPT, BSPT, BSP,G,DIN2999&BS21,ISO228/1&ISO7/1
Specification:
Specification of 45° degree elbow
| SIZE | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
| B | 13 | 16.5 | 20 | 24.5 | 30 | 37.5 | 46.5 | 53 | 65.5 | 82 | 95.5 | 121.5 |
| L | 16 | 17 | 19 | 21 | 25 | 29 | 33 | 37 | 42 | 49 | 54 | 64 |
Product Details
Stainless Steel thread 45 Elbow pipe fittings is a kind of stainless steel pipe fittings.It is made from 304/304L or 316/316L stainless steel.There are several bright spots for the stainless steel pipe fittings:
1.The stainless steel pipe fittings made from stainless steel ,which is more durable,has stronger resistance to all kinds of chemicals,can be used freely in all kinds of environments.
2.The stainless steel pipe fittings have simple production process ,and the produciton take little time.
3.Due to the simple structure,the installation is relatively easy,do not need too much time and manpower,so that we can save a lot of costs.
4.Stainless steel pipe fitting has excellent strength and hardness,so it has a good resistance to the pressure.
5.The service life of stainless steel pipe fittings is up to 100 years,at least 70 years,almost same as the building life.
