EATHU's Expertise in Welding Neck Flange Forging

I. Introduction

In modern industrial pipeline systems, welding neck flanges are extremely crucial connection components. They are widely used in numerous fields such as petrochemical, electric power, shipping, and construction, and are responsible for ensuring the stability of pipeline connections and reliable sealing. With the continuous progress of industrial technology and the increasing diversification of application scenarios, the performance requirements for welding neck flanges have become more stringent. The forging process, as the core link in shaping the quality foundation of welding neck flanges, its scientific nature of the process, the accuracy of parameters, and the standardization of operations directly determine the mechanical properties, sealing performance, and service life of the flanges. In-depth exploration of the forging process of welding neck flanges is of great significance for improving the quality of flanges and ensuring the safe and stable operation of industrial production.

II. Meticulous Preparation Before Forging

(I) Stringent Selection of High-Quality Steel Billets

The quality of steel billets is the cornerstone of the performance of welding neck flanges. High-quality steel billets need to possess characteristics such as uniform chemical composition, low impurity content, and high purity. In terms of chemical composition, the precise control of carbon (C) content plays a key role in balancing the strength and toughness of the flange. For example, welding neck flanges made of medium carbon steel (with a carbon content of approximately 0.25% - 0.6%) can meet certain strength requirements while maintaining moderate toughness, and are suitable for working conditions under medium pressure and stress. Low carbon steel (with a carbon content lower than 0.25%) has better welding performance and plasticity, which is beneficial for subsequent processing and forming, but its strength is relatively weaker. The reasonable addition of alloying elements such as chromium (Cr), nickel (Ni), and molybdenum (Mo) can significantly improve the corrosion resistance, high-temperature strength, and oxidation resistance of the steel billet.

There are a variety of rigorous and scientific methods to judge the quality of steel billets. Spectral analysis technology, with its high precision, can accurately measure the content of various elements in the steel billet, and the deviation can be controlled within a very small range to ensure that the composition meets the established standards. Metallographic inspection assesses the quality by observing the microstructure of the steel billet, such as grain size, uniformity, and the presence of defects (such as inclusions, segregation, etc.). The grains of high-quality steel billets should be fine and evenly distributed without obvious defects, which is the key microstructural feature to ensure stable performance.

(II) Scientific Approach to Precise Blanking

Blanking according to the precise specifications of the flange is an important prerequisite for ensuring the smooth progress of subsequent processing and meeting product quality standards. If the blanking size is too small, it will be difficult to achieve the expected shape and size requirements during the forging process, which may lead to product scrapping. On the contrary, if the blanking size is too large, it will cause material waste and increase production costs. Reasonable allowance control is the key. For welding neck flanges with smaller sizes and relatively lower precision requirements, the blanking allowance is usually controlled within 3 - 5 mm on one side. For large and high-precision flanges, the allowance needs to be accurately set within 5 - 10 mm on one side to reserve sufficient processing space to meet the strict dimensional accuracy requirements of subsequent machining processes such as turning and grinding.

In actual operation, advanced numerical control cutting equipment is widely used. With the help of computer programming technology, it can accurately control the cutting path and size according to the design drawings, and the cutting accuracy can be as high as ±0.5 mm, effectively ensuring the accuracy and consistency of the blanking size and laying a solid foundation for the subsequent forging process.

III. Heating - The Key to Initiating Forging

(I) Precise Control of the Appropriate Heating Temperature

Different steel grades have their specific appropriate heating temperature ranges due to their unique chemical compositions and crystal structures. Taking the common 304 stainless steel as an example, its initial forging temperature is usually between 1150 - 1200°C, and the final forging temperature should not be lower than 900°C. If the heating temperature is too high, exceeding the upper limit of the initial forging temperature, the grains of the steel billet will grow rapidly, resulting in a serious deterioration of the mechanical properties of the flange, such as a decrease in strength and a significant reduction in toughness. In subsequent use, it is extremely prone to deformation and even fracture. Conversely, if the heating temperature does not meet the requirements, the plasticity of the steel billet is insufficient, and it is difficult to deform during forging. This not only increases the forging difficulty and energy consumption but also may cause defects such as cracks, endangering product quality and safety.

During the heating process, advanced heating furnaces are equipped with high-precision temperature monitoring and control systems. For example, a combination of thermocouple thermometers and programmable logic controllers (PLC) can monitor the furnace temperature in real-time and accurately, with a control accuracy of ±5°C. By presetting the heating curve, it can ensure that the steel billet is heated uniformly to the ideal forging temperature range within the specified time and is stably maintained within this temperature range during the forging process, ensuring the smooth progress of the forging process and the stable and reliable product quality.

(II) Secrets to Achieving Uniform Heating

Achieving uniform heating of the steel billet is one of the core points in the heating process. The performance and type of heating equipment have a significant impact on the uniformity of heating. Induction heating furnaces utilize the principle of electromagnetic induction to generate an induced current in the steel billet to achieve self-heating. They have the advantages of fast heating speed, high efficiency, and strong heat penetration, and can ensure that the temperature distribution inside the steel billet is uniform, with a temperature difference within ±10°C. Gas heating furnaces generate heat by burning gas. With a well-designed furnace structure and reasonable combustion control, they can also achieve good heating effects. However, attention needs to be paid to the optimization and regulation of gas flow, flame distribution, and furnace gas circulation.

At the operation level, a reasonable charging method is crucial. The steel billets should be evenly distributed in the furnace to avoid piling up or blocking each other, ensuring that heat can be fully transferred to each part. At the same time, during the heating process, the steel billets should be turned or rotated in a timely manner to ensure that each part of the steel billet is heated uniformly, preventing the occurrence of local overheating or undercooling phenomena, and providing a uniformly heated billet for the subsequent forging process.

IV. Forming - The Ingenious Forging Process

(I) Open Die Forging: The Art of Free Shaping

Open die forging, with its flexible and changeable characteristics, occupies an important position in the field of welding neck flange forging. It is especially suitable for the forging of single-piece or small-batch production or flanges with complex shapes and special sizes. During the forging process, the basic processes include upsetting, drawing out, punching, and expanding. The upsetting process can effectively improve the internal structure of the steel billet, making it more compact and uniform. For example, upsetting a steel billet with an original height-to-diameter ratio of 3:1 to about 1.5:1 can significantly refine the grains and improve the material properties. The drawing out operation gradually reduces the cross-sectional area of the steel billet and increases its length, which can effectively improve the distribution of metal flow lines and enhance the mechanical properties of the flange.

In actual operation, experienced forgers rely on the design shape and size requirements of the flange, skillfully use forging tools, and rely on their keen observation and superb skills to adjust the forging force, direction, and rhythm in real-time. For example, when forging large welding neck flanges, heavy forging hammers are required. Workers gradually shape the outline of the flange by precisely controlling the hammering force and landing point, and then perform fine trimming to ensure that the dimensional accuracy and shape meet the design standards. The dimensional tolerance can be controlled within ±2 mm, and the surface roughness reaches Ra12.5 - 25μm.

(II) Die Forging: The Model of Precise and Efficient Forming

The die forging process can forge welding neck flanges with complex shapes and precise dimensions by virtue of high-precision dies, and shows incomparable advantages in mass production. Die design and manufacturing are the key core technologies of die forging. The die cavity should be designed according to the precise three-dimensional model of the flange, taking into account the flow law and shrinkage characteristics of the metal during the forging process, and reserving a reasonable machining allowance and draft angle. For example, for flanges with complex internal structures, the die needs to be designed with ingenious diversion cavities and pre-forging cavities to guide the metal to fill each part smoothly and ensure the forming quality.

During the forging process, the heated steel billet is placed in the die cavity, and under the powerful pressure of the press, the metal flows rapidly and fills the cavity. Advanced die forging presses can provide pressures of thousands of tons or even tens of thousands of tons, ensuring that the metal closely adheres to the die cavity. The formed flange has extremely high dimensional accuracy, with a tolerance within ±0.5 mm, and the surface roughness can reach Ra3.2 - 6.3μm, significantly reducing subsequent processing steps, improving production efficiency and product quality stability.

(III) Loose Tooling Forging: A Flexible and Practical Compromise

Loose tooling forging cleverly combines some of the advantages of open die forging and die forging, with a certain degree of flexibility and relatively high production efficiency. It is suitable for the forging of welding neck flanges with a certain regularity in shape in medium-batch production. The production of loose tooling needs to comprehensively consider the shape characteristics and production batch of the flange. For common-shaped flanges, simple combined loose tooling is used, which is manufactured by machining or casting methods, and its manufacturing accuracy can reach ±1 mm. During the forging operation, the loose tooling is installed on the forging equipment, and workers use the contour of the loose tooling to guide the deformation of the steel billet. Compared with open die forging, it can obtain forgings closer to the finished product shape more efficiently, reduce subsequent machining allowances, and lower production costs. At the same time, it retains a certain degree of flexibility in shape adjustment and can cope with a certain degree of design changes or special requirements.

V. Post-Forging Cooling - An Unneglectable Ending

(I) Subtle Control of Cooling Rate

The cooling rate after forging is crucial for the transformation of the flange's microstructure and the optimization of its properties. Different steel grades have significant differences in their microstructure transformation characteristics, so their cooling requirements vary. For carbon steel flanges, if the cooling rate is too fast, such as rapid quenching in a quenching medium, a large amount of martensite structure will be formed, resulting in a significant increase in the hardness of the flange but a sharp decline in toughness, and there is a risk of brittle fracture. Slow cooling may form a coarse pearlite structure, reducing strength and hardness. For alloy steel flanges, such as chromium-molybdenum alloy steel, the microstructure transformation process is more complex, and the cooling rate needs to be precisely controlled to promote the formation of a stable tempered sorbite structure to obtain good comprehensive mechanical properties.

In actual production, advanced cooling processes such as isothermal cooling and stepped cooling are often used. Isothermal cooling rapidly cools the forging to a specific temperature range and maintains it for a period of time to ensure uniform transformation of the microstructure. Stepped cooling controls the cooling rate in stages to ensure a stable and orderly microstructure transformation process, effectively avoiding microstructure defects and performance deterioration caused by improper cooling rates.

(II) Rational Choice of Cooling Methods

Common cooling methods include air cooling, air blast cooling, water cooling, and oil cooling, each with its applicable scenarios and advantages and disadvantages. Air cooling is simple to operate and has low cost, and is suitable for carbon steel flanges with low requirements for cooling rate and small size. Air blast cooling accelerates cooling by forced ventilation, and the cooling rate is faster than air cooling. It can be used for some medium-sized flanges with certain requirements for microstructure properties. However, attention needs to be paid to the control of the uniformity of air volume and wind direction to prevent local overcooling. Water cooling and oil cooling have extremely fast cooling rates and can achieve a rapid quenching effect, but the risk is relatively high. The cooling time and temperature need to be strictly controlled. They are often used for specific alloy steels or flanges with high hardness requirements, and usually require subsequent tempering treatment to adjust the microstructure properties.

When choosing a cooling method, factors such as the size, shape, material, and performance requirements of the flange need to be comprehensively considered. For flanges with complex shapes and uneven wall thicknesses, to avoid internal stress and deformation caused by uneven cooling, it is advisable to adopt a slow cooling method or use special cooling fixtures to assist cooling to ensure a uniform and stable cooling process and guarantee the quality and accuracy of the flange.

VI. Comprehensive Consideration of the Forging Process

(I) Trade-off between Forging Quality and Batch Size

When choosing a forging process, forging quality and production batch size are the key decision-making factors. For large, complex welding neck flanges in single-piece or small-batch production, open die forging is the preferred choice due to its strong flexibility and adaptability. Although its production efficiency is relatively low, it can meet the needs of personalized customization and is widely used in heavy machinery, shipbuilding, and other fields. For example, in the pipeline connection system of a large ship engine, customized oversized welding neck flanges are forged by the open die forging process to ensure perfect adaptation to the complex pipeline layout and ensure the safe and stable operation of the ship's power system.

In mass production of standardized welding neck flanges, die forging shows unparalleled advantages. Its high precision and high efficiency can significantly reduce production costs and improve product consistency. For example, in large-scale pipeline construction projects in the petrochemical industry, a large number of welding neck flanges with the same specifications are produced by the die forging process, ensuring the reliability and interchangeability of pipeline connections and meeting the high-efficiency progress requirements of the project. Loose tooling forging plays an important role in medium-batch production when the flange shape has a certain regularity, and is widely used in building water supply and drainage, small industrial equipment, and other fields, achieving a good balance between production efficiency and cost control.

(II) Balance of Cost, Efficiency, and Quality

Achieving the optimal balance of cost, efficiency, and quality is the core goal of welding neck flange forging production. In terms of cost control, in addition to reasonably choosing the forging process, improving the utilization rate of raw materials is crucial. Measures such as optimizing the blanking scheme, reducing the scrap rate during the forging process, and recycling scrap materials can effectively reduce raw material costs. For example, the use of advanced computer-aided nesting technology can increase the utilization rate of raw materials by 10% - 15% and significantly reduce waste.

In terms of improving production efficiency, the automation upgrade of equipment and the optimization of the production process are the key paths. The introduction of an automated forging production line can realize continuous operation from heating, forging to cooling, reducing human intervention and production cycle. For example, an advanced die forging automated production line can increase production efficiency by 3 - 5 times compared with the traditional manual operation production line, and reduce labor costs by about 40% - 60% at the same time.

Quality assurance is always the top priority. Establish a complete quality management system covering all aspects from raw material inspection, process monitoring to finished product testing. Adopt advanced non-destructive testing technologies such as ultrasonic testing and magnetic powder testing to comprehensively detect the internal defects and surface quality of the flange, ensuring that the product quality meets or exceeds industry standards and enhancing the market competitiveness and brand reputation of the enterprise.

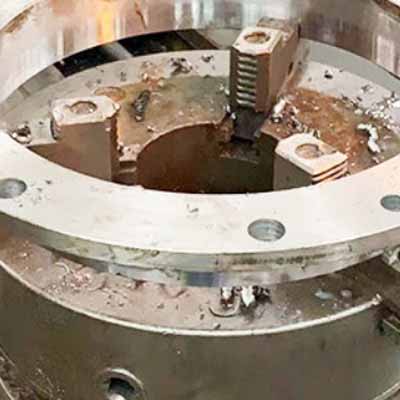

VII. EATHU's Professional Performance in the Field of Welding Neck Flange Forging

EATHU, as an enterprise with many years of experience in the field of welding neck flange forging, has always been committed to providing customers with high-quality products and services.

In terms of process technology, EATHU continuously introduces and absorbs advanced forging technologies and concepts, and continuously optimizes the forging process of welding neck flanges. Its technical team conducts in-depth research on the characteristics of different steel grades and the adaptability of forging process parameters. Through a large number of experiments and practical accumulations, it has accurately mastered the best forging process routes for various welding neck flanges. Whether it is open die forging, die forging or loose tooling forging process, EATHU can skillfully use and innovate and improve. For example, in the open die forging process, EATHU's craftsmen can more accurately control the forging force and rhythm with their superb skills and rich experience, making the effects of upsetting, drawing out and other processes optimal, effectively improving the internal structure quality and mechanical properties of the flange. In die forging technology, EATHU invests a lot of resources in die research and development and manufacturing. It uses advanced CAD/CAM technology to design dies to ensure that the accuracy and complexity of the die cavity meet the needs of various high-end customers. The dimensional accuracy and surface quality of the die forging flanges produced by EATHU are at the leading level in the industry.

In terms of raw material management, EATHU has established a strict supplier screening and raw material inspection system. It has established long-term and stable cooperative relationships with world-renowned steel suppliers to ensure that the purchased steel billets come from reliable sources and their quality meets or exceeds industry standards. After each batch of steel billets enters the factory, they must undergo strict tests in EATHU's professional laboratory, including spectral analysis, metallographic inspection and other procedures. Only completely qualified raw materials will enter the production process, ensuring the quality foundation of welding neck flanges from the source.

Quality control is one of the core links in EATHU's enterprise operation. EATHU has constructed a complete quality management system covering the whole process from raw material procurement to finished product delivery. During the production process, advanced online monitoring equipment and automated testing systems are used to monitor the key parameters in the forging process in real-time, such as temperature, pressure, dimensional changes, etc. Once an abnormal situation is detected, an alarm will be automatically issued and adjustments will be made to ensure that each production process meets the process standards. The finished product testing process is even more strictly controlled. In addition to the conventional dimensional accuracy and surface quality testing, advanced non-destructive testing technologies are also used to deeply detect the internal defects of the flange to ensure that each welding neck flange delivered to the customer is high quality and reliable in performance
