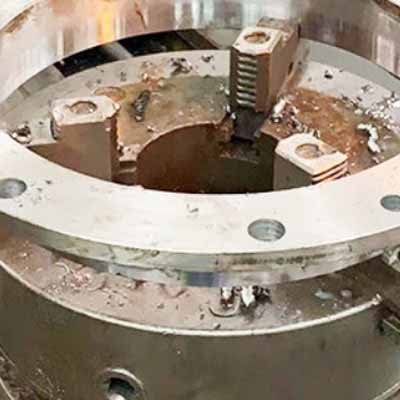

Stainless Steel Flange Processing

Problems in Stainless Steel Flange Processing

Weld Defect Challenges

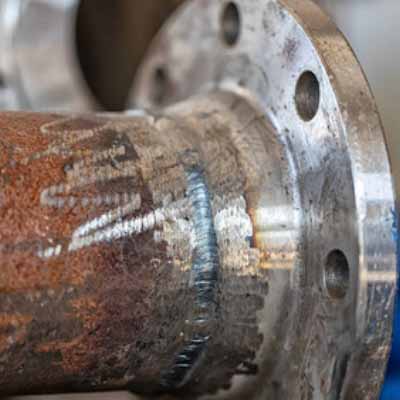

During the processing of stainless steel flanges, weld defects are rather troublesome issues. Common weld defects include pores, cracks, incomplete penetration, and slag inclusions. The appearance of pores is mostly due to insufficient shielding gas during welding, or the presence of impurities such as oil or rust on the surface of the welded parts, which prevents the gas from escaping from the molten pool and results in cavities after the weld solidifies. The causes of cracks are relatively complex and may stem from excessive welding stress, improper chemical composition of the material, or unreasonable welding process parameters. For example, hot cracks usually occur in the high-temperature stage of weld cooling and are commonly found in carbon steel welds with a large amount of impurity elements and single-phase austenitic stainless steel welds. They are significantly affected by factors such as welding tensile stress, low-melting-point eutectic, and the degree of overheating of the welded joint. Cold cracks, on the other hand, mostly appear in the heat-affected zones of high and medium carbon steels and low and medium alloy steels. The hardenability tendency of the steel grade, the hydrogen content and distribution in the welded joint, and the restraint state are the key factors causing cold cracks. Incomplete penetration often occurs when the welding current is too small, the welding speed is too fast, or the groove angle of the welded parts is not appropriate, resulting in the failure of the root of the weld to be fully fused. Slag inclusions occur when the slag fails to float out of the molten pool in time during the welding process and remains in the weld.

These weld defects are extremely harmful to the quality of stainless steel flanges. From an appearance perspective, they make the flange surface uneven and seriously affect the aesthetics. In some application scenarios with strict appearance requirements, such as food processing and precision instrument manufacturing, flanges with obvious weld defects simply cannot meet the needs. More importantly, weld defects can significantly weaken the connection strength and sealing performance of the flange. In actual use, if used in a pipeline system for transporting high-pressure liquids or gases, defective welds are highly prone to leakage, which not only causes material losses but also may lead to safety accidents, endangering the lives and property of personnel. Taking the chemical industry as an example, if the pipeline transports toxic, harmful, flammable, and explosive media, once the flange weld leaks, the consequences are unimaginable.

Dilemma of Uneven Grinding and Polishing

Grinding and polishing, as crucial processes for improving the surface quality of stainless steel flanges, are prone to causing surface unevenness if not properly operated. Currently, the main grinding methods include manual grinding and machine grinding. Manual grinding depends on the operator's skills and experience and has high flexibility. It can perform fine processing on flanges with complex shapes. However, its disadvantages are also obvious. Human factors such as the physical strength, mood, and proficiency of the workers can lead to inconsistent grinding force and speed, making it difficult to ensure surface flatness and smoothness. Although machine grinding has higher efficiency and can ensure a certain degree of stability, factors such as the accuracy of the equipment, the wear of the grinding tools, and the programming parameters can also cause differences in the grinding effect. If the equipment is aging and the accuracy decreases, it is easy to leave marks of different depths during the grinding process.

There are multiple reasons for the uneven grinding and polishing. The setting of process parameters is crucial. Parameters such as the rotation speed and feed rate during grinding and the concentration of the polishing agent and polishing time during polishing must be reasonable; otherwise, the desired surface effect cannot be achieved. The maintenance of equipment cannot be ignored. If the grinding tools are severely worn after long-term use and not replaced in time, the grinding effect will be greatly reduced. The skill level and sense of responsibility of the operators are even more critical. Novice workers may not be proficient in operation and unable to control the grinding force and rhythm. Workers with a weak sense of responsibility may cut corners and be perfunctory during work, also leading to frequent surface quality problems. In addition, the initial state of the raw materials, such as differences in surface flatness and hardness, also poses challenges to grinding and polishing. If the surface of the raw materials is uneven or the hardness is inconsistent, it is extremely difficult to achieve a uniform grinding and polishing effect.

Hidden Danger of Difficult-to-Remove Scratches

The appearance of scratches on the surface of stainless steel flanges is a common and headache problem during the processing. These scratches can occur in many stages. During the handling of raw materials, improper operation and collision or friction with sharp objects can easily leave scratches on the surface. During mechanical processing, such as cutting and bending processes, if the relative movement between the tool and the workpiece is not well controlled, scratches will also be generated. In addition, inadvertent contact of tools during assembly and commissioning can also cause surface damage. Moreover, when tools of different materials come into contact with stainless steel, due to the difference in hardness, marks are also likely to be left on its surface. For example, when ordinary carbon steel tools slide across the surface of a stainless steel flange, scratches are easily formed.

From a chemical principle perspective, stainless steel has good corrosion resistance because a dense passive film can be formed on its surface. This film can effectively block the erosion of external media. However, once scratches appear on the surface and the passive film is damaged, in the presence of corrosive media, it is like opening a "door" for the corrosion reaction. The metal matrix at the scratched area is directly exposed and comes into contact with oxygen, moisture, and other corrosive substances in the air, resulting in chemical corrosion or electrochemical corrosion. Chemical corrosion occurs when the metal directly reacts with the surrounding media. For example, in a humid environment containing acidic gases, the iron element on the surface of stainless steel will react with the acid to form iron salts. Electrochemical corrosion occurs because a potential difference is formed between the scratched area and the unscratched area, forming a microbattery, which accelerates the corrosion rate of the metal and causes the flange to rust. This not only affects the appearance but also seriously damages the corrosion resistance of the product and shortens its service life. In application scenarios such as marine engineering and chemical industries where the corrosive environment is severe, this influence is especially fatal.

Solutions:

Advanced Grinding Technologies

In the process of addressing the problems in stainless steel flange processing, advanced grinding technologies are like a bright light, illuminating the path to improving product quality. Laser grinding technology, as an outstanding one among them, utilizes a high-energy-density laser beam focused on the workpiece surface to instantaneously melt and vaporize the material, thereby removing surface defects and unevenness. Compared with traditional grinding, laser grinding has many significant advantages. In terms of precision, it can precisely control the depth and range of grinding. For fine weld defects such as tiny pores and shallow cracks, it can achieve fine repairs at the millimeter or even micrometer level, ensuring an extremely high level of flatness of the flange surface. In terms of efficiency, laser grinding does not require cumbersome tool changing and clamping procedures. The rapid scanning of the laser beam enables large-area grinding operations to be completed in a short time, greatly shortening the processing cycle. Moreover, since it is a non-contact processing method, it avoids the extrusion and scratching of the workpiece surface by traditional grinding tools, effectively reducing the risk of surface damage and making the flange surface smoother and more uniform.

CNC grinding technology is also remarkable. It relies on a computer numerical control system to precisely control the movement trajectory, rotation speed, feed rate, and other parameters of the grinding tool. Taking the grinding of flanges with complex shapes as an example, the CNC system can drive the grinding head to perform adaptive grinding along the contour of the flange according to the preset program. Whether it is an arc, cone, or irregular surface, it can ensure uniform grinding force. In practical applications, for mass-produced stainless steel flanges, CNC grinding not only ensures the quality stability of each product but also can further improve production efficiency by optimizing the processing path and reducing idle travel time. For example, in fields such as automobile manufacturing and aerospace where high precision and consistency requirements are imposed on components, CNC grinding technology helps stainless steel flanges meet high-standard assembly requirements, laying a solid foundation for the performance and reliability of the overall product.

Optimized Pickling and Passivation Processes

The optimization of the pickling and passivation process is a crucial link in solving the problems in stainless steel flange processing. Improving the pickling and passivation formula is like putting a solid "protective armor" on the product. Traditional pickling and passivation liquid formulas often have deficiencies when dealing with complex processed surfaces. New formulas significantly improve the treatment effect by adjusting the types and concentrations of acids and adding special inhibitors and activators. For example, adding an appropriate amount of hydrofluoric acid to the pickling solution can more effectively remove the stubborn oxide scale formed on the stainless steel surface due to high-temperature welding. At the same time, combined with an organic inhibitor, it can protect the metal matrix during the pickling process and prevent excessive corrosion. For some sensitized stainless steel materials, a combination of low-concentration nitric acid and specific stabilizing additives can achieve the pickling purpose while avoiding the risk of intergranular corrosion.

Precisely controlling the process parameters is the core point in ensuring the quality of pickling and passivation. Temperature control is of vital importance. Different pickling and passivation liquids have their appropriate working temperature ranges. For example, a passivation liquid mainly composed of nitric acid can form a high-quality passive film between room temperature and 40°C. If the temperature is too high, nitric acid may volatilize too quickly, which not only affects the passivation effect but also causes environmental pollution and resource waste. If the temperature is too low, the reaction rate slows down, and it is difficult to form a dense passive film. The control of time is equally critical. If the pickling time is too short, surface impurities and oxide layers cannot be completely removed. If the pickling time is too long, over-pickling may occur, increasing the surface roughness of the metal and even causing defects such as pitting. In actual operation, with the help of advanced temperature control equipment and automated timing systems, the temperature and time are accurately adjusted according to the process requirements, providing reliable protection for the corrosion resistance of stainless steel flanges.

Prevention-Oriented Control Measures

Prevention-oriented control measures are like a solid dam that can effectively block the flood of processing problems. In the raw material inspection process, strict control is of the utmost importance. For the purchased stainless steel sheets, advanced equipment such as spectrometers and metallographic microscopes are used to detect their chemical compositions and metallographic structures in detail to ensure that they meet the corresponding standards. For example, 304 stainless steel requires a chromium content of 18% - 20% and a nickel content of 8% - 10.5%. If the composition deviation is too large, it will directly affect the corrosion resistance and processing performance of the material. At the same time, the surface quality of the raw materials is carefully inspected to prevent sheets with cracks, scratches, inclusions, and other defects from entering the production line, reducing the processing risks from the source.

Equipment maintenance is a key support for ensuring smooth processing. Regularly overhaul processing equipment such as welding machines, bending machines, and grinding machines. Check the wear of the electrodes of the welding machine and the stability of the current to ensure stable welding quality. Verify the precision of the molds of the bending machine and the smooth movement of the sliders to avoid dimensional deviations during the bending process. Pay attention to the wear of the grinding tools and the precision of the spindle of the grinding machine to ensure uniform grinding effect. In addition, maintain the lubrication system and electrical system of the equipment, replace the lubricating oil in time, and check the electrical circuits to prevent processing problems caused by equipment failures.

Personnel training and empowerment are also indispensable. Conduct systematic training for operators, covering process knowledge, operation skills, quality awareness, and other aspects. In the process knowledge training, explain in-depth the processing technology principles of stainless steel flanges and the key points and precautions of each process, so that operators understand why they need to operate in this way. The operation skills training improves the proficiency of workers in welding, grinding, bending, and other processes through practical demonstrations and simulated operations, enabling them to skillfully handle various processing scenarios. The quality awareness training focuses on strengthening the operators' awareness of the importance of quality, establishing the concept of "quality first", and prompting them to be conscientious in their work and strictly abide by the operating procedures, actively avoiding processing problems caused by human negligence.
