A Complete Guide to 8-Word Blind Flanges
In the intricate industrial pipeline systems, the 8 - word blind flange plays a crucial role. Although it's not as eye - catching as the pipelines that transport media, it acts like a silent guardian, ensuring the smooth operation of pipeline systems across various industries. From the long - distance transportation of oil and gas, to the energy conversion in power plants, and the precise operations in the pharmaceutical industry, the 8 - word blind flange can be found everywhere.
1. Structure of the 8 - Word Blind Flange
1.1 Structural Features

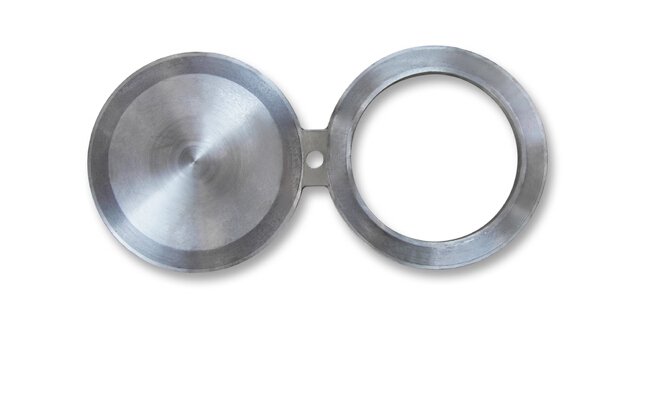

The 8 - word blind flange gets its name because it resembles the number "8" in shape. It is ingeniously composed of two discs with different diameters, connected by a short section. The larger disc is similar to a common flange, with bolt holes evenly distributed along its circumference. These holes are the key to connecting with other flanges or pipe fittings. When making a connection, bolts and nuts pass through these holes to firmly fasten the two flanges together. The smaller disc, on the other hand, functions as a blind plate. When it is rotated to a position perpendicular to the pipeline axis, it acts like a closed door, effectively blocking the flow of media in the pipeline and achieving a seal.

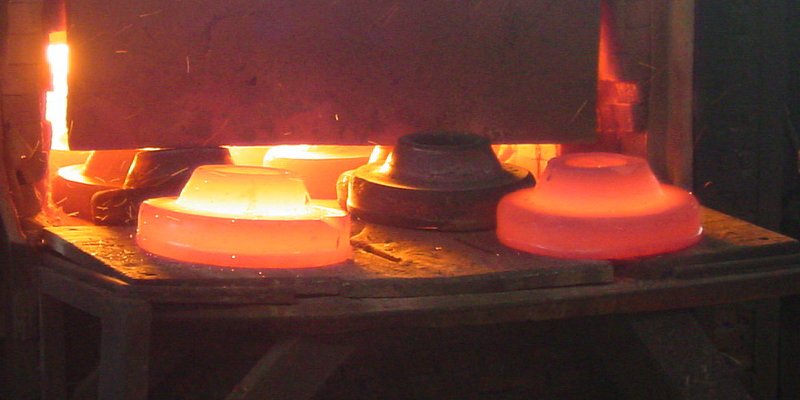

1.2 Material Selection
Different application scenarios have varying requirements for the materials of 8 - word blind flanges.
Carbon Steel: Carbon steel, with its relatively low cost, performs well in general industrial environments such as those with normal temperature and pressure, where water or air is being transported, due to its good mechanical properties. For example, in the water - transportation pipeline system of an ordinary factory, a carbon - steel 8 - word blind flange can meet the basic requirements.
Stainless Steel: In corrosive industries like petrochemicals, stainless - steel 8 - word blind flanges are the top choice due to their excellent corrosion resistance. They can withstand the erosion of corrosive media such as acids and alkalis, ensuring long - term stable sealing and reducing the risk of leakage. For instance, in a chemical pipeline transporting sulfuric acid, the stainless - steel material can keep the flange in good condition.
Alloy Steel: Alloy steel has obvious performance advantages under extreme conditions. In environments with high temperature, high pressure, or abrasion, such as the high - temperature cracking units in refineries, the alloy - steel 8 - word blind flange can still maintain its complete functionality, thanks to its high strength, heat resistance, and wear resistance.
2. Working Principles of the 8 - Word Blind Flange
2.1 Normal Operation Mode
When the pipeline is operating normally, the small disc of the 8 - word blind flange is parallel to the pipeline axis. At this time, the large disc is connected to other flanges. Through the tight connection of bolts and nuts, the media flow path is opened. The bolts and nuts press the flange faces against the gasket, forming a stable seal that allows fluids or gases to flow smoothly.
2.2 Isolation Function
When it is necessary to maintain, repair, or change the process of a certain part of the pipeline, the operator only needs to rotate the flange 180 degrees. Then the small disc will be perpendicular to the pipeline axis. This can quickly block the flow of media and form a reliable seal. The isolation effect depends on the quality of the gasket and the degree of bolt tightening. For example, during the maintenance of an oil pipeline, high - quality gaskets and bolts can ensure that there is no leakage between the isolated part and the rest of the pipeline.
3. Applications of the 8 - Word Blind Flange
3.1 Petrochemical Industry
The petrochemical industry deals with a variety of dangerous and valuable substances, and the 8 - word blind flange plays an indispensable role.
Pipeline Maintenance: When cleaning, inspecting, or repairing pipelines in a refinery, the 8 - word blind flange can isolate the relevant area, preventing flammable or toxic substances from flowing in and ensuring the safety of maintenance workers.
Process Optimization: The petrochemical process is complex and requires flexible pipeline switching. The 8 - word blind flange can quickly achieve pipeline changes, improving production efficiency.
3.2 Natural Gas Industry
The natural gas industry has extremely high requirements for safety, and the 8 - word blind flange plays a prominent role in ensuring the integrity of the pipeline system.
Wellhead Operations: At natural gas wellheads, it is used to control the opening and closing of the well. During maintenance operations, it can isolate the wellhead from the pipeline network to prevent gas leakage.
Pipeline Terminals and Compressor Stations: During maintenance, equipment upgrades, or emergency shutdowns in these areas, the 8 - word blind flange can isolate the pipeline to ensure the safe and continuous transportation of natural gas.
3.3 Power Generation Industry
In different types of power plants, the 8 - word blind flange plays an important role.
Thermal Power Plants: In steam pipelines and feed - water pipelines, when maintaining boilers or turbines, it can isolate the pipelines to protect maintenance workers from high - pressure steam and hot water.
Hydropower Plants: The 8 - word blind flanges installed in the inlet and outlet pipelines of turbines are crucial for equipment maintenance and commissioning, ensuring the efficient operation of power generation.
Nuclear Power Plants: Given the high - risk nature of nuclear power plants, the quality and performance of 8 - word blind flanges are strictly regulated. During maintenance and inspection, they can isolate pipelines containing radioactive media to ensure the safety of the nuclear power plant and the environment.
3.4 Pharmaceutical Industry
The pharmaceutical industry has strict requirements for the cleanliness and safety of the production process, and the 8 - word blind flange also needs to meet specific standards.
Cleanroom Pipelines: In the pipelines of cleanrooms that transport raw materials, purified water, and other pharmaceutical - grade substances, 8 - word blind flanges made of 316L stainless steel that meet GMP standards are often used. They are highly polished to prevent bacterial growth and ensure the quality of pharmaceutical products.
4. Selection Criteria for the 8 - Word Blind Flange
4.1 Consideration of Pressure Rating
When choosing an 8 - word blind flange, the pressure rating is a fundamental factor. Different pipelines have different pressures, and the pressure rating of the flange must match the working pressure of the pipeline. If the pressure rating is too low, it cannot withstand the pressure and may leak; if it is too high, it will increase costs and cause installation and operation difficulties. Industry standards such as ASME B16.5 in the United States and EN 1092 - 1 in Europe can provide guidance on determining the appropriate pressure rating.
4.2 Adaptation of Nominal Diameter
The nominal diameter of the 8 - word blind flange should be consistent with that of the pipeline. A mismatch will lead to installation problems and affect the performance of the pipeline system. It is crucial to select the appropriate nominal diameter by considering factors such as the pipeline's design flow rate and media velocity. Choosing a standard nominal diameter can ensure compatibility and ease of replacement, reduce inventory costs, and simplify the procurement process.
4.3 Analysis of Sealing Surface Types
The sealing surface type of the 8 - word blind flange has a significant impact on its sealing performance.
Flat Face (FF) Type: The flat - face flange, with its simple structure, has relatively poor sealing performance and is suitable for applications with low pressure and non - hazardous media.
Raised Face (RF) Type: Widely used in general industrial pipelines, the raised - face flange has better sealing performance than the flat - face flange and is suitable for a variety of scenarios.
Male - Female Face (MFM) and Tongue - Groove Face (TG) Types: These types have excellent sealing performance and are suitable for high - pressure, high - temperature, or hazardous media. Their interlocking design can prevent gasket extrusion and enhance sealing integrity.
4.4 Attention to Material Compatibility
In addition to general properties such as strength and corrosion resistance, the compatibility between the material and the pipeline media should also be emphasized. For example, pipelines transporting seawater need to select flange materials resistant to chloride corrosion, food and pharmaceutical applications require materials that meet hygiene standards, and alloy steel can be chosen for high - temperature applications.
5. Installation and Maintenance of the 8 - Word Blind Flange
5.1 Installation Steps and Key Points
Pre - installation Inspection: Before installation, carefully inspect the 8 - word blind flange, pipeline, and gasket. Check for defects such as cracks, deformations, or damage to the sealing surface. At the same time, thoroughly clean the flange faces and the inside of the pipeline to remove dirt, grease, and rust.
Alignment Operation: Ensure that the 8 - word blind flange is correctly aligned with the pipeline. Misalignment can cause uneven stress on the bolts, leading to leakage or even flange failure. Use alignment tools if necessary for precise alignment.
Bolt Tightening: When tightening the bolts, follow the principle of symmetry and uniformity. First, hand - tighten to ensure proper seating, and then use a torque wrench to increase the torque. The torque value should be determined according to the flange material, size, and application requirements, referring to relevant industry standards.
Post - installation Testing: After installation, conduct a pressure test and a leak test on the pipeline system to check its integrity under pressure and the presence of leaks, respectively.
5.2 Key Maintenance Items
Regular Inspection: Regularly check the 8 - word blind flange for signs of wear, corrosion, or damage. Check whether the bolts are loose, whether the gasket is aging or damaged, and whether the flange faces are leaking. If necessary, use non - destructive testing methods such as ultrasonic testing or magnetic particle testing to assist visual inspection.
Condition Monitoring: During the operation of the pipeline, monitor the performance of the 8 - word blind flange. Pay attention to abnormal vibrations, noises, or temperature changes, and handle any abnormalities promptly.
Adjustment of Maintenance Intervals: For flanges operating in harsh environments, shorten the maintenance intervals. Anti - corrosion coatings or insulation materials can be applied to extend their service life.
Safety Precautions: When maintaining or repairing the 8 - word blind flange, strictly follow the safety procedures. Operate after depressurizing and emptying the media, and use appropriate protective equipment to ensure safety.
6. Future Trends of the 8 - Word Blind Flange
6.1 Research and Development of High - Performance Materials
The development of new high - performance materials is an important trend in the field of 8 - word blind flanges. Materials with higher strength, corrosion resistance, and heat resistance are being continuously developed to meet the needs of complex industrial applications. For example, advanced alloy materials and composite materials will show their advantages in extreme environments such as deep - sea oil and gas exploration and high - temperature chemical processes.
6.2 Rise of Smart Flange Technology
With the development of sensor technology and the Internet of Things, smart 8 - word blind flanges are emerging. These flanges equipped with sensors can monitor parameters such as pressure, temperature, and bolt tension in real - time, and transmit the data to a central control system to achieve predictive maintenance, improving safety and reliability and reducing maintenance costs.
6.3 Promotion of Standardization and Modularization
To improve the efficiency of production, installation, and maintenance, 8 - word blind flanges are moving towards standardization and modularization. Standardized designs facilitate selection, manufacturing, and replacement. Modularization allows for the quick assembly of flanges with different components to meet specific requirements. This trend also helps to reduce costs and improve product quality.
6.4 Integration of the Concept of Sustainable Development
With the global focus on sustainable development, the manufacturing of 8 - word blind flanges is moving in a more environmentally friendly direction. This includes the use of recycled materials, energy - efficient manufacturing processes, and the reduction of waste generation. Their design is also being continuously optimized to reduce energy losses during pipeline operation and achieve energy savings.
